24
3. Swing the seat back assembly into place so that its four
4. Insert four M10 x 15mm buttonhead screws through the
Assembling and Maintaining the RBK 615 Recumbent Exercise Bike
screw holes line up with the holes on the seat carriage
bracket, as shown in the following figure.

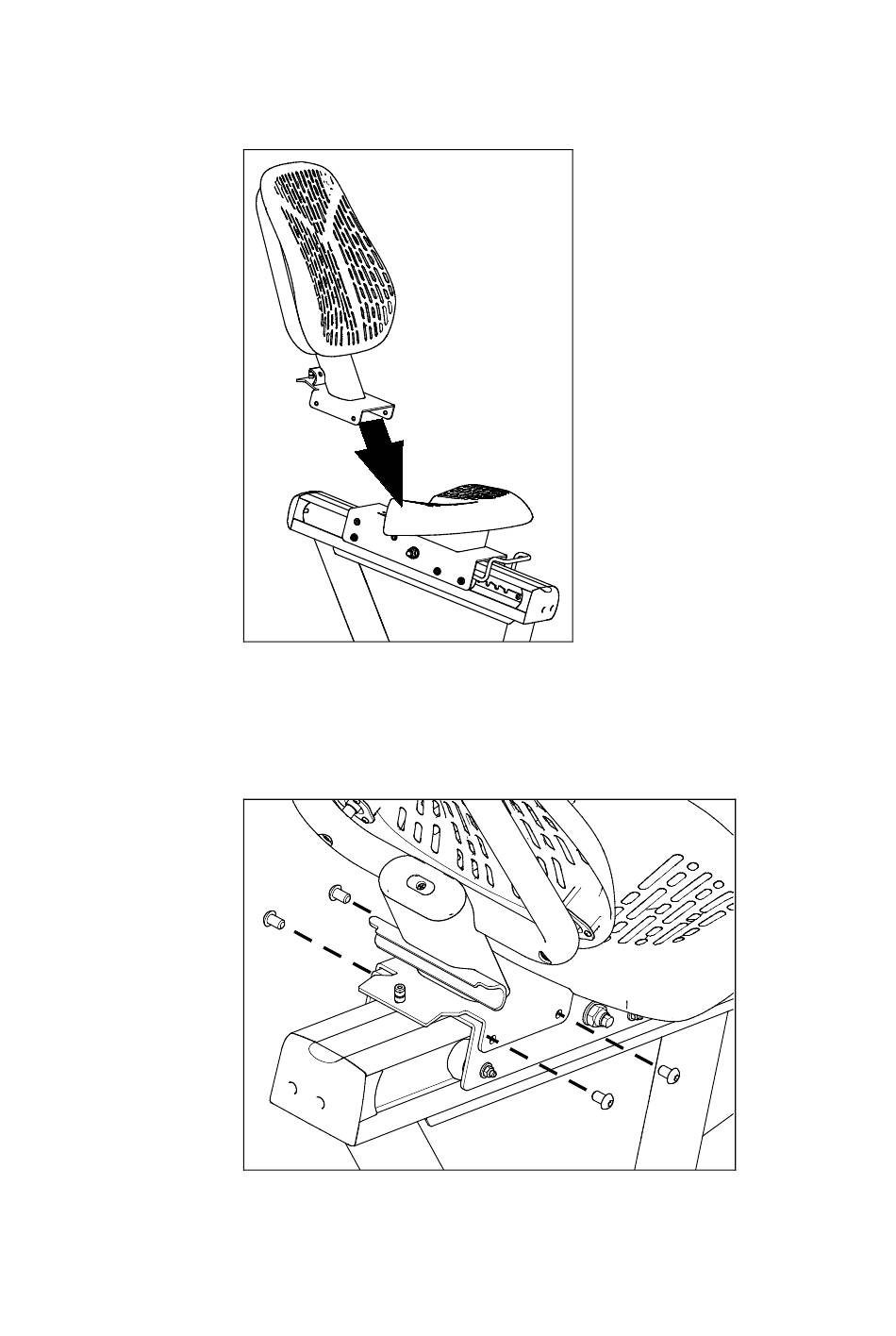

Figure 7: Positioning the seat back assembly
holes in the seat back assembly and thread them into the
seat carriage bracket, as shown in the following figure.
Figure 8: Attaching the seat back assembly
