Assembling the Exercise Bike
5. Adjust the position of the seat back, then tighten the
6. Connect the heart rate sensor cable in the handlebars to
7. Secure the handlebars in place using two M10 x 55 mm
screws completely using a 6 mm hex wrench.
the cable you passed through the seat back support
earlier, then position the handlebars in the handlebar
bracket as shown in the following figure. Feed any extra
cable back into the seat back support.

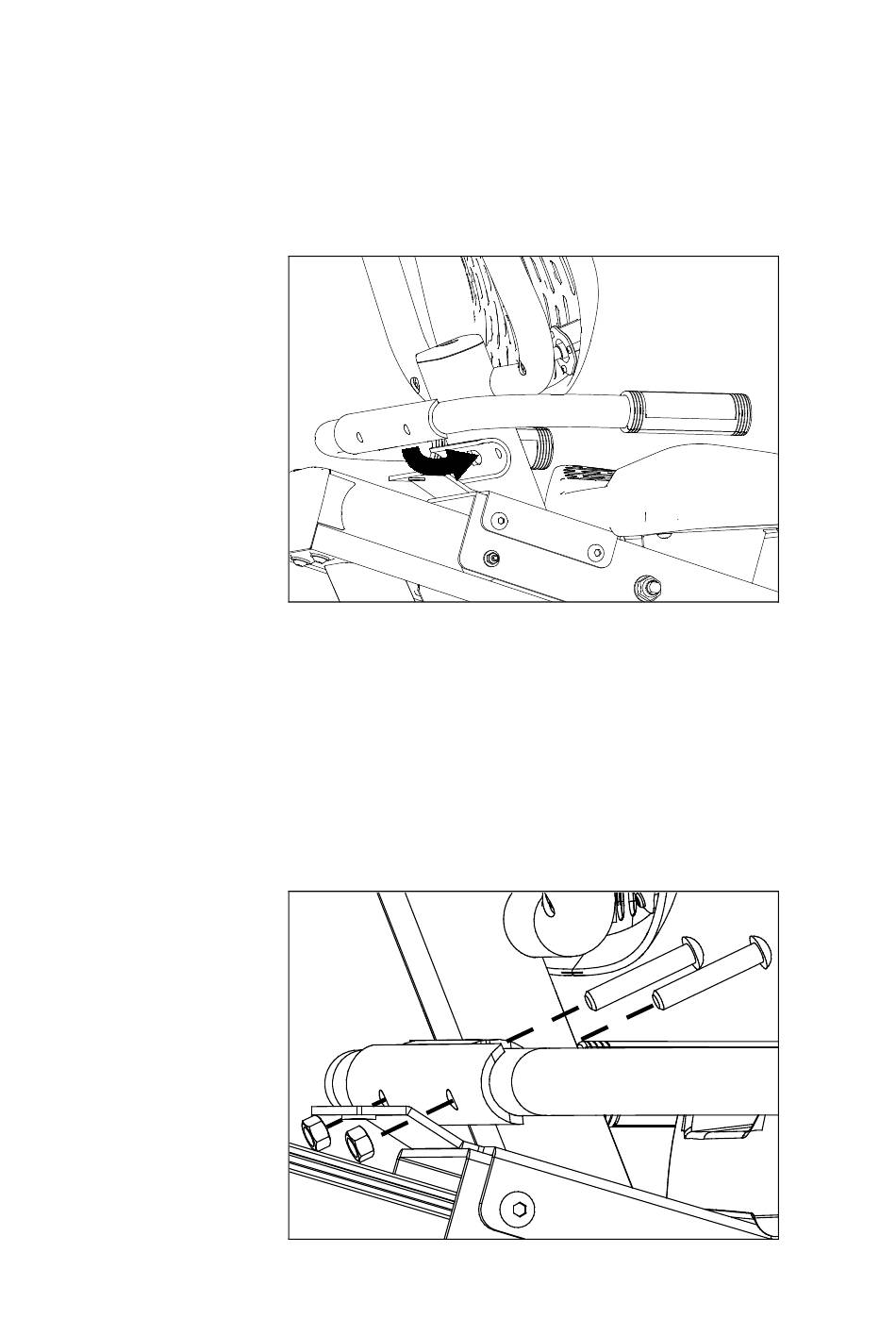

Figure 9: Positioning the handlebars
Important: In the following step, be extremely careful not to
trap or pinch the cable. Move the cable out of the way of the
screws if necessary.
buttonhead cap screws and two M10 hex nuts, as shown
in the following figure. Tighten the fasteners completely
using a 6 mm hex wrench and a 14 mm open-end, box, or
socket wrench.
Figure 10: Attaching the handlebars
25
