Assembling the Exercise Bike

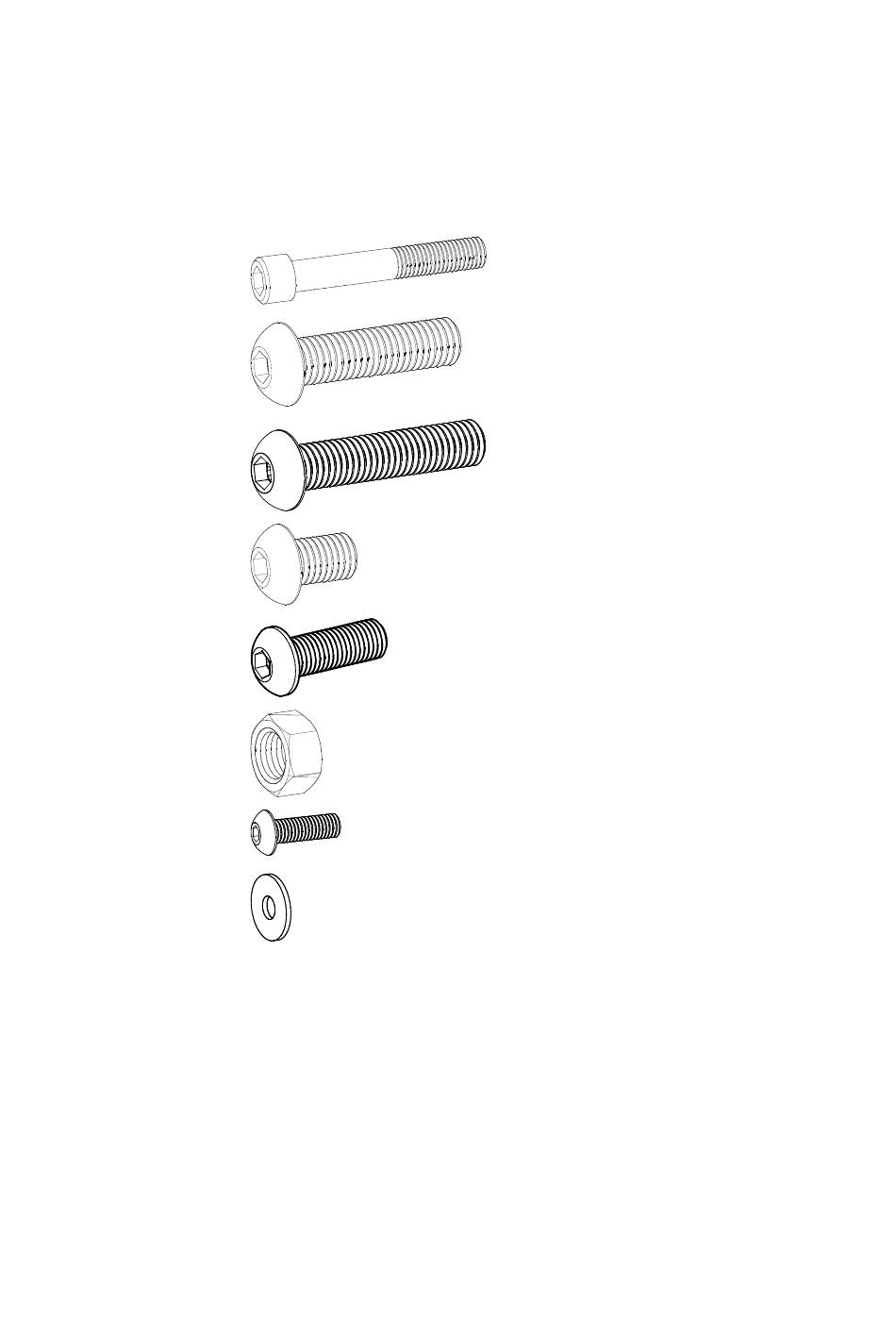

Hardware Kit (not to scale)

Before you begin the assembly, verify that the following
hardware items are packed with the equipment.
Fasteners
M12 x 80 mm sockethead
screw
M10 x 40 mm buttonhead
screw
M10 x 55 mm buttonhead
screw
M10 x 15 mm buttonhead
screw
¹₄-inch x ³₄-inch buttonhead
screw
M10 hex nut
M5 x 16 mm buttonhead
screw
5 mm flat washer
19
Quantity
2
4
2
4
4
2
1
1
