Main Assembly; Parts List - Regency Horizon HZ42 Série Guide D'installation Et D'utilisation

Part # description
1) 910-074 spark generator switch c/w Wire
2) 586-050 dc spark Mounting Bracket
910-073 spark generator Battery Holder
910-078 Battery aa
910-363 White Wall switch
910-366 White switch plate Wire
3) 596-008 Bottom cover ng / lp
4) 596-525 Burner assembly -ng
596-530 Burner assembly-lp
5) 596-574/p Valve assembly -ng
596-576/p Valve assembly-lp
6) 910-568 Valve 820
7) 910-008 pilot assembly - ng
910-009 pilot assembly - lp
8) 904-593 orifice # 40 (ng)
904-345 orifice # 53 (lp)
9) 948-484 slide Hinge
7
6

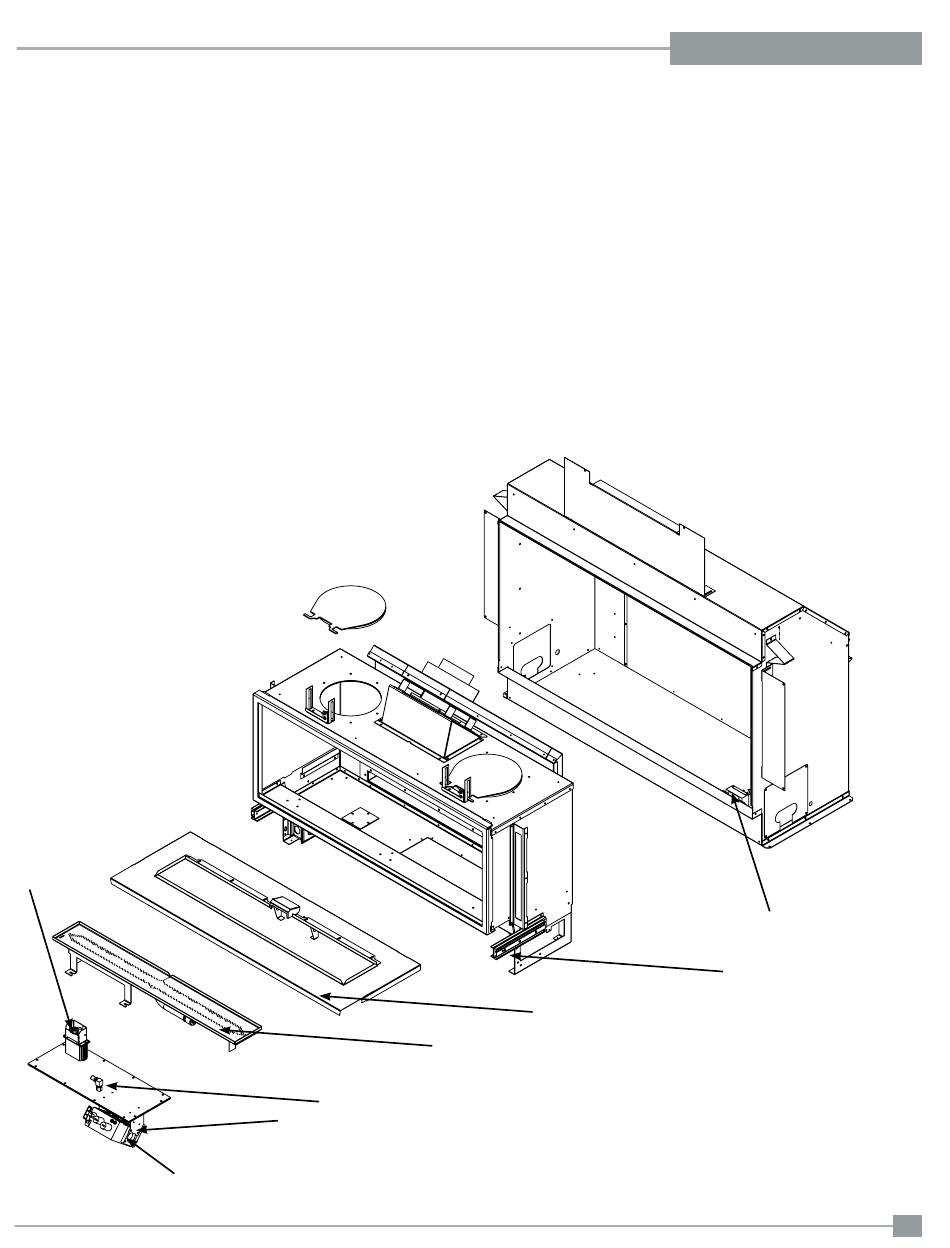

HZ42E Regency Horizon™ Gas Fireplace

MAIN ASSEMBLY

4
8
5
904-658 inlet gas Flex line ss
430-011 Flue collar gasket
596-047F Relief plate door
596-048 plate Relief gasket
596-089 Valve Tray gasket
430-011 inner Flue collar gasket
586-017F Flue Restrictor plate
586-016F gas line cover
596-068 Top nailing strip
596-045 side nailing strip
596 072 Bottom nailing strip
940-361/p Flush glass / c/w gasket
586-029 Flush glass Frame (shown on next page)
910-882 Wire (Valve to Burner on/oFF)
918-817 Manual
