WARNING!
Risk of injury and damage!
– Only set up the bath lift in bathtubs that
comply with the specifications of the following
table.
– If a lateral overflow is present in the bath
tub, use the special side flaps (available as an
accessory).

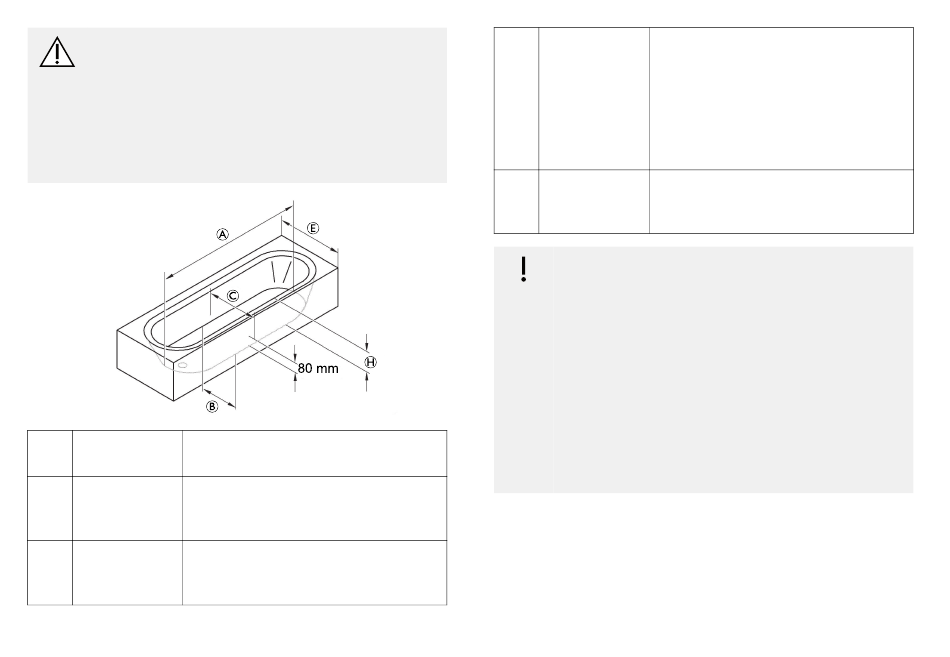

B
≥ 800 mm
Tub length,
A
bottom
Tub width, min. 280 mm
B
bottom
(inside)
Tub width, at ≥ 430 mm
C
80 mm height
(inside)
1574470-D
E
A
C
H
80 mm
Tub width 580 - 690 mm (with special side
E
(outside)
flaps)
700 - 740 mm (with standard side
flaps)
750 - 1000 mm (with special side
flaps)
Tub height ≤ 420 mm
H
(with height adapter, max. + 60
(inside)
mm)
IMPORTANT!
– Ensure that the suction cups are mounted.
– Ensure that the battery in the hand control is
charged.
– Ensure that the spindle foot is fully inserted.
– When lifting bath lift components, remember
to correctly assess the weights, see section 9.1
Dimensions and weight, page 24.
– If a handrail is mounted at the inside of the
bathtub, use the side flap diverters (available
as an accessory).
– Fold the side flaps outwards before raising the
backrest.
Setup
