Step 1: LCD monitor installation

In the first stage of the installation process, the Active Panel is installed as a monitor on your
system. As you work through the first stage of the installation process, please refer to the LCD monitor
cabling diagram on the following page when making cable connections.
Important: Do not connect the USB data cable until instructed to do so.
Turn off your computer.
Caution: Never connect or disconnect the video or power cables while your computer or pen
display are powered on – this can damage the LCD monitor or video card.
If your computer has only one analog (VGA) video connector, you will need to unplug your previous
monitor or add a second VGA card.
Plug one end of the VGA cable into the Active Panel. Plug the other
end of the cable into the VGA connector on your computer's video card.
See – A – in the connection diagram on page 11.
Be sure to tighten the thumbscrews on the connectors.
Connect the power adapter to the Active Panel. See – B – on the next page. Then connect
the adapter's power cable and plug the adapter into an AC outlet. See – C –
Installation
page 10

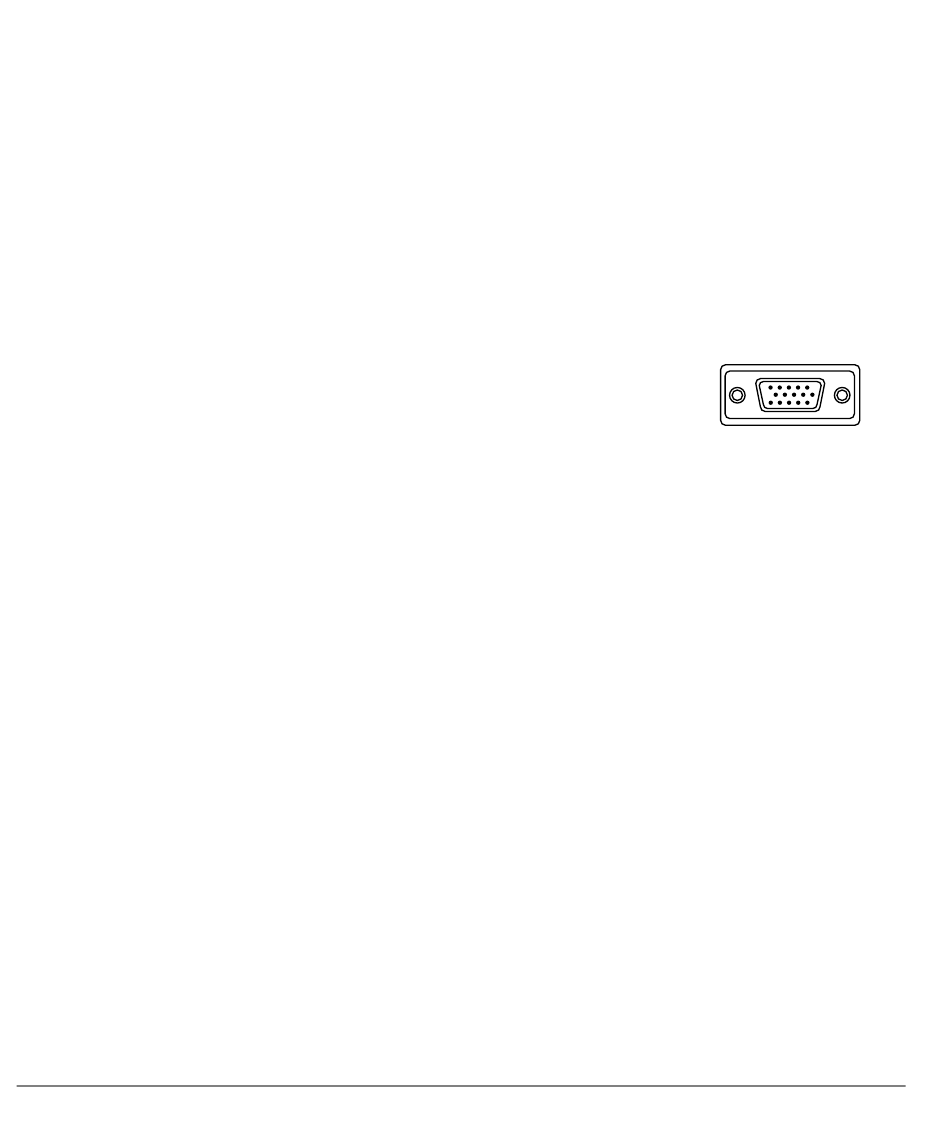

VGA connector
