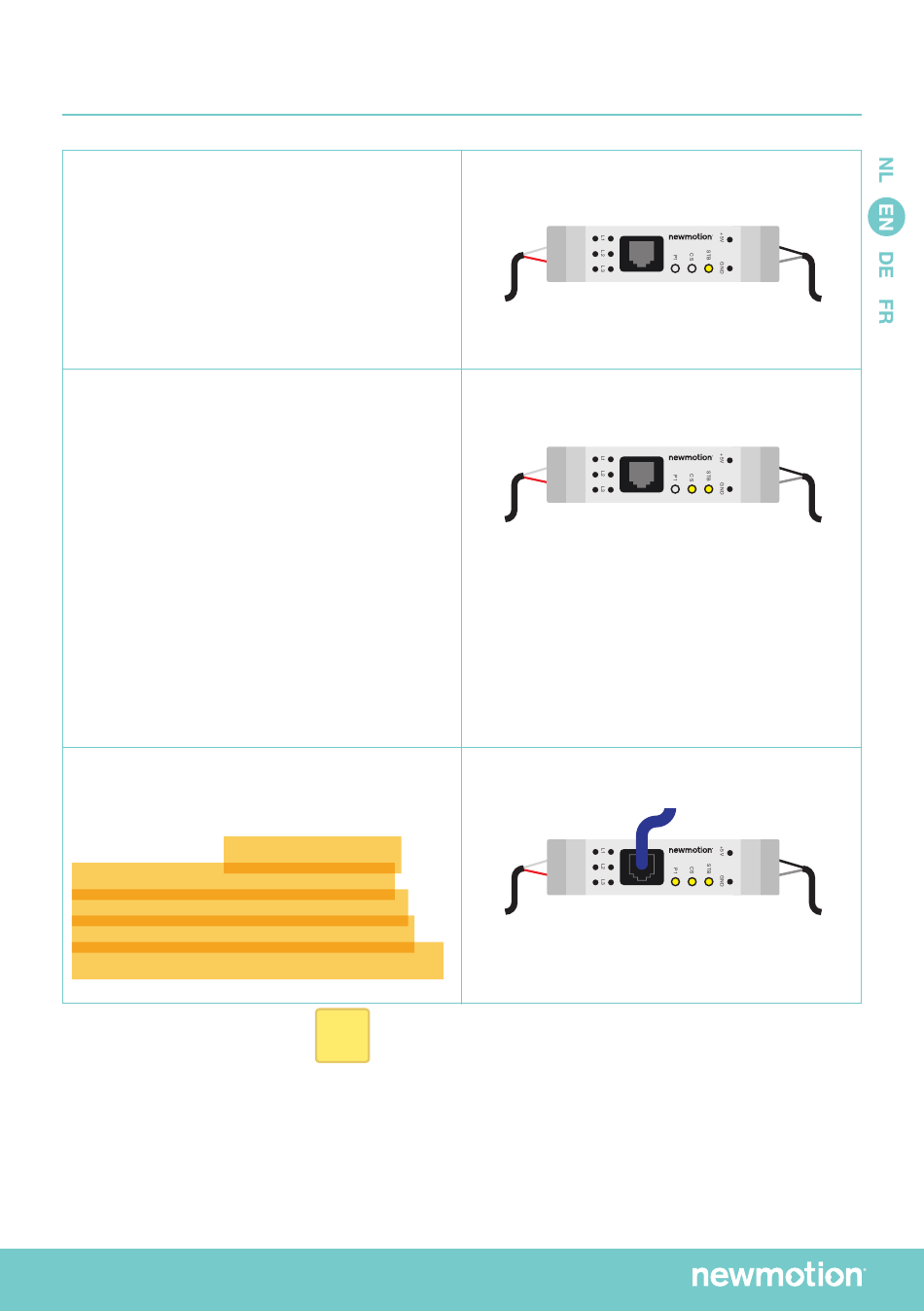

FUNCTIONALITY LED
PWR LED
The Power LED will light up from the
moment the device is put on power. If the
LED doesn't light up, it is advisable to first
check the power supply and if the power
adapter is connected correctly.
CS LED
The current sense LED displays the actual
current measured of the total power. The
+5V GND
LED will flash with a period of 1 second.
STB
CS
Hereby the LED will flash 20ms per
P1
Ampere cumulated current.
E.G. if the sum of the currents by L1, L2 and
L1 L2 L3
L3 is 10A, then this LED will lit 200ms every
second, and will be off 800ms. From a total
current >= 50A, the LED will be continuously
lit. To check if a current is being measured
the installer can use this LED.
P1 LED
The P1 LED will light up as soon as
the communication with a P1 device
becomes active. To have an working
communication it is needed that the
module is connected to a NewMotion
Home Advanced charge point with an
active P1 functionality, via an RJ12 cable.
