Product overview

The mechanical totalizer connects to the FL1500 flow logger and counts the total flow volume for one
flow channel. The user cannot set the mechanical totalizer to zero. Refer to the user manual for the
flow logger or FSDATA Desktop to operate the totalizer.

Product components

Make sure that all components have been received. Refer to Figure 1. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.

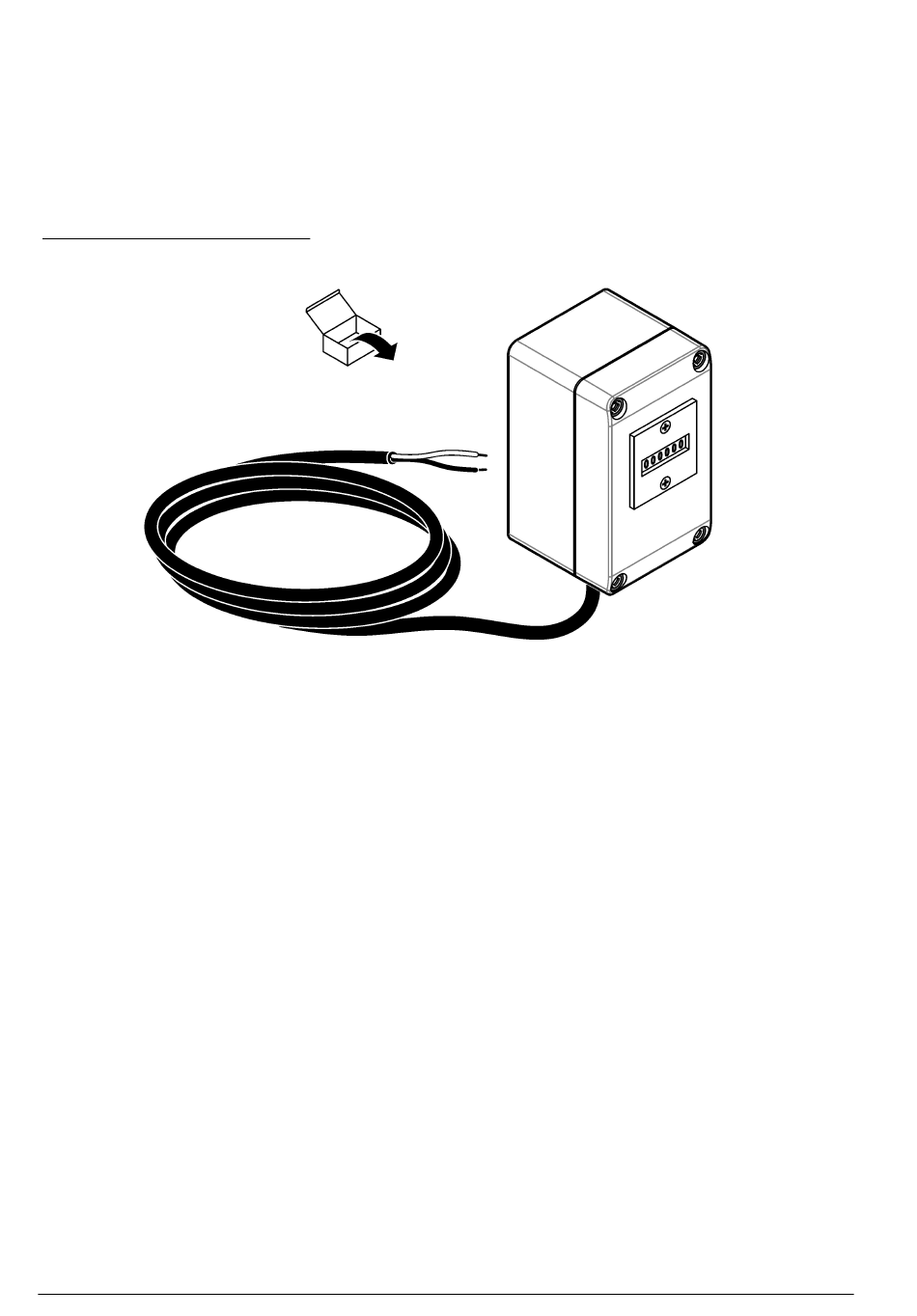

Figure 1 Product components
Installation
Mounting
Attach the instrument to a wall with user-supplied screws. Refer to the illustrated steps that follow. As
an alternative, attach the instrument to a rail or pipe with user-supplied hardware.
