6 Bench alignment

6.1 Static Alignment

½
*
Approx. 1/3
Build
Line
½
0-10mm
2/3

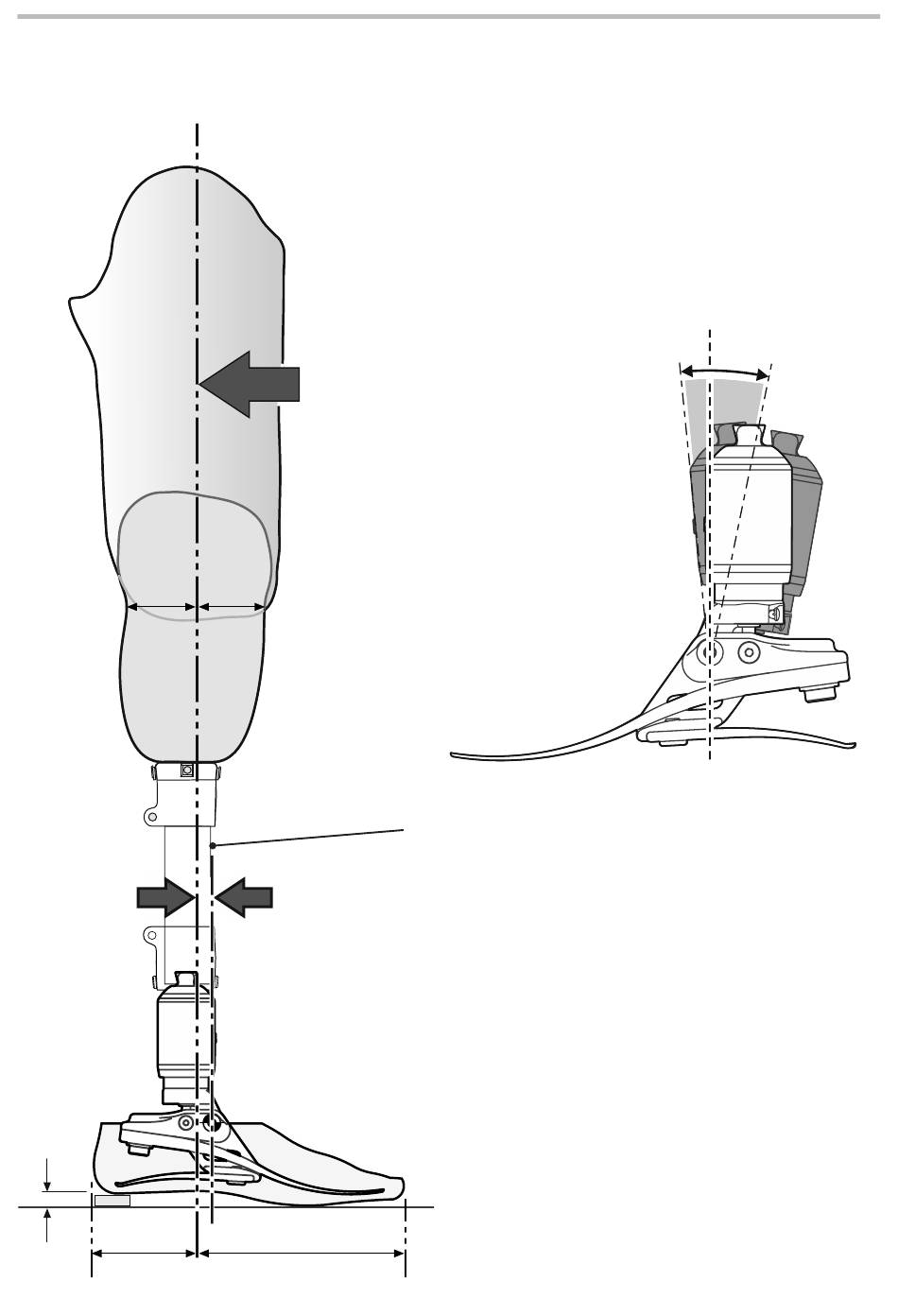

Align trans-femoral devices according to fitting
instructions supplied with the knee.
Keep the build line between pivots as shown, using
shift and/or tilt devices as necessary.
Tilt Setting
Align limb to
achieve range of
motion shown.
Cut shin to approximate length, allowing 10-15mm
for final trimming. Note trial length will typically
include 10mm to allow for axial compression of heel,
toe and spring (axial).
*
Allow for users
own footwear
6
3° 6°
