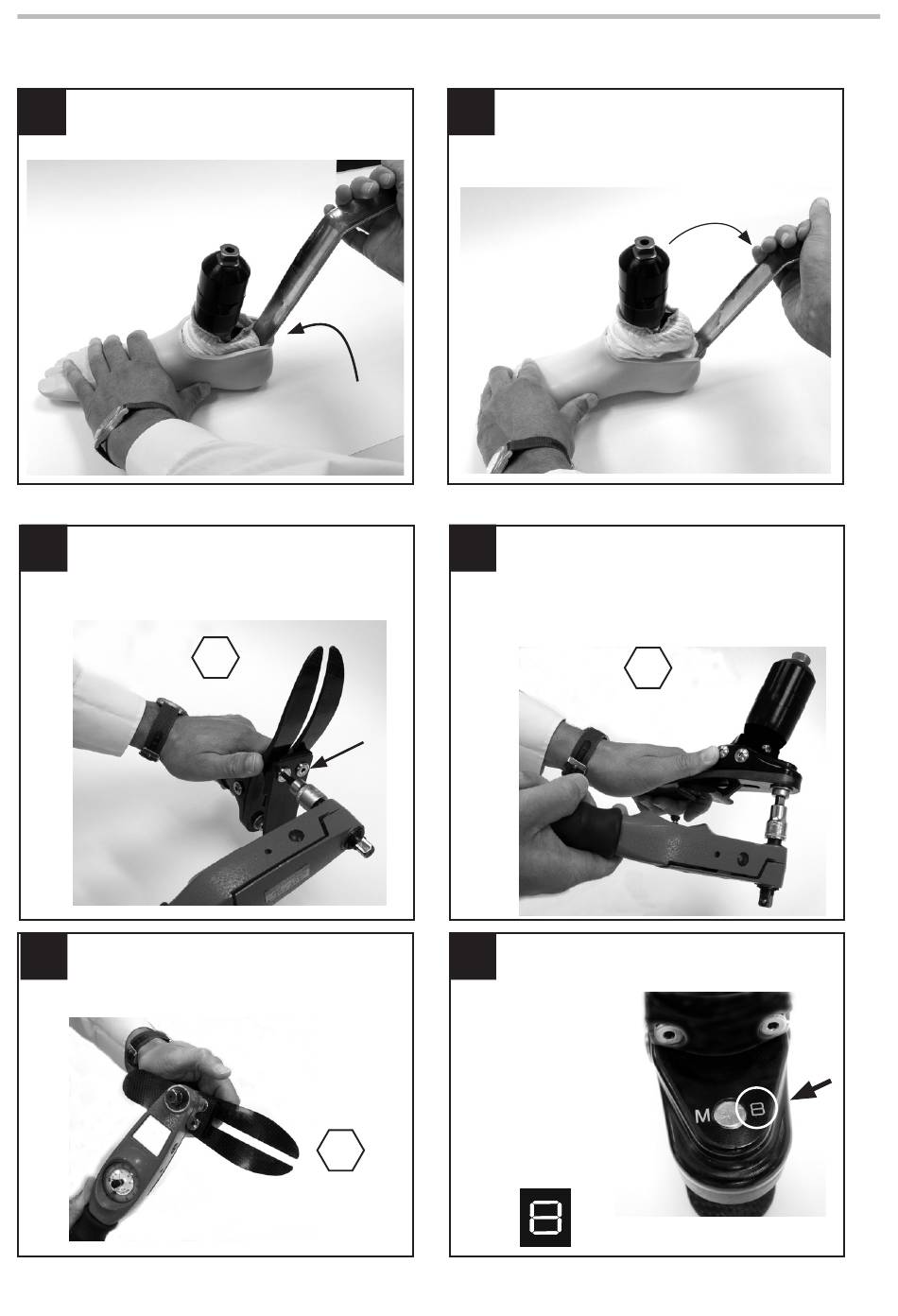

8 Maintenance Instructions:

1
Insert shoe horn behind heel spring
Heel & Toe Spring Replacement
3
Remove heel spring and screws.
5
Re-assemble with replacement heel
spring. Use Loctite 243 (926012) and
torque to 15Nm.
4
4
15Nm

Footshell removal

2
Rotate shoe horn as shown to
remove shell
4
Remove toe spring screw, replace toe.
Upon reassembly, use Loctite 243
(926012) and torque to 35Nm. Ensure toe
spring is central to the carrier.
6
C o v e r
appropriate lines
on carrier with
permanent black
marker to leave
springset
number showing
12
8
35Nm
