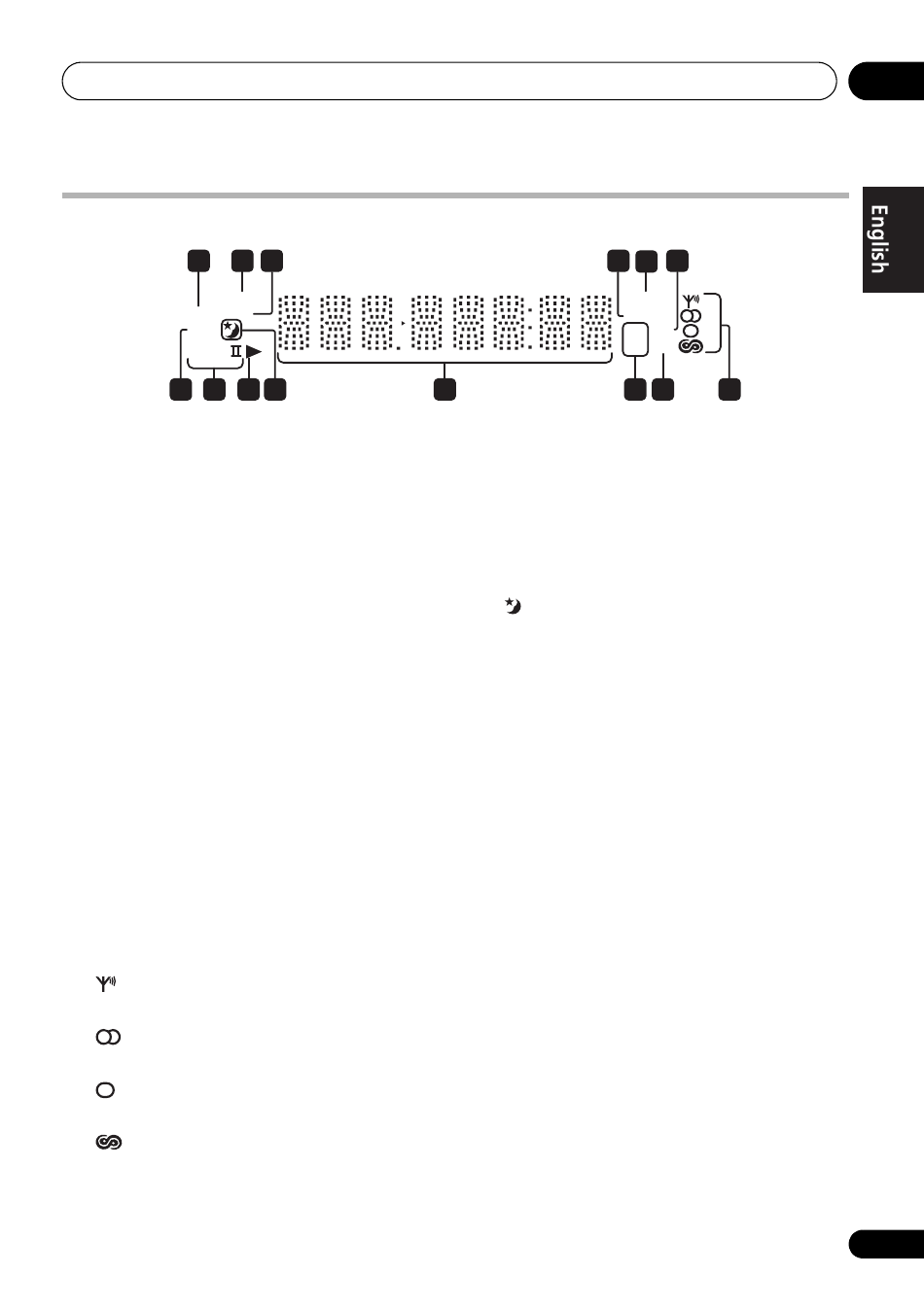

Controls and displays

Display

1 2
SOUND
DTS F.SURR.
2
D
2
PL
14 13
1 DTS
Lights during playback of a DTS source
(page 15).
2 SOUND
Lights when the Sound Retriever is active
(page 17).
3 SURR.
Lights when one of the Advanced surround
listening modes is selected (page 16).
F.SURR.
Lights when one of the Front Stage
Surround Advance mode is selected
(page 16).
4 RPT and RPT-1
RPT lights during repeat play. RPT-1 lights
during repeat one-track play (page 21).
5 REC MODE
Lights when Recording mode is on (page 35).
6 PGM
Lights during program play (page 20 and 22).
7 Tuner indicators
– Lights when a broadcast is being
received.
– Lights when a stereo FM broadcast is
being received in auto stereo mode.
– Lights when FM mono reception is
selected.
– Lights when in one of the RDS
display or search modes.
3
12 11 10
8 RDM
Lights during random play (page 21).
9 kHz/MHz
Indicates the frequency unit shown in the
character display (kHz for AM, MHz for FM).
10 Character display
11
Lights when sleep timer is active (page 40).
12 
Lights during playback.
13 2 PL II
Lights during Dolby Pro Logic II decoding
(page 15).
14 2 D
Lights during playback of a Dolby Digital
source (page 15).
4 5 6
REC MODE
RPT -1
kHz PGM
MHz RDM
