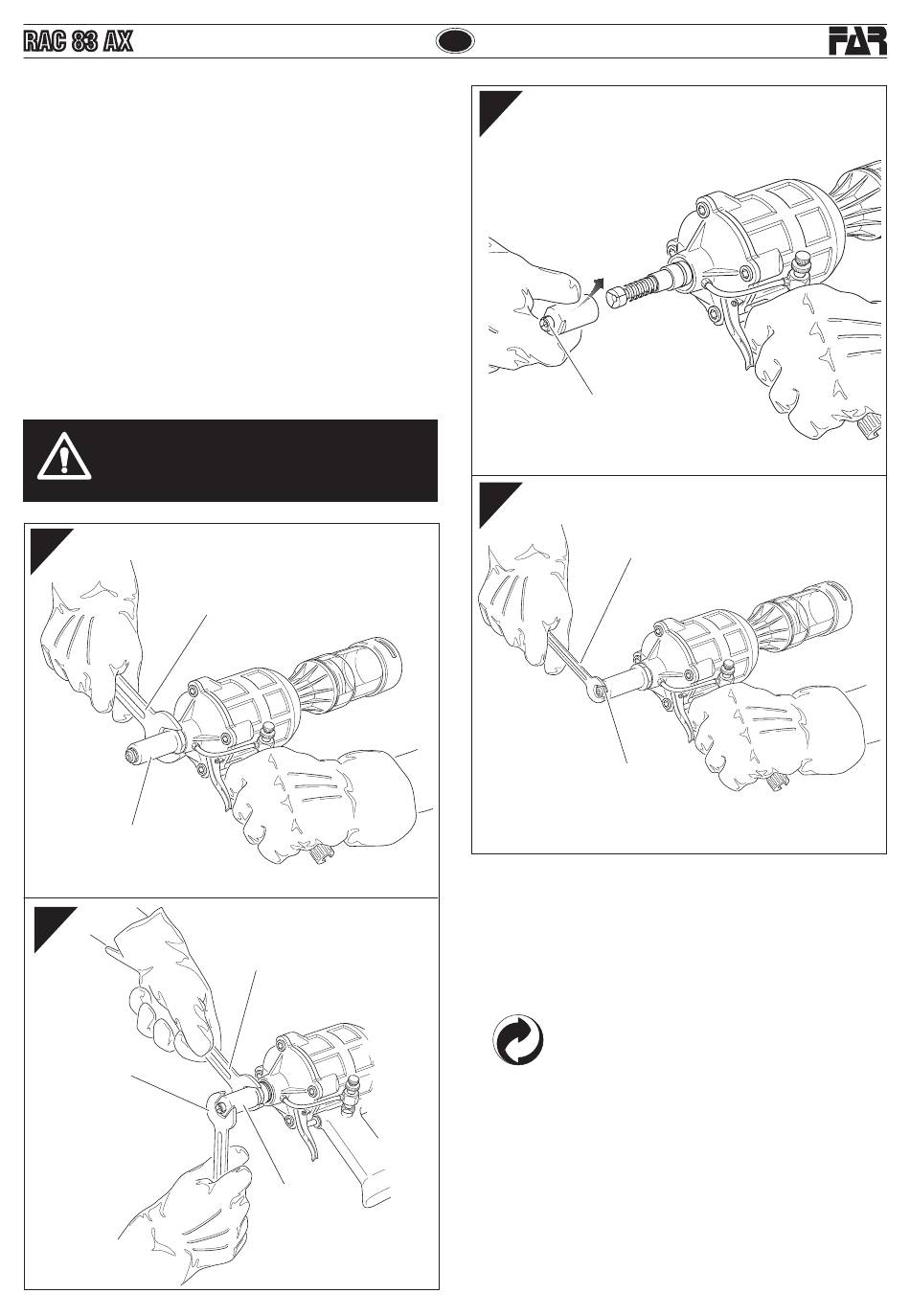

MAINTENACE AND CHANGE OF SIZE (fig. f3-f4-f5-f6)
The extended utilization of the riveting tool can cause the slipping
of the clamps on the nail due to the deposited impurities.
For this reason, it is necessary to lubricate the clamps after
having cleaned them . However, if clamps are worn out and
as a consequence their working is jeopardized, replace them.
First remove the head which carries the nozzle (A), by means
of a standard spanner of 27 mm. Then, by using two standard
spanners of 15 mm and 16 mm, remove the chuck (B) and
extract the clamps (C).
When replacing the nozzle (D), we recommend to use a 12-mm
standard spanner and fit the removed nozzle in the proper
housing located on the bottom of your riveting tool, in order
to avoid losing the nozzle.
WARNING!
Desconnect air feed when performing those
operations.
f1tt
f3
A
f4
16 mm
27 mm
15 mm
B
750301 - RAC 83 AX – rev 09 - ( 04-2019 )
GB
f5
C
f6
12 mm
D

DISPOSAL OF THE RIVETING TOOL

Follow the prescriptions of the national laws for
disposing of the riveting tool.
Af ter disconnec ting the tool from the
pneumatic system, disassemble and split all
the components according to the material:
steel, aluminium, plastic material, etc.
Then proceed to scrap the materials in
accordance with current law
