5.1. USE OF THE INSTRUMENT WITH MASTER UNITS
•
The power supply voltage of the instrument must be:
230/240V ± 10% (207V ÷ 265V) or 110V ± 10% (100V ÷
120V). Do not use external power supply voltages
external from the above ranges to avoid damaging the
instrument
•
Check that the rated operating voltage value
indicated on the back label should be consistent with
the power supply voltage of the system under test

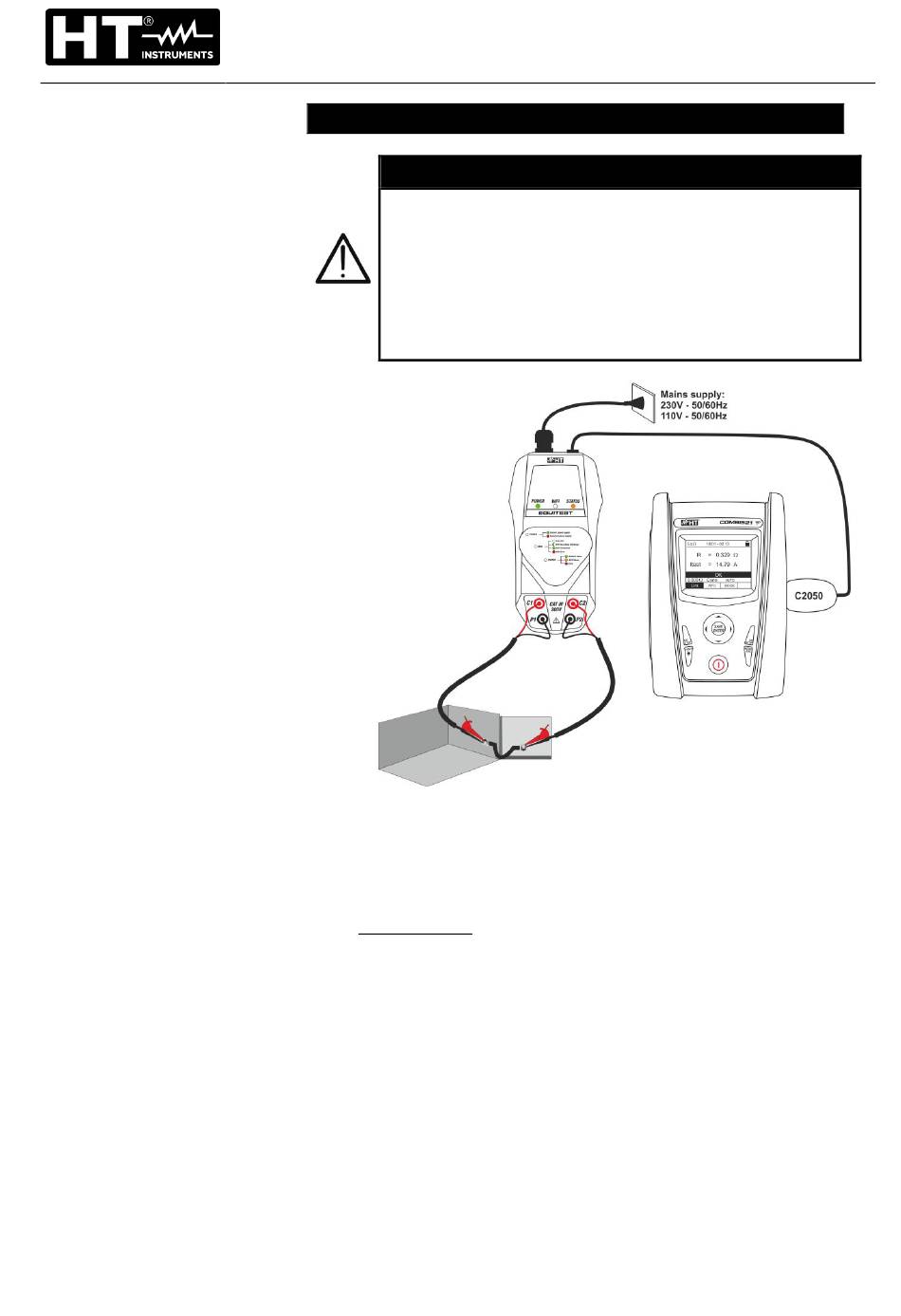

Fig. 3 Using the instrument with MASTER unit
1.
Connect the instrument to the power supply using the supplied
network cable (see Fig.1 - part 10). The POWER LED is steady
green to identify the correct power supply voltage, the STATUS
LED is steady green to identify the operation of the instrument
in Manual mode (see user manual of the MASTER instrument)
and the WiFi LED is on in green flashing color to identify that
the instrument is trying to make (if available) a WiFi connection
with an external mobile device via the HT Equitest APP (see §
5.2) and has no functionality in the connection with the MASTER
instrument
2. Connect the instrument to the MASTER instrument (see Fig. 3)
by using the C2050 cable supplied (see Fig. 1- part 1)
3. Check the correct detection of the instrument on the MASTER
instrument (see relevant user manual)
4. Connect the two black cables of the C7000 cable set to the
input sockets P1 and P2 and the two red cables to the input
sockets C1 and C2 (see Fig. 3)
5. Connect the alligator clips of the C7000 cable set to the ends of
the object under test (see Fig. 3)
6. Press the GO/STOP key on the MASTER instrument to activate
28
CAUTION
EQUITEST
