1
Hand protection

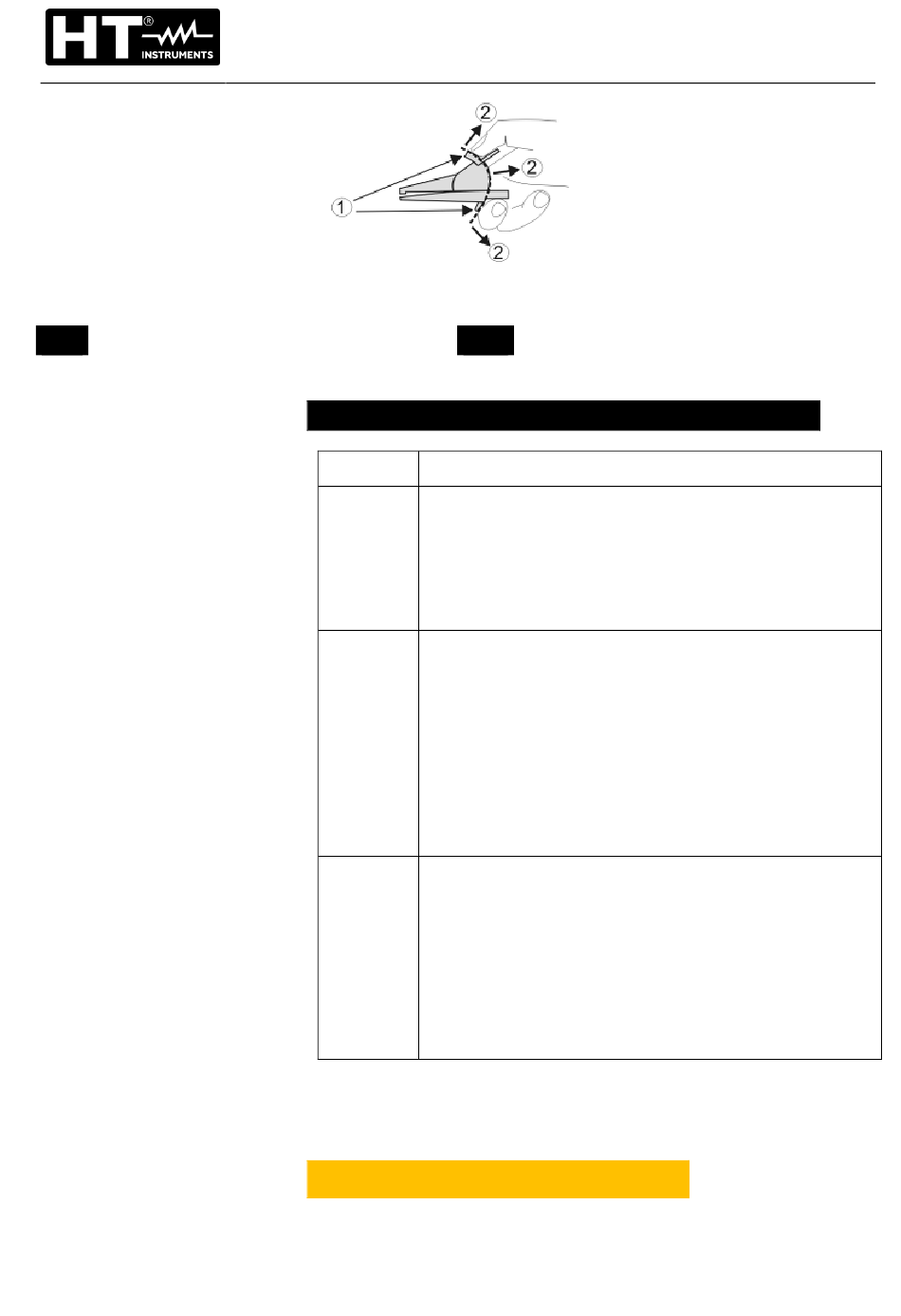

Fig. 2 Description of measuring leads
4.3. STATUS DESCRIPTION OF LED INDICATORS
LED
This LED identifies the power on status of the
instrument. The following situations are possible:
POWER
➢ Off → instrument not powered
➢ Green → instrument powered with correct voltage
➢ Red → instrument powered with incorrect voltage
This LED identifies the connection status of the internal
WiFi module. The following situations are possible:
➢ Off → no WiFi connection
➢ Green steady → WiFi connection active
WiFi
➢ Green flashing → instrument waiting for WiFi
connection
➢ Red → internal WiFi module malfunction (contact
the HT after-sales service)
This LED identifies the type of measurement performed
in connection with the MASTER unit (see relevant user
manual) or independently. The following situations are
possible:
STATUS
➢ Green → operation in Manual mode
➢ Orange → operation in Autotest mode
➢ Red → there are connection errors (contact the
after-sales service)
Table 1 : Description of the status of the indicator LEDs
5. OPERATING INSTRUCTIONS
27
2
Safe area
DESCRIPTION
