LEGRAND Wattstopper Instructions D'installation

No: 24982 – 12/16 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: WRC-15-x/WRC-20-x
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
READ & SAVE THESE INSTRUCTIONS! CAUTION:
• To prevent severe shock or electrocution, always
turn power OFF at the service panel before
working with wiring.
• Use this device with copper or copper-clad wire.
Do not use with aluminum wire.
• Must be installed in accordance with National
and Local electrical codes.
WARNING: IMPROPER WIRING OF ANY
ELECTRICAL DEVICE CAN CAUSE SERIOUS
INJURY OR DEATH. THESE WIRING DEVICES
SHOULD BE INSTALLED BY AN ELECTRICIAN OR
OTHER QUALIFIED PERSON.

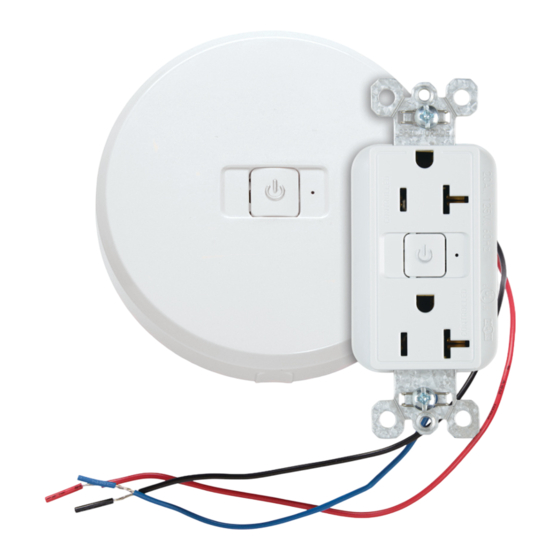

The Radio Frequency (RF) Plug Load Controller expands the energy savings obtained from traditional occupancy sensing to
encompass AC receptacles as well as built-in lighting. We accomplish this by providing an RF transmitter (WRC-TX or WRC-TX-LM)
that connects to your new or existing occupancy sensor, and a switched AC receptacle (WRC-15-x, WRC-20-x) that contains a built-in
RF receiver. When the RF Signal Pack receives a "vacancy" signal from the sensor, it transmits a message commanding the receptacle
to turn off. Similarly, when the office becomes occupied, the sensor sends a signal to the RF transmitter and the receptacles turn on.
Each RF Signal Pack can control up to 16 RF receptacles. A switched feed through allows for control of downstream receptacles from a
single RF receptacle. Recommended communication range between RF Signal Pack and RF Receptacle is 30 feet. Greater distances
can be achieved in ideal environments.
1. After removing power as described above, use strip gauge on back of outlet to strip all wires to desired length (if not already stripped).

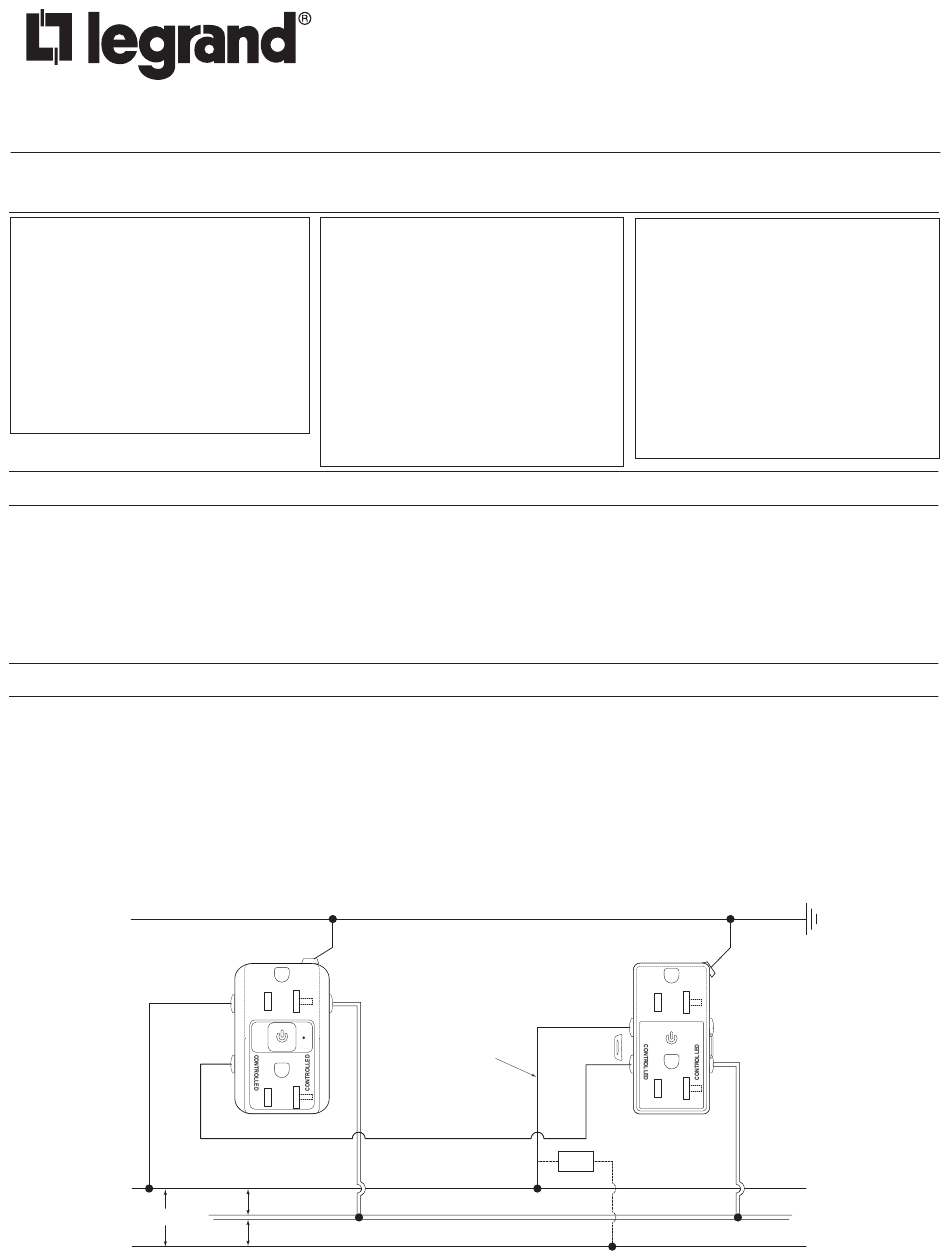

2. Attach wires according to the diagram below. Be sure the wires are fastened securely, either by the terminal screws or through the
back-wire holes in the back of the outlet.
WARNING: LOOSELY FASTENED WIRES MAY RESULT IN OUTLET FAILURE AND/OR FIRE HAZARD.
If using terminal screws: Terminal screws accept up to #12 AWG wire. Wrap each stripped wire 3/4 turn clockwise under heads
of screws without overlapping, and tighten securely.
If using back-wire method: Back-wire accepts up to a #12 AWG wire. Insert stripped wire between external pressure plate clamp
and terminal. Tighten securely.
3. Mount outlet in box using mounting screws supplied. Attach wall plate. Restore power only when finished wiring the entire circuit.
Brass Screw
Brass Screw
250V
Figure 1
Wattstopper
Radio Frequency (RF) Plug Load Controller
Commande de charge de prise à fréquence radio (RF)
Controlador para cargas comunes con alimentación CA de radiofrecuencia (RF)
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
LIRE ET CONSERVER CES INSTRUCTIONS.
ATTENTION
• Pour éviter tout choc électrique ou une électrocution,
coupez toujours l'électricité au niveau du panneau
d'alimentation avant de commencer à câbler.
• Utilisez ce dispositif avec des fils en cuivre ou
cuivrés. Ne l'utilisez pas avec des fils en aluminium.
• Doit être installé conformément aux codes locaux et
nationaux de l'électricité.
AVERTISSEMENT: LE CÂBLAGE INCORRECT DE
TOUT DISPOSITIF ÉLECTRIQUE PEUT CAUSER
DES BLESSURES GRAVES, VOIRE LA MORT.
CES DISPOSITIFS DE CÂBLAGE DOIVENT ÉTRE
INSTALLÉS PAR UN ÉLECTRICIEN OU UNE
PERSONNE QUALIFIÉE.
RECEPTACLE INSTALLATION INSTRUCTIONS
Green or Bare Wire
Green Screw
White Screw
Not required if both
faces are controlled
15A or 20A
Controlled
Line
125V
Neutral
125V
®
DESCRIPTION
Brass Screw
or
LEA Y GUARDE ESTAS INSTRUCCIONES.
PRECAUCIÓN:
• Para evitar serios electrochoques o electrocución,
siempre APAGUE el suministro eléctrico en el
panel de servicio antes de trabajar con los cables.
• Utilice este dispositivo con alambres de cobre o
revestidos de cobre. No usar con cables de aluminio.
• Se debe instalar de acuerdo con los códigos
eléctricos nacionales y locales.
ADVERTENCIA: EL CABLEADO INCORRECTO DE UN
DISPOSITIVO ELÉCTRICO PUEDE CAUSAR LESIONES
GRAVES O AÚN LA MUERTE. UN ELECTRICISTA U
OTRA PERSONA COMPETENTE DEBE INSTALAR
ESTOS DISPOSITIVOS DE CABLEADO.
Green Screw
White Screw
15A or 20A
