Measurement Range
Voltage Range: 20 V to 1000Vrms
Current Range: 2A to 600Arms

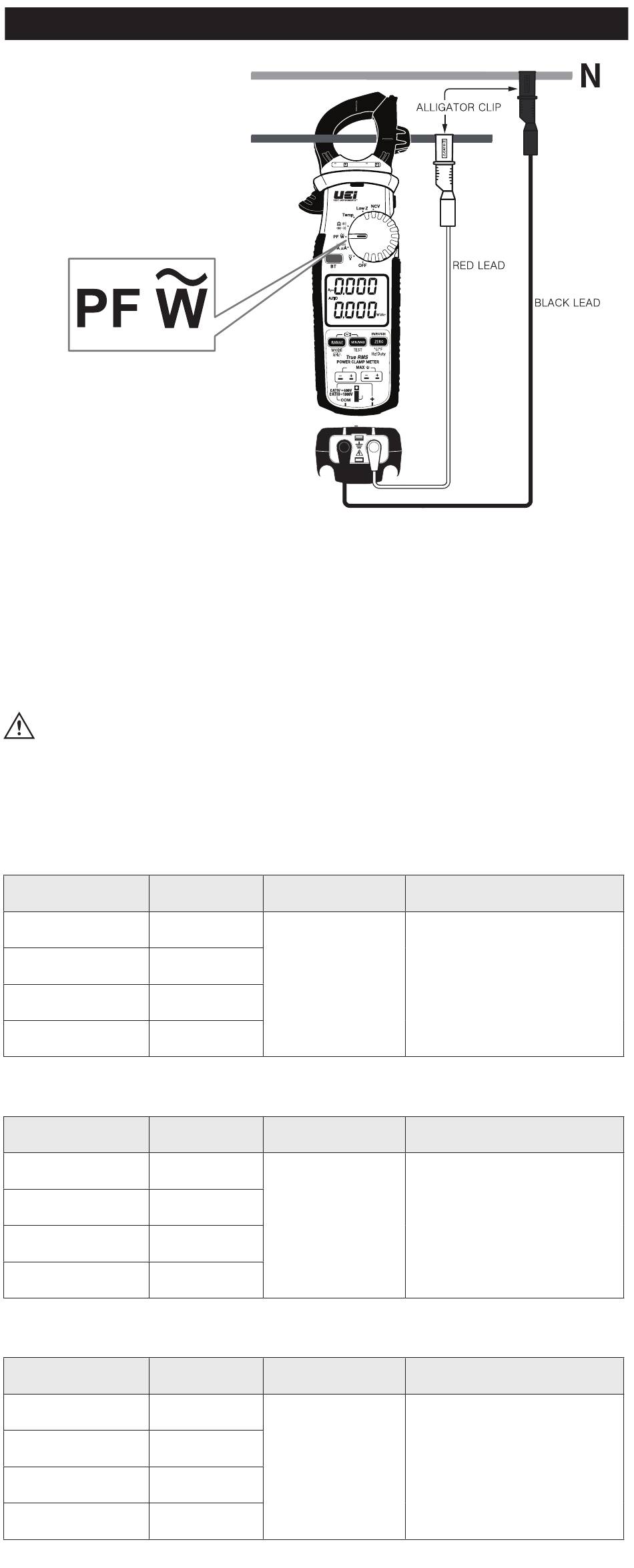

1. Rotate Selector Dial to PF/W.
2. Press Select Button to place in the W (VA or VAr) range.
3. Connect the Black and Red Test Leads to COM and Volt input terminals,
respectively.
4. Secure the Jaw around the current carrying conductor being tested to
ensure good contact between the closing surfaces of the Jaw.
Connect the Test Lead to the circuit under test and read the value displayed on
the Lower Display.
WARNING
• The maximum input voltage for the AC voltage range is 1000V RMS.
To avoid risk of electric shock or damage to the equipment, do not measure
voltages exceeding 1000 V RMS.
Active Power (W)
Range
3600W
36.00KW
360.0KW
600.0KW
Apparent Power (VA)
Range
3600VA
36.00KVA
360.0KVA
600.0KVA
Reactive Power (VAr)
Range
3600VAr
36.00KVAr
360.0KVAr
600.0KVAr
WATT MEASUREMENT
Resolution Accuracy
1W
0.01 KW
2.5% + 10 digits
0.1KW
0.1KW
Resolution Accuracy
1VA
0.01 KVA
2.5% + 10 digits
0.1KVA
0.1KVA
Resolution Accuracy
1VAr
0.01 KVAr
2.5% + 10 digits
0.1KVAr
0.1KVAr
CAT IV CAT IV
600V 600V 600A 600A
DL599 DL599
A
Temp
µA
V
SELECT SELECT
Low Z
BT
A
AUTO
V
True RMS
30V 30V
T T
T T
2 2
1 1
TEMP TEMP
Overload Protection
Overload Protection
Overload Protection
16
1000V RMS
1000V RMS
1000V RMS
