Measurement Range
Voltage Range: 20 V to 1000Vrms
Current Range: 2A to 600Arms
1. Rotate Selector Dial to PF/W
2. Connect the Black and Red Test Leads to COM and Volt input terminals,
respectively.
3. Secure the Jaw around the current carrying conductor to ensure good
contact between the closing surfaces of the Jaw.

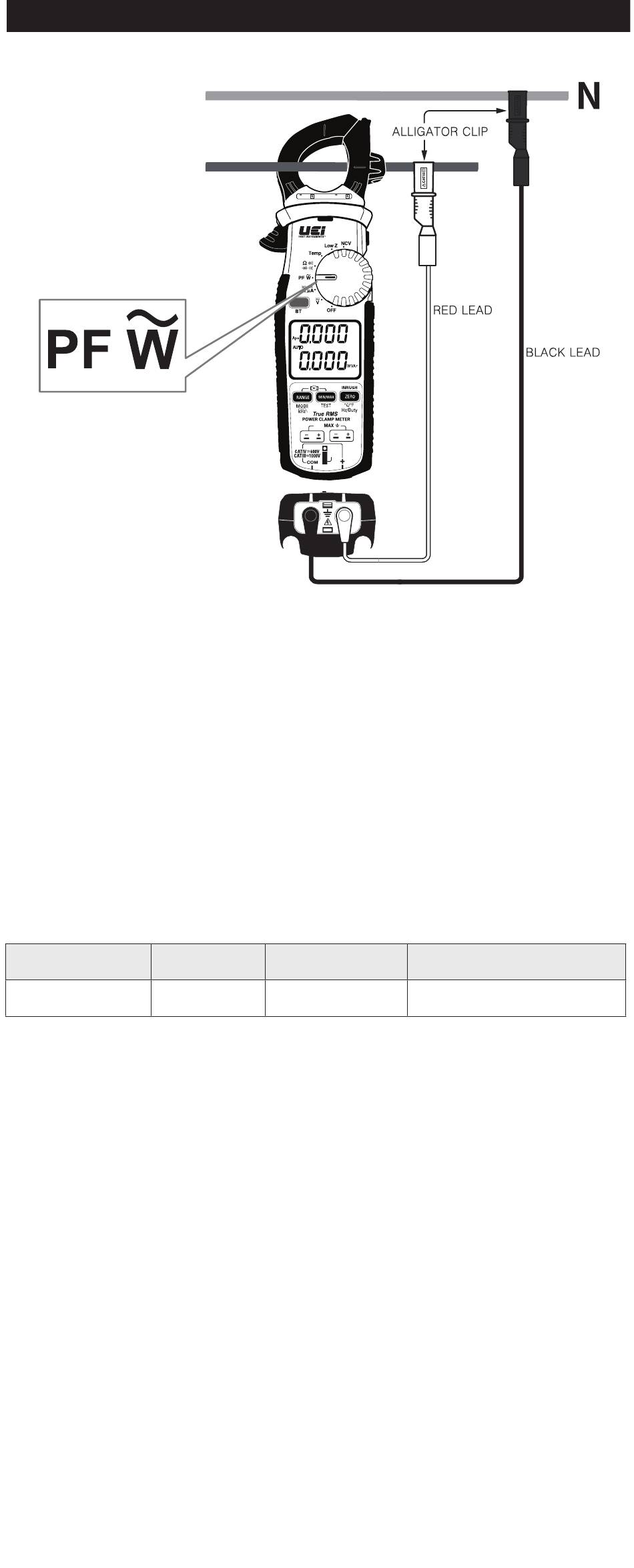

4. Connect the Test Lead to the circuit under test. (See previous picture.)
5. Read the value displayed on the Upper Display.
6. Lagging / Leading Power Factor is displayed as a plus or minus value in the
Upper Display.
Power Factor Measurement
Range
-0.3 ... 1.0 ... 0.3
Power Factor
Resolution Accuracy
0.001 2.5% + 8 digits
