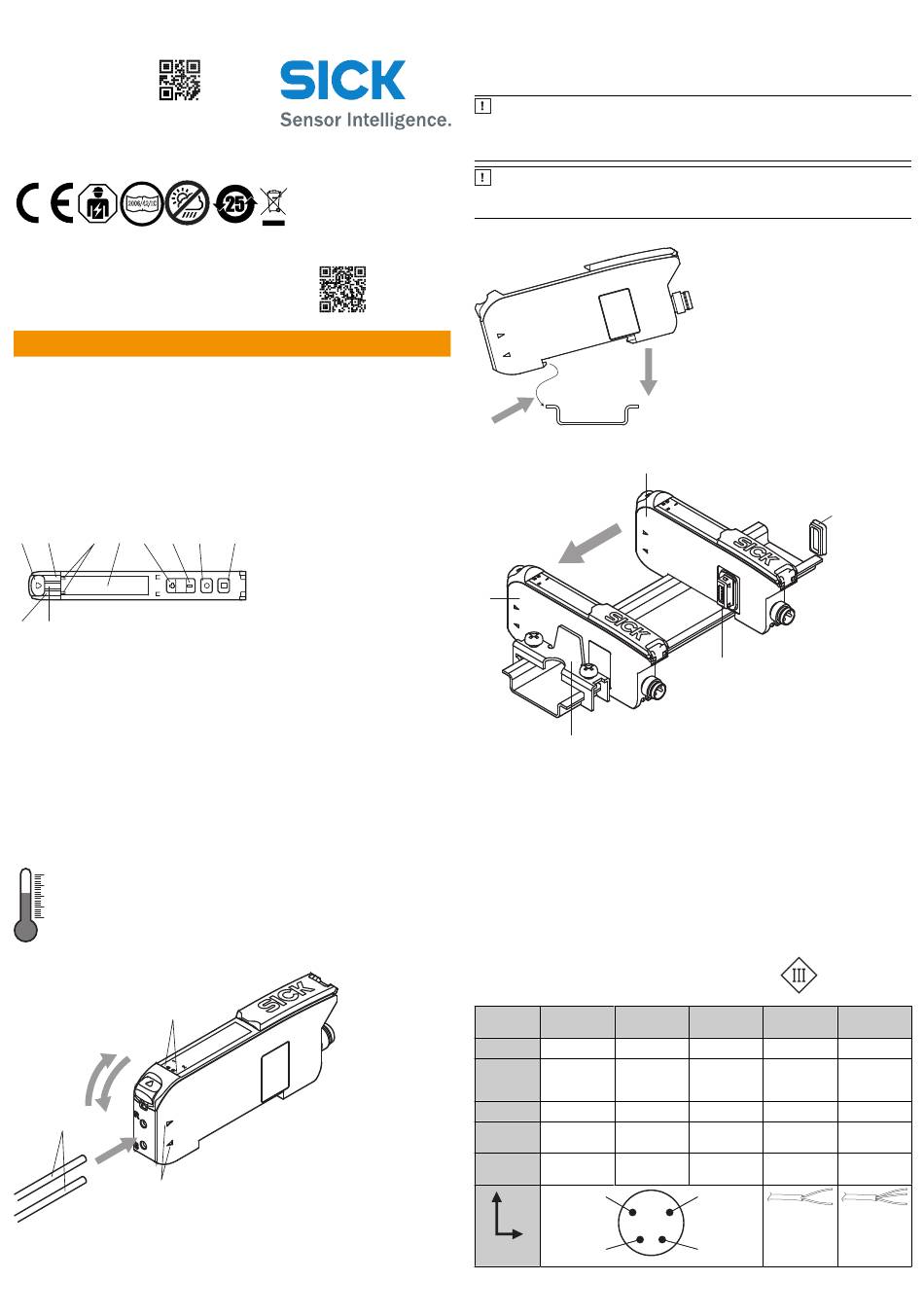

SICK WLL80 Guide Rapide

8027404.1N1K/2024-04-17
SICK AG
Erwin-Sick-Straße 1
DE-79183 Waldkirch
www.sick.com
WLL80
NO
2006/42/EC
SAFETY
UL Environmental Rating: Enclosure Type 1.
Q U I C K S T A R T
These instructions are only valid in connection with operating instructions
8026879. You can find the operating instructions at www.sick.com.
There may be additional commissioning-related requirements for WLL80-xxxxxSxx
devices. These can be found in the operating instructions.
Connection, mounting, and configuration may only be performed by trained spe‐
cialists.
Not a safety component in accordance with the EU Machinery Directive.
Do not install the sensor in places exposed to direct sunlight or other weather
conditions unless this is expressly permitted in the operating instructions.
1 Operating and status indicators
1 2 5 6 7 8
1
S
R
2
4 3
1 Fiber optic interlock
2 Yellow LED: Status of received light beam Q1
3 Green LED: supply voltage active, IO-Link communication
4 Yellow LED: Status of received light beam Q2
5 Indicator for correctly inserted fibers
6 Display
7 + 8 +/- button
9 Menu / OK pushbutton
ß Teach-in / escape pushbutton
2 Mounting
2.1 Ambient temperature, operation
–25°C ... +55 °C
–13°F ... +131 °F
2.2 Connecting fibers
6
3
1
4
2
5
8027404.1N1K/2024-04-17/de, en, es, fr, it, pl, pt, ru
Operating Instruction
8026879:
9 ß
OK ESC
MENU TEACH
1.
Open the fiber locking mechanism 1.
2.
Insert the fibers 4 into the openings provided (see receiver and sender
symbol on the housing) 2+5 as far as they will go (check the indicator for
correctly inserted fibers 6).
3.
Close the fiber locking mechanism 3.
NOTICE
When using a fiber optic proximity variant with a coaxial fiber arrangement,
connect the single-core optical fiber to the sender. Connect the multi-core
optical fiber (fiber bundle) to the receiver.
NOTICE
For WLL80I variants with infrared transmitted light (wavelength 880 nm or
1450 nm), a fiber with a glass fiber core material must be used.
2.3 Mounting the sensor
e n
1
2.4 Expanding the bus modules
2
4
1.
Mount the 2 base unit on the mounting rail.
2.
Mount the 4 end piece on the mounting rail directly behind the base unit.
3. Close the female connector of the expansion unit using the protective cover
3.
4. Mount the expansion unit 1 on the mounting rail.
5.
Push the expansion unit against the base unit 2 until the female connector
of the base unit and the bus male connector 5 of the expansion unit make
firm contact.
3 Electrical installation
The sensors must be connected in a voltage-free state.
3.1 DC
Stand-alone device: U : 12 ... 30 V DC
B
Base unit + expansion unit: U
WLL80- x2xxxxxZxx
xxxxx
1 = BN + (L+)
2 = WH MFIO
(default:
Q2 / QL2)
3 = BU - (M)
4 = BK Q1 / QL1/C
(IOLink)
5 = GY -
3
4
2
1
5
: 12 ... 24 V DC
B
x2xxxxxMx x2xxxxxExx xFxxxxxExx
xxxxxx xxxxx xxxxx
+ (L+) n. c.
MFIO MFIO MFIO
(Default: Q2) (Default: Q2) (Default: Q2)
- (M) n. c.
Q1 Q1 Q1
- -
1
0.18 mm
2
3
xGxxxxxEx
xxxxxx
- -
MFIn (Default:
Teach-in)
- -
Q1
- MFOut
(Default: Q2)
2 0.18 mm 2
WLL80 | SICK 1
