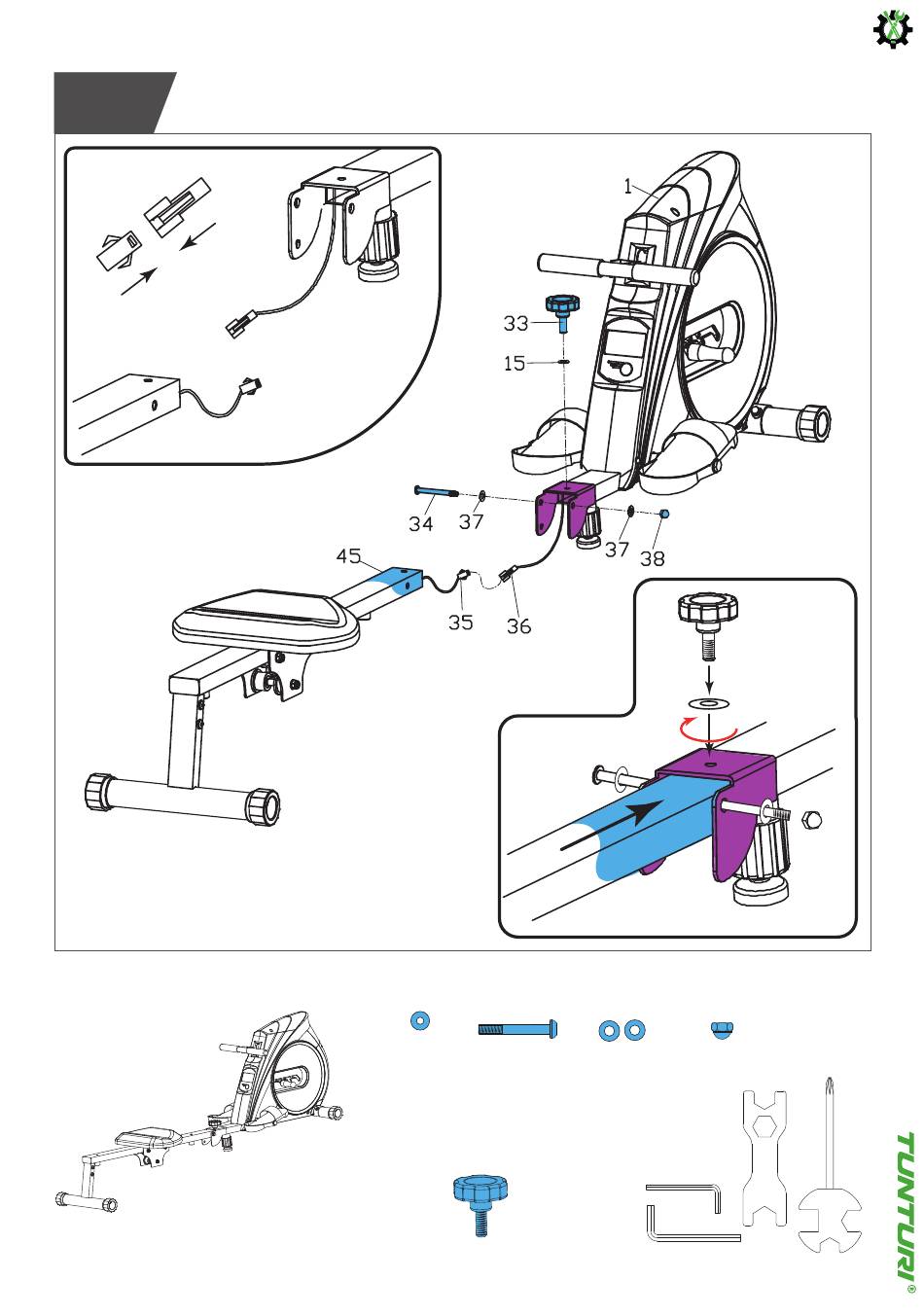

D-6
#5 Arc Washer
#4 Bolt M8x 65
(Ø8x Ø20 xT1.5)
#15 Flat washer #34 Bolt M10 x80
Ø8x Ø19x T1.5
#48 Bolt M6x 15
#46 Screw M8x 16
#40 Adjustable
foot pad #33 Bolt (knob)
1 1
"Model name"
#6 Spring #7 Nut M8
washer Ø8
#8 Bolt Ø12.5x130
#37 Flat washer #38 Nut M10
Ø10x Ø20x T1.5
#49 Sprint Washer Ø6 #50 Flat Washer Ø6
#41 Cushion pad
#9 Flat washer
Ø13x Ø26x T2.0
