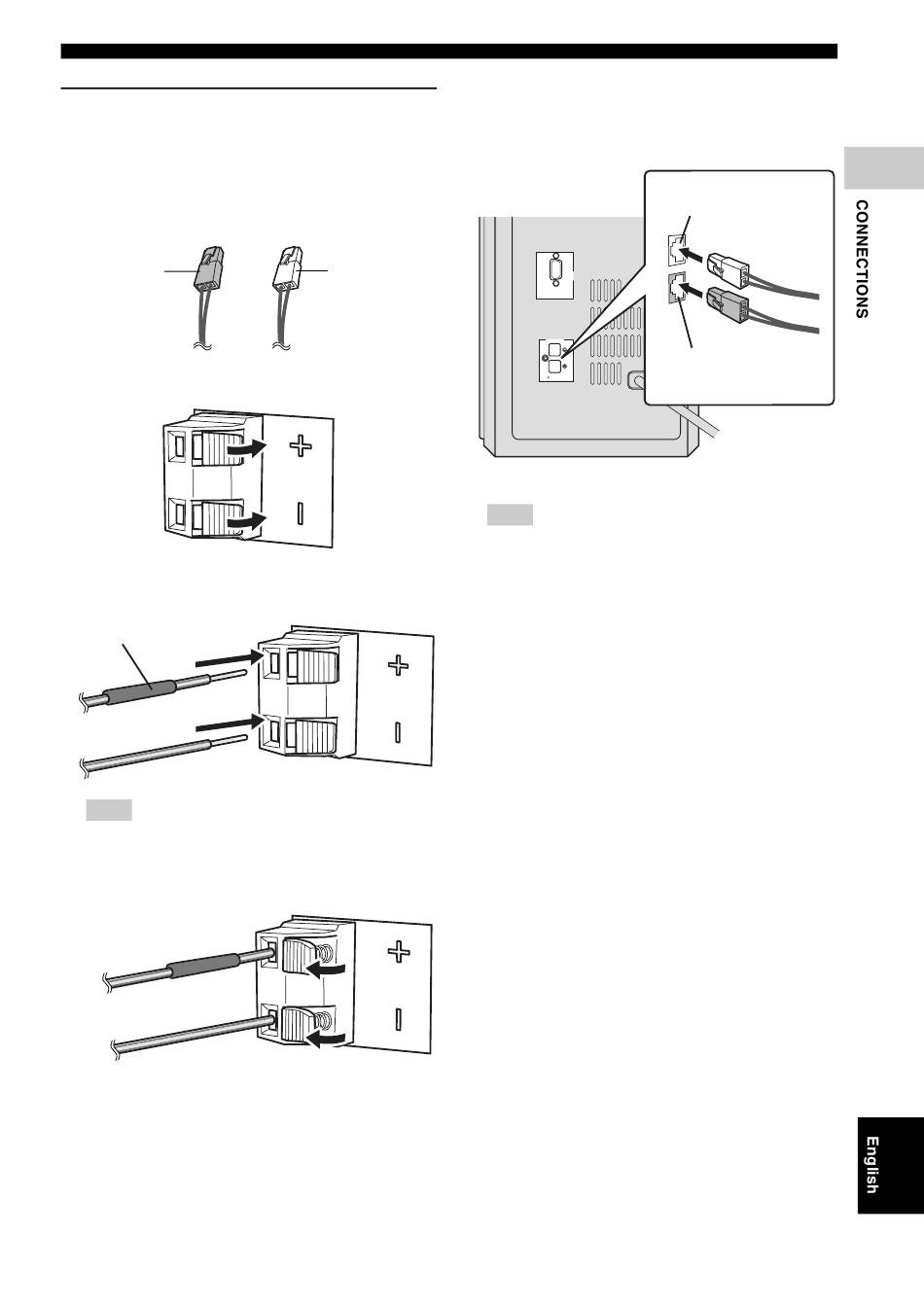

Connecting the speakers and
subwoofer/system control
Connecting the speakers
Confirm the plug colors of the speaker cables.
– Speaker cable with white plug: for speaker (L)
– Speaker cable with red plug: for speaker (R)
for speaker (R):
Red plug
1 Push down the knob of the speaker terminal.
2 Insert the stripped speaker cable into the hole on the
speaker terminal.
Red tube
Note
Connect the cable with red tube to the positive
terminal, and the other cable to the negative terminal.
3 Release the knob of the speaker terminal.
Connecting the subwoofer/system control
1 Insert the speaker cable plug until you hear a click
sound.
for speaker (L):
White plug
Note
Make sure that the cable plugs are connected to the
subwoofer/system control terminals of the same color.
2 Use the same procedure to connect the other speaker
cable.
SYSTEM CONNECTIONS
from speaker (L)
SYSTEM
CONNECTOR
DVR-700
SPEAKERS
from speaker (R)
SPEAKER IMPEDANCE
: 6 MIN.
MAINS
2
15
En
