fadini Elpro X Notice D'instructions page 17

GB
X

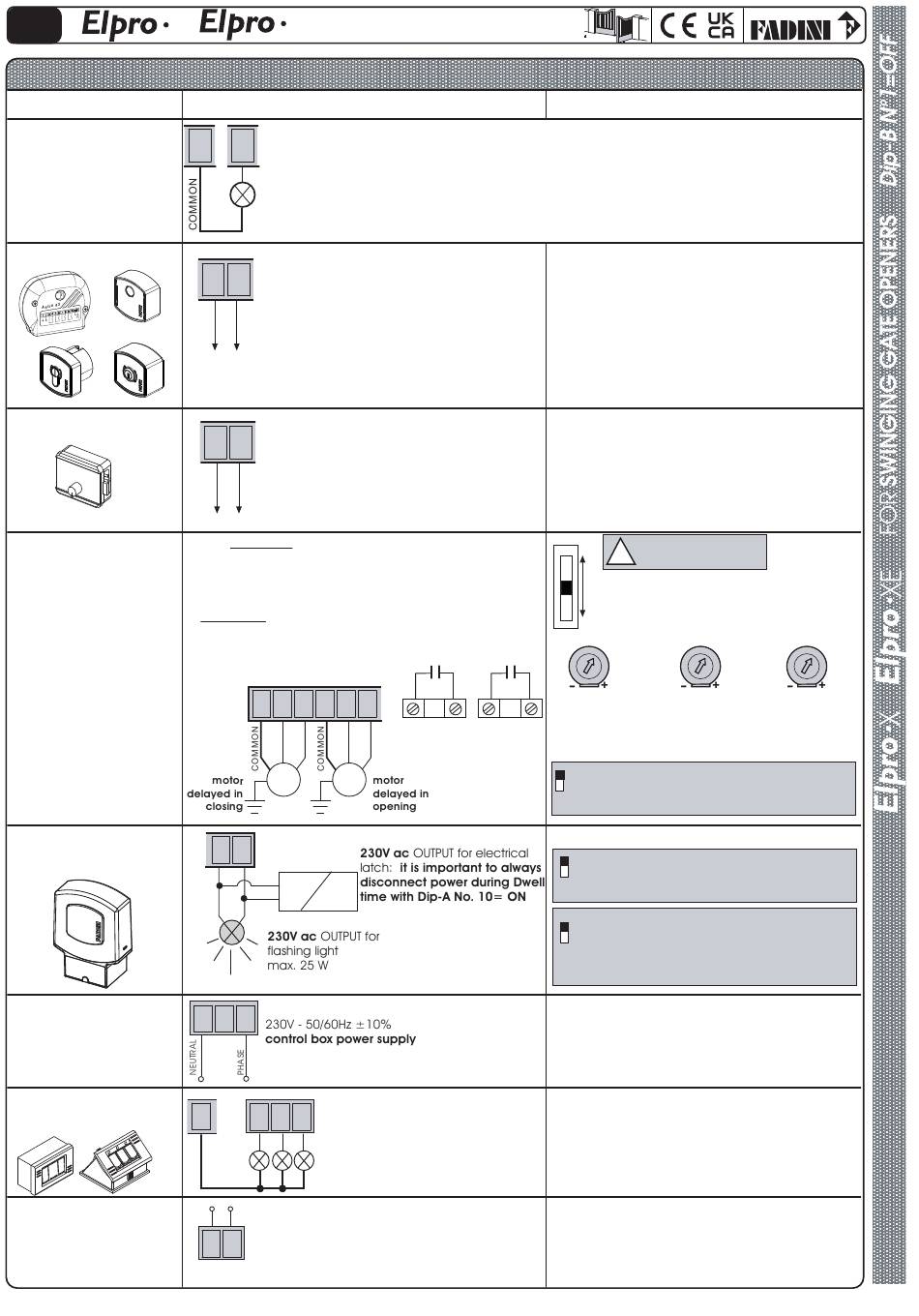

ELECTRICAL CONNECTIONS TO TERMINALS FOR SWINGING GATE OPENING – Dip Switch B No. 1 = ON
Accessory
24V signal lamp
Output - max 3W:
24V Output:
Electrical lock:
Single-phase 230V
motor and capacitor
power supply:
Electrical latch and
230V Flashing lamp:
230V Control box
power supply:
Connections to
Pulin 3 LEDs:
24Vdc - 5W Output:
XE
UNIVERSAL ELECTRONIC CONTROL BOXES
230V 50/60Hz SINGLE-PHASE
Electrical connections
Output for a 24V max 3W signal lamp
3 11
showing the state of the automation:
Signal lamp On = Gate open
Signal lamp OFF = Gate closed
0.5s (fast) flashing = closure movement
1s (normal) flashing = opening movement
24V ac OUTPUT for max load:
12 13
No. 2 pairs of photocells
No. 1 radio receiver
No. 1 LED Chis 37 / Chis E37 Keyswitch
All instructions are attached to the related
control accessories
12V AC output for max 15VA
14 15
electrical lock
The electrical lock must be
mounted on the gate of the
delayed closure M1 motor
If only one motor is installed:
1) Connect the power supply to the terminals of motor M1
2) Exclude the wing opening delay Dip-A No. 8=ON
3) Set the Gate Delay Trimmer to the lowest in closing cycle
If two motors are installed:
The gate opening delay is set at 2s, if required it must be
enabled with Dip-A No. 8 = OFF
16 17 18 19 20 21
16 19 20
17 18
M1 M2
22 23
24 25
24 25
terminal board for
3 28 27 26
28 27 26
connecting the Pulin 3
push-button panel Leds
+ -
29 30 24V dc – 5W OUTPUT
29 30
21
C1 C2
Capacitor Capacitor
Motor M1 Motor M2
Dip-Switches and LED signals of the various functions
Only ELPRO XE
!
FORCE ADJUSTMENT:
Adjust the Force necessary to move the gates
by the torque selector. Beacause of the inertia
of the gates, too much force is incorrect in
accordance with EN 12445 and EN 12453
safety standards. This can be dangerous!
OPEN/CLOSE
DWELL TIME
MOTOR RUN TIME
0s - 220s
0-120s
DIP-SWITCH-A N°8
ON: Eliminate gate opening delay
OFF: A 2s gate opening delay is active
8
DIP-SWITCH-A N°4 e N°10
ON: Pre-flashes prior to opening
OFF: no pre-flashing
4
ON: Deactivated during the Dwell time,
Automatic mode (with Dip 3=ON)
10 OFF: Supplied with power in dwell time
Automatic mode (with DIP 3=ON)
GATE DELAY
CLOSING: 0-10s
