Control and display panel

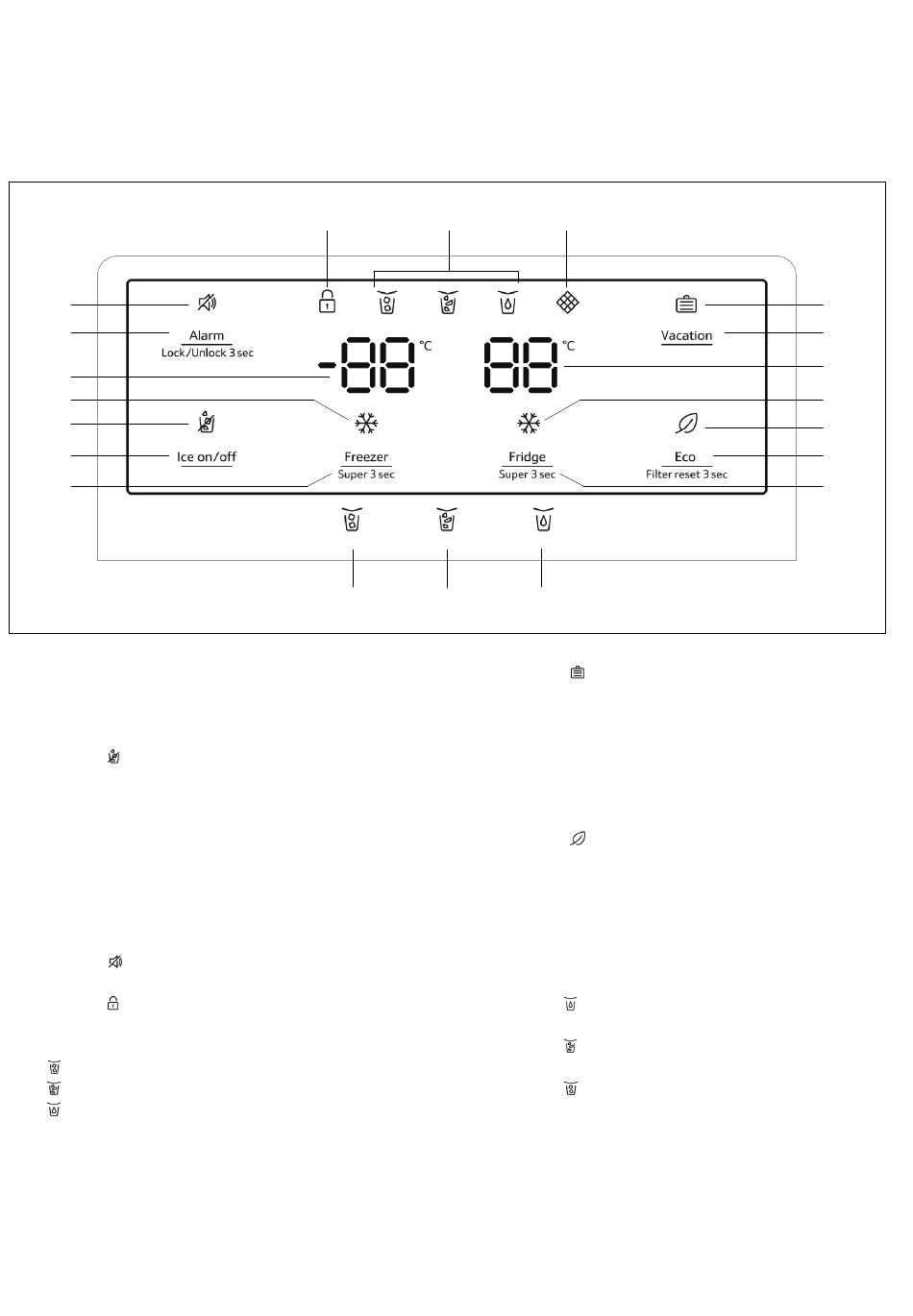

The control and display panel on the door consists of
2 display areas showing temperatures, displays for
different modes and 9 control buttons.
7
6
5
4
3
2
1
1 Button "Freezer / Super 3 sec"
To change temperature of freezer.
2 Button "Ice on/off"
To turn ice maker on or off.
3 Display (ice off)
Illuminated, when ice maker is turned off.
4 Display ] (super freeze)
Illuminated, when "super freezing" function
is active.
5 Freezer compartment temperature display
6 Button "Alarm / Lock/Unlock 3 sec"
To clear a present door alarm.
To lock or unlock the control panel and the
dispenser function (child lock).
7 Display (alarm)
Illuminated in case of door alarm.
8 Display (child lock)
Illuminated, when child lock is active.
9 Display of dispenser mode:
"cubed ice" mode active.
"crushed ice" mode active.
"water" mode active.
10 Display Á (water filter)
When display is blinking, you need to replace
the water filter
(~ chapter "Replacing the water filter").
8 9
20 19
11
12
13
14
15
16
17
18
19
20
10
18
Display (vacation)
Illuminated, when "holiday" mode is active.
Button "Vacation"
To activate or deactivate "holiday" mode.
Fridge compartment temperature display
Display ] (super cool)
Illuminated, when "super cooling" function is
active.
Display (eco)
Illuminated, when "energy save" mode is active.
Button "Eco / Filter reset 3 sec"
To turn energy save mode on or off.
To reset the water filter display, after having
replaced the water filter.
Button "Fridge / Super 3 sec"
To change temperature of refrigerator.
Button
To activate dispenser mode "water".
Button
To activate dispenser mode "crushed ice".
Button
To activate dispenser mode "cubed ice".
