C
O N N E C T I O N S

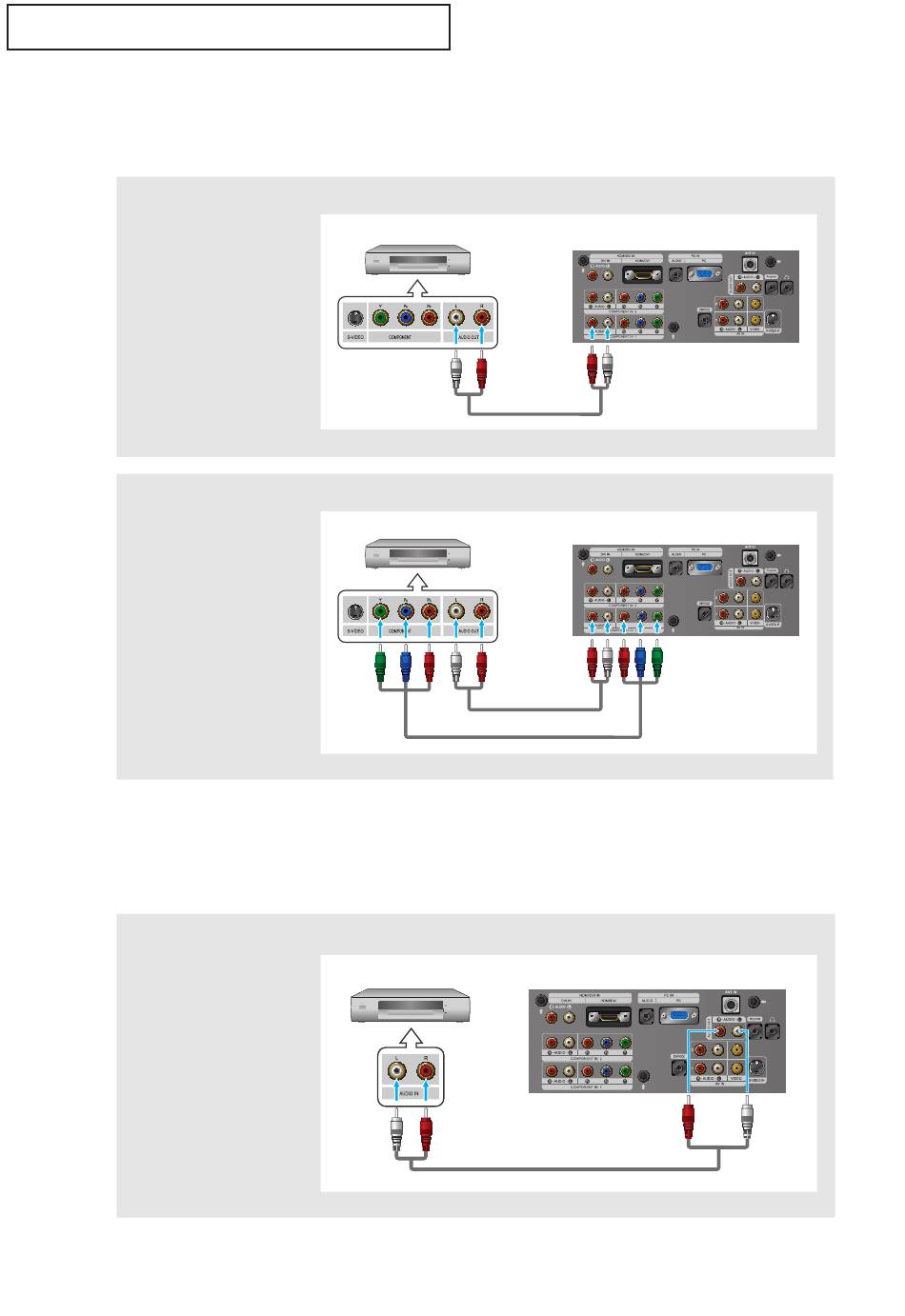

Connecting a Digital TV Set-top box
The connections for a typical Set-top box are shown below.
1
Connect an audio cable
between the
COMPONENT IN 1 or
COMPONENT IN 2
[R-AUDIO-L] jacks on the
TV and the AUDIO OUT
jacks on the Set-top box.
2
Connect a component
cable between the
COMPONENT IN 1 or
COMPONENT IN 2
[P , P , Y] jacks on the
R B
TV and the
COMPONENT [Y, P , P
B
jacks on the Set-top box.
Note: For an explanation of Component video, see your Set-top box owner's manual.
* Each external input source device has a different back panel configuration.
* When connecting an external device, match the color of the connection terminal to the cable.
Connecting an Amplifier/DVD Home Theater
1
Connect an audio cable
between the AUDIO OUT
[R-AUDIO-L] jacks on the
TV and the AUDIO IN
jacks on the Amplifier/
DVD Home Theater.
* Each external input source device has a different back panel configuration.
* When connecting an external device, match the color of the connection terminal to the cable.
Set-Top Box Rear Panel
Set-Top Box Rear Panel
]
R
Amplifier/DVD Home Theater
English-
Audio Cable (Option)
Audio Cable (Option)
Component Cable (Option)
TV Rear Panel
Audio Cable (Option)
15
TV Rear Panel
TV Rear Panel
