Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

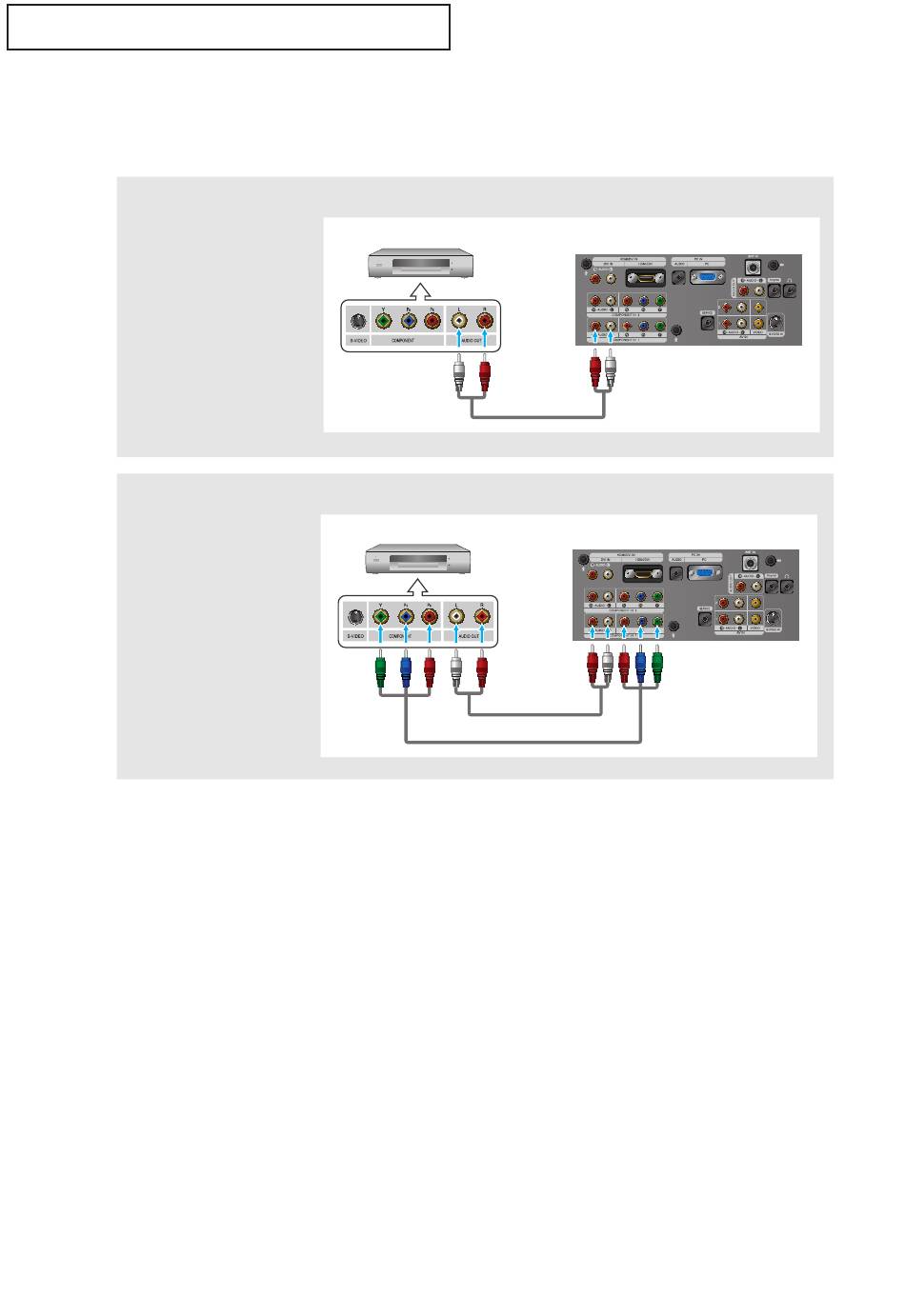

1
Connect an audio cable
between the
COMPONENT IN 1 or
COMPONENT IN 2
[R-AUDIO-L] jacks on the
TV and the AUDIO OUT
jacks on the DVD player.
2
Connect a component
cable between the
COMPONENT IN 1 or
COMPONENT IN 2
[P , P , Y] jacks on the
R B
TV and the COMPONENT
[Y, P , P ] jacks on the
B R
DVD player.
Note: For an explanation of Component video, see your DVD player owner's manual.
Be sure to match the component video and audio connections. For example,
if connecting the video cable to Component In 1, connect the audio cable to
Component In 1 also.
* Each external input source device has a different back panel configuration.
* When connecting an external device, match the color of the connection terminal to the cable.
DVD Player Rear Panel
Audio Cable (Option)
DVD Player Rear Panel
Audio Cable (Option)
Component Cable (Option)
