O N N E C T I O N S

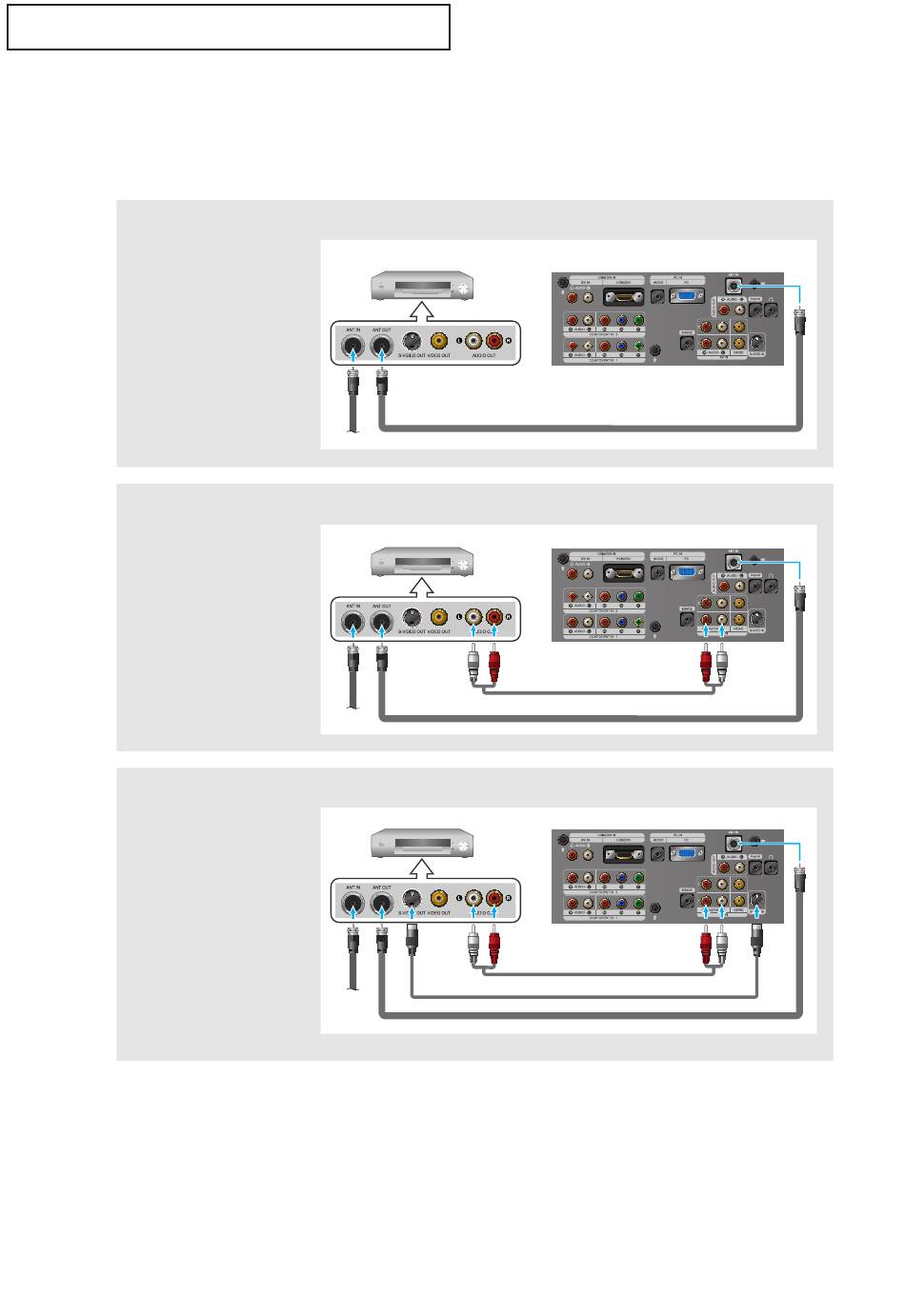

Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.
(This connection delivers a better picture as compared to a standard VHS VCR.)
1
To begin, follow steps 1–3
in the previous section to
connect the antenna or
cable to your VCR and
your TV.
2
Connect an audio cable
between the AUDIO OUT
jacks on the VCR and the
AV IN [R-AUDIO-L] jacks
on the TV.
3
Connect an S-Video cable
between the
S-VIDEO OUT jack on the
VCR and the S-VIDEO IN
jack on the TV.
An S-Video cable is usually included with an S-VHS VCR.
(If not, check your local electronics store.)
* Each external input source device has a different back panel configuration.
* When connecting an external device, match the color of the connection terminal to the cable.
VCR Rear Panel
RF Cable (Option)
VCR Rear Panel
Audio Cable (Option)
RF Cable (Option)
VCR Rear Panel
Audio Cable (Option)
S-Video Cable (Option)
