Replace guide bar when the groove is worn,
the guide bar is bent or cracked, or when
excess heating or burring of the rails occurs.
If replacement is necessary, use only the guide
bar specified for your saw in the repair parts list
or on the decal located on the chain saw.
SPARK PLUG
The spark plug should be replaced each
year to ensure the engine starts easier and
runs better. Ignition timing is fixed and non-
adjustable.
1. Loosen 3 screws on cylinder cover.
2. Remove the cylinder cover.
3. Pull off the spark plug boot.
4. Remove spark plug from cylinder and
discard.
5. Replace with Torch R7 spark
plug and tighten securely with a 19 mm
socket wrench. Spark plug gap should be
0,5 mm.
6. Reinstall the spark plug boot.
7. Reinstall the cylinder cover and 3
screws. Tighten securely.
Spark
Plug
Spark Plug Boot
CHAIN SHARPENING
Chain sharpening is a complicated task that
requires special tools. We recommend that
you refer chain sharpening to a professional
chain sharpener.
CARBURETOR ADJUSTMENTS
WARNING
: The chain will be moving
during most of this procedure. Wear your pro-
tective equipment and observe all safety pre-
cautions. The chain must not move at idle
speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if
you notice any of the following conditions:
S Chain moves at idle. See IDLE SPEED- -T
adjusting procedure.
S Saw will not idle. See IDLE SPEED- -T ad-
justing procedure.
Idle Speed ---T
Allow engine to idle. If the chain moves, idle
is too fast. If the engine stalls, idle is too slow.
Adjust speed until engine runs without chain
movement (idle too fast) or stalling (idle too
slow). The idle speed screw is located in the
area above the primer bulb and is labeled T.
S Turn idle speed screw (T) clockwise to in-
crease engine speed.
S Turn idle speed screw (T) counterclock-
wise to decrease engine speed.
STORAGE
cool, and secure the unit before storing or
transporting in a vehicle. Store unit and fuel
in an area where fuel vapors cannot reach
sparks or open flames from water heaters,
electric motors or switches, furnaces, etc.
Store unit with all guards in place. Position so
that any sharp object cannot accidentally
cause injury to passersby. Store the unit out
of reach of children.

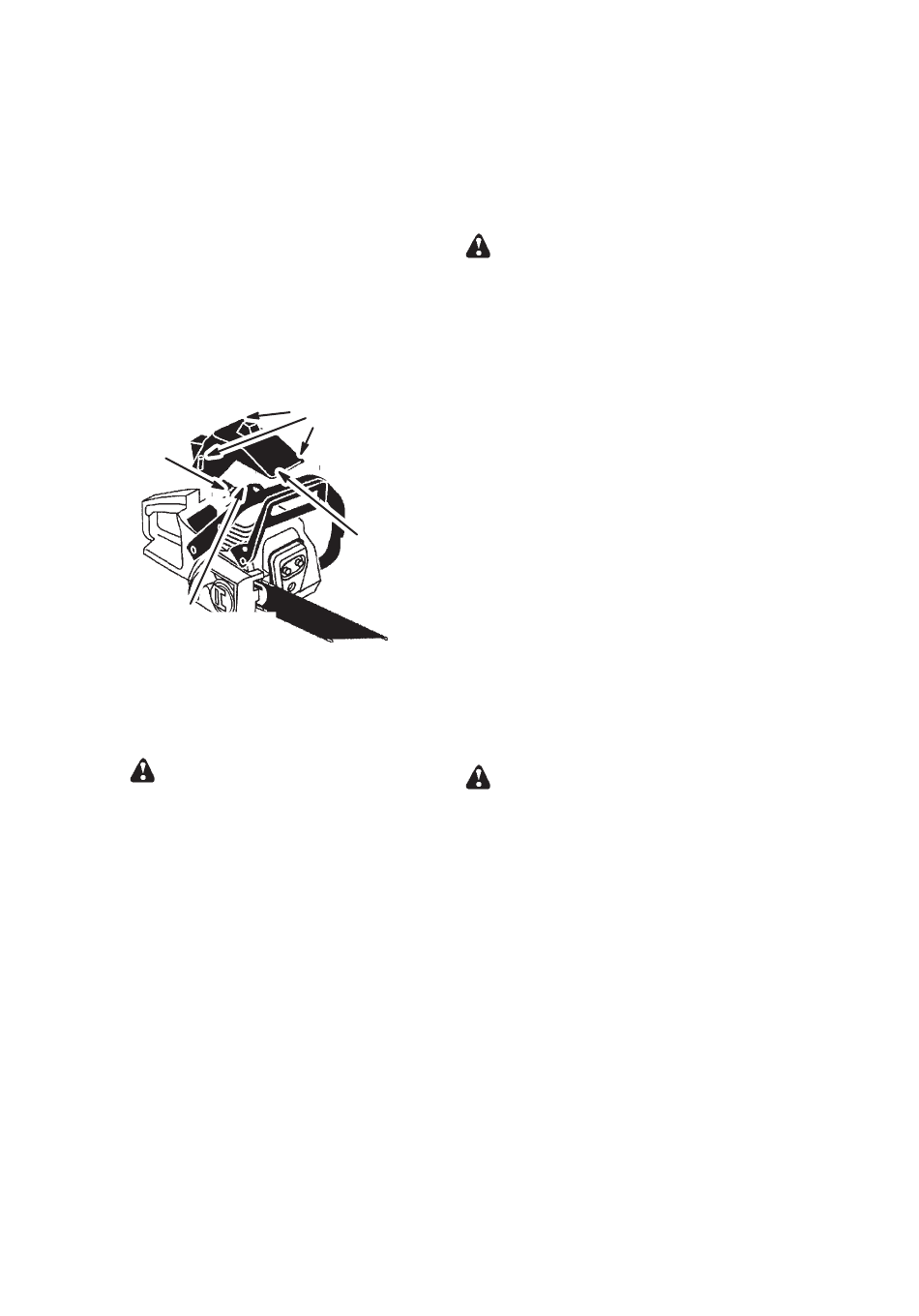

Cylinder Cover
S Before storing, drain all fuel from the unit.
Screws
Start engine and allow to run until it stops.
S Clean the unit before storing. Pay particu-
lar attention to the air intake area, keeping
it free of debris. Use a mild detergent and
sponge to clean the plastic surfaces.
S Do not store the unit or fuel in a closed area
where fuel vapors can reach sparks or an
open flame from hot water heaters, electric
Cylinder
motors or switches, furnaces, etc.
Cover
S Store in a dry area out of the reach of chil-
dren.
S Ensure the machine is cleaned and that a
complete service is carried out before
long- -term storage.
S The guide bar and chain must always be
covered with a scabbard when the machine
is being transported or in storage in order to
prevent accident contact with the sharp
chain. Even a non- -moving chain can cause
serious cuts to yourself or persons you
bump into with an exposed chain.
gum deposits from forming in essential fuel
system parts such as the carburetor, fuel fil-
ter, fuel hose, or fuel tank during storage. Al-
cohol blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to fuel mixture separation and
formation of acids during storage. Acidic gas
can damage the engine.
14
WARNING
: Stop engine and allow to
CAUTION
: It is important to prevent
