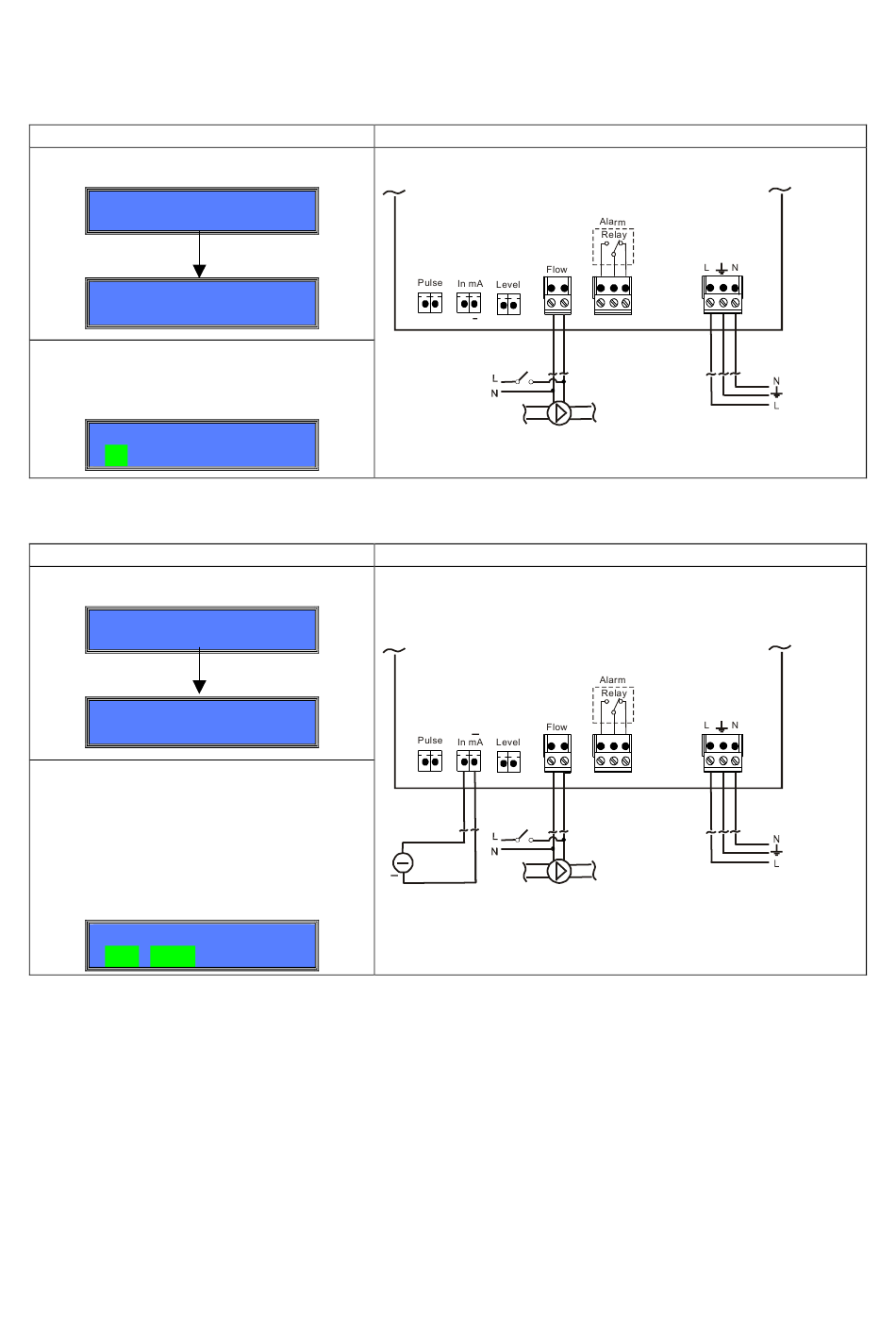

Configuration of dosing mode:
The different dosing modes can be set with the Enter key, choosing the dosing type using UP and DOWN
and always confirming with Enter.
Manual
Display
Advanced
Input Congig
Manual Mode
st
In the 1 level menu a new item will appear
for setting the motor speed (10-100%)
Set Point Value
10
Input current (mA)
Display
Advanced
Input Config
mA Mode
In the 1st level menu a new item will appear
for setting the range of values. The first and
second value (0-20 mA) are connected to
the speed of the pump; with the first value
the pump does not dose and proportionally
with the second value the pump doses at
the maximum speed.
mA Range
4.0/20.0
0000137718
%
+
mA
rev. 1.0
Wiring
+
230 Vac
Circulating pump
Wiring
+
230 Vac
Circulating pump
