Disconnect power supply before carrying out ANY operation inside the control panel of the system.
NON-OBSERVANCE OF THE INSTRUCTIONS CONTAINED IN THE PRESENT MANUAL COULD CAUSE
INJURY TO PEOPLE AND/OR DAMAGE TO THE DEVICE.

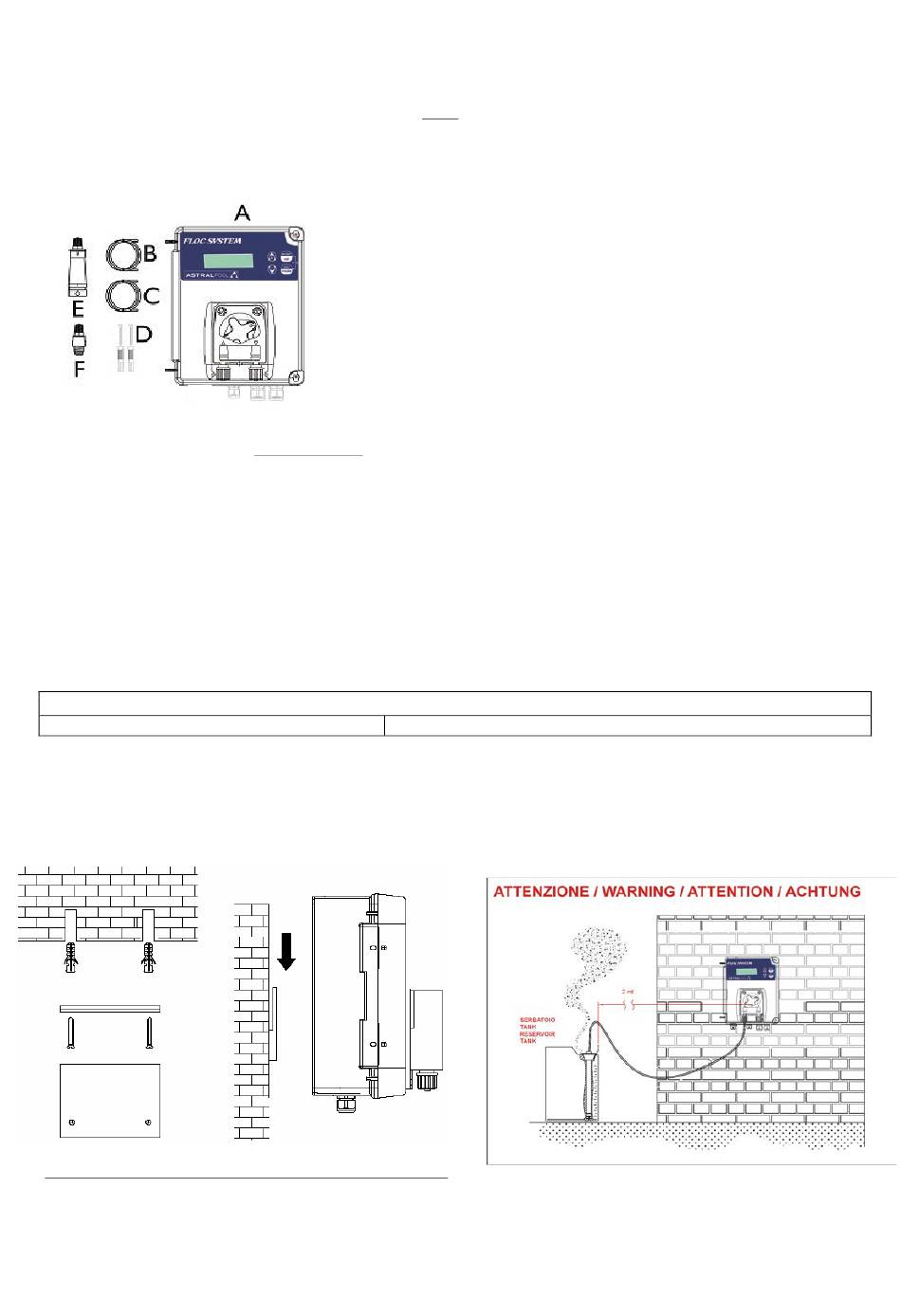

Contents of Packaging:
Note: These products are DANGEROUS (I!A) and require special precautions during use, handling and
storage.
! The Floc System has been designed for accurate dosing
B NEVER mix chemical products
B NEVER allow children or people who have not read this manual to use or tamper with Floc
System or any of its peripheral components (including chemical products).
Dimensions (H –W – L)
Weight
Power (50 Hz)
Frequency Range (Pulse connector inlet): 0.03÷3 Hz
min 151.2 mL/h
Accessories upon request
Power (Step-Up)
TYPICAL APPLICATION
Make sure that the injection pressure is below 1.5 bar.
0000137718
FLOC SYSTEM
A) "Floc System" control system (standard model)
B) PVC Cristal 4x6 suction hose (4 m)
C) Delivery hose in polyethylene (5 m)
D) Screw plugs (!=6 mm)
E) Bottom filter (PVC)
F) FPM non-return valve (3/8" GAS)
TECHNICAL FEATURES
234x162x108 mm
1 kg
100÷240 VAC
Pump flow rate
Max 1,512 ml/h
12 - 24 (VAC/DC) 10 Watt
WARNINGS
ATTENTION!
Maximum back - pressure
Pump dosing
Absorption
Dosing Calibration
rev. 1.0
1.5 bar
Standby
7 W
Automatic
ASSEMBLY
1
