Astralpool FLOC SYSTEM Manuel D'installation page 5

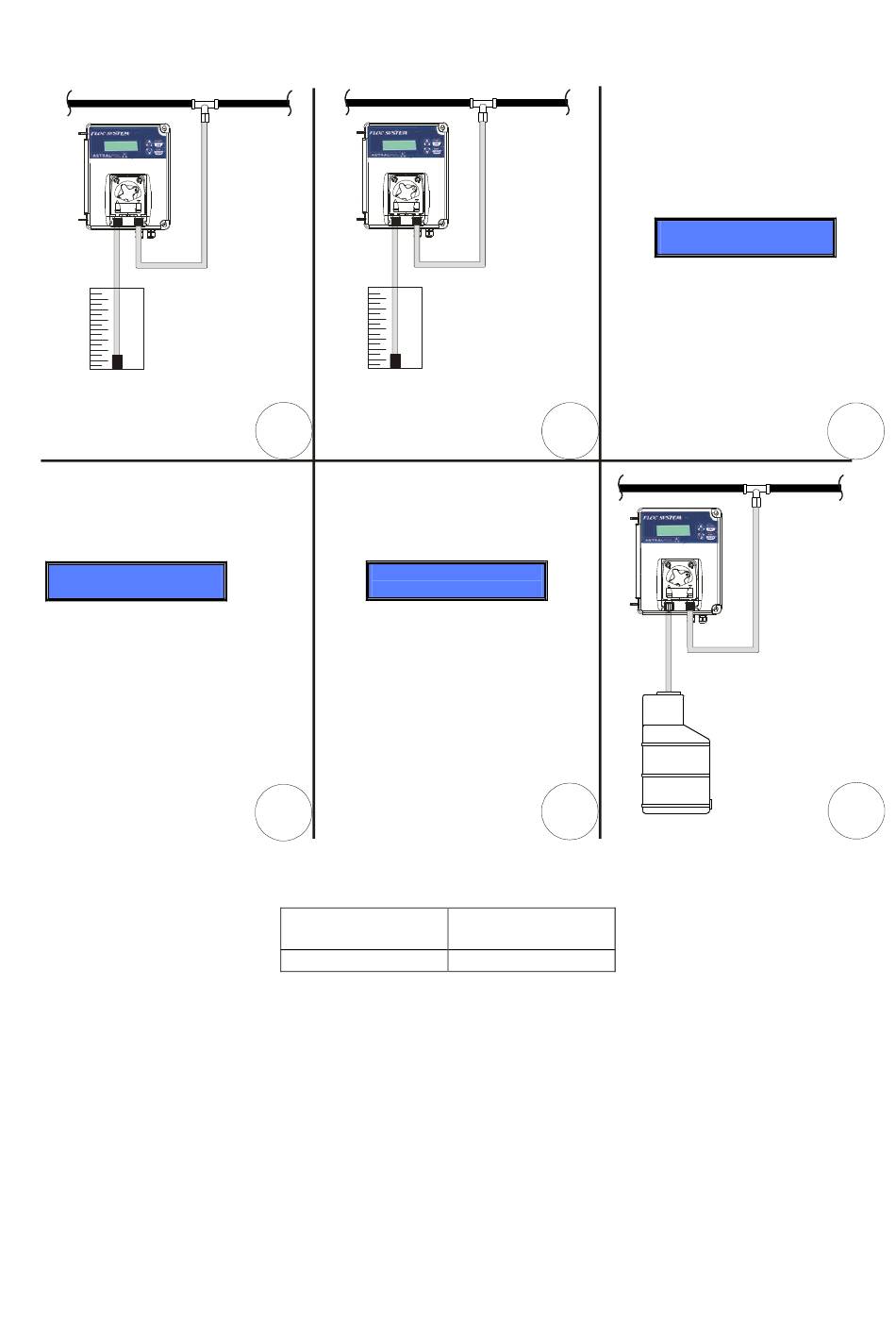

Calibration Function (if enabled)
! " # $ ! " # $
Completely install the system with a
graduated container at the inlet. See
table for the recommended graduated
container to use.
Press the Enter key to start the motor at
100%. The display will show the dosing
count in seconds:
Pump Calibration
??? sec dos
See table for the recommended
calibration time.
The calibration function allows the nominal flow rate of the pump to be adjusted from -20% to +10%.
E.g.:
160 ml/h – 20% = 130 ml/h
160 ml/h + 10% = 175 ml/h
Digital adjustment of the flow rate in the range:
130 ÷ 175 ml/h
0000137718
! " # $ ! " # $
Prime the system
1
Press the Enter key again to stop the
dosing and the display will show:
Quantity?
???
Press the UP and DOWN keys to enter
the actual dosed value. Press the Enter
key to confirm and set the pump
calibration.
4
Recommended
duration Calibration
60 seconds
rev. 1.0
2
cc
5
Container capacity
100 cc
Keep the CAL key pressed for at least 5
seconds to access the calibration
function. The following will appear on
the display:
Pump Calibration
ENTER to START
! " # $ ! " # $
The system is calibrated. Position
the foot filter in the product tank.
3
6
3
