Heath Zenith SL-5412 Mode D'emploi

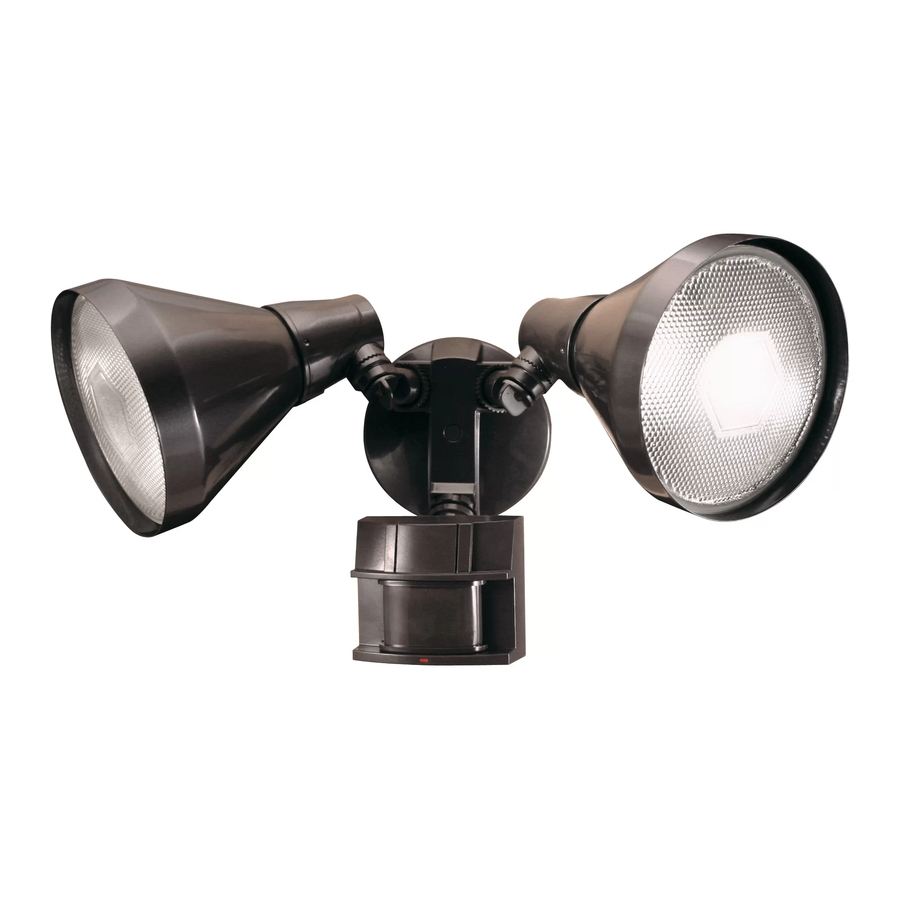

Motion Sensor Light
Control
Model SL-5412
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight
hours.
• LED indicates motion was sensed (day or night).
This package includes:
Plastic
Hanger
Lamp Holders
Cover
Plate
Sensor
Light Control
2 Flood Lamps
(some versions)
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2007 HeathCo LLC
Get user manuals: See SafeManuals.com
As an ENERGY STAR Partner, Heath
®
has determined that this product meets the EN-
ERGY STAR guidelines for energy efficiency.
®
This product is ENERGY STAR
when used with 120 Watt bulbs.
Features
Mounting Bolt
Rubber Plug
Gasket
Mounting Strap
2 Wire
Connectors
(3 sizes included)
Requirements
Mode:
Test
Auto
Manual
Note: When first turned on wait about 1
/Zenith
®
the circuitry to calibrate.
® compliant
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
2 Shells
ON-TIME switch in the 1, 5, or 10
position.
TEST
AUTO
MANUAL MODE
6 Screws
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
OPERATION
On-Time Works:
5 Seconds
1, 5, or 10 Minutes
To Dawn*
* resets to Auto Mode at dawn.
TEST
AUTO
MANUAL MODE
Mode Switching Summary
Move ON-TIME Switch to
1, 5, or 10 minutes
Flip light switch off
for one second then
Day Night
x x
x
x
1 / minutes for
2
ON-TIME
10 5 1 TEST
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
back on*
598-1265-01
