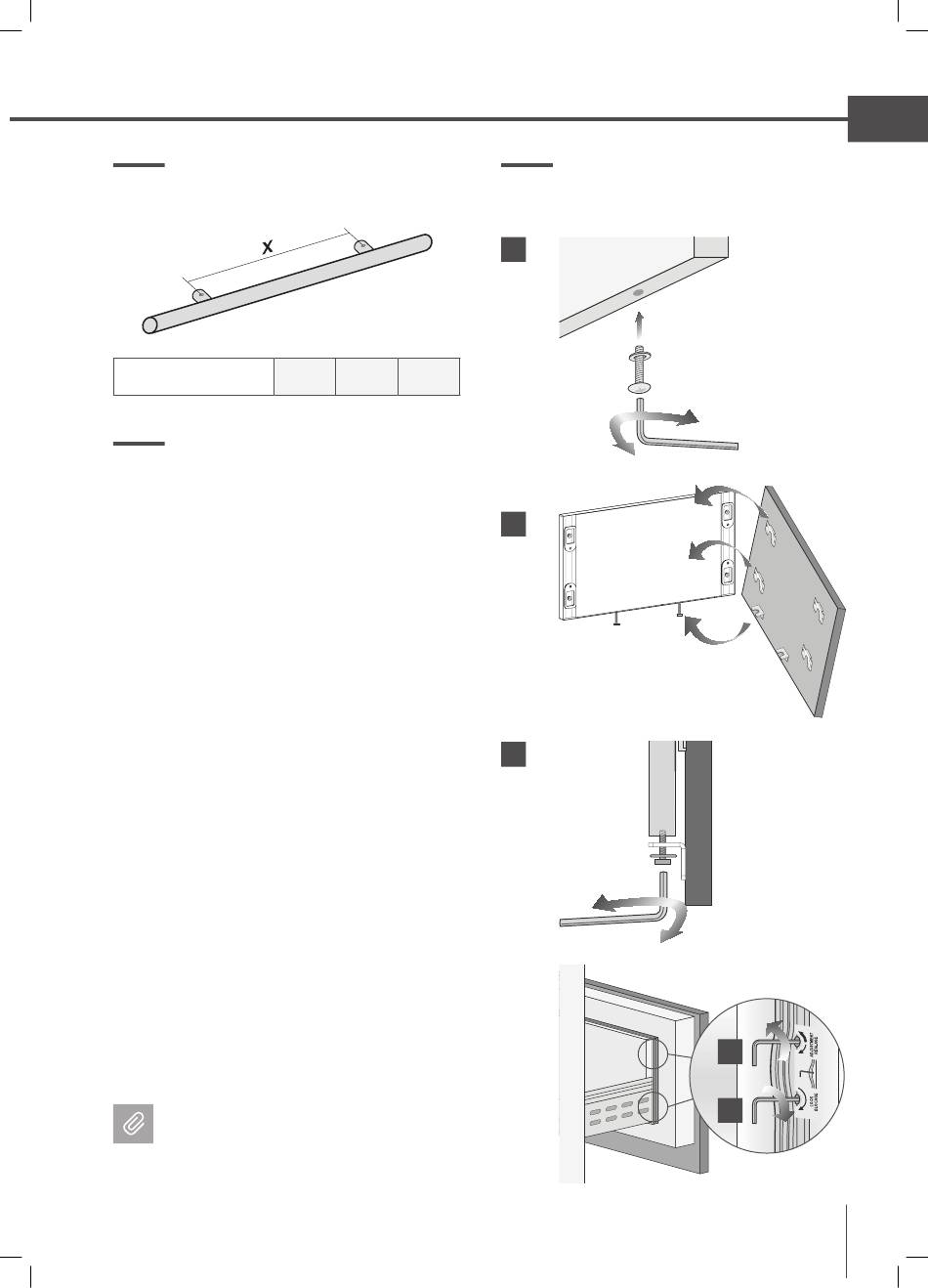

4.4 Mounting the handles on Integrated
units
900 mm
Distance between stand-offs X
(35 1/2")
4.5 Mounting panels to the door and
the drawer of Integrated units
Install 1 hanger bolt about 3 threads deep and 1 depth
set screw flush to foam gasket in each mounting ca-
vity. Once all brackets and small brackets have been
applied to the panels, you can begin installing the bot-
tom drawer.
Operate as follows:
>
Partially install the adjustment bolt with washer
into the two holes in the bottom of the drawer
>
Ensure the L-brackets align with the adjustment
bolts on the bottom, place panel against the drawer
face with the hanger brackets above the hanger
bolts and allow the panel to drop down. Ensure all
the hanger brackets engage the hanger bolts
>
It is now possible to align panels to adjacent cabi-
nets in height using the lower alignment brackets,
[ 3 ]
tightening or untighteningthe bolts into position
as needed. With the hanger bolts slighty tightened,
move the panel sideways to align it to the other pa-
nels on the unit or other adjacent structures.
Tapping the panel with a rubber mallet is a good
way to make small adjustments to the X-alignment
of the panel.
>
Depth alignment: working from the inside of the
drawer, after lifting up the magnetic seal, adjust
the panel position so it is closer to or further away
from the door using the holes
the panel using the holes
[ 5
Turning in the direction of the thick arrow pulls the
panel closer to the door/drawer face, turning in the
direction of the thin arrow pushes the panel away
from the face of the door/drawer.
Once the front panel has been ad-justed,
check that the gasket has been repositio-
ned correctly to as-sure the door/drawer
are closing correctly and avoid operational
er-rors of the unit.
599 mm
749 mm
(23 5/8")
(29 1/2")
[ 1
].
[ 2
].
[ 4 ]
and then secure
].
