Tiling. Try to narrow the gap between the
protruding R-box and the tile. It is critical
for installing the control valve later.
Using guide
The R-box is only the lower piece without the upper piece of the wall-mounted water tap (CR 067.00).
RB 071.50
Montážní průvodce je jen informativní. Práva na změnu vyhrazena společností RAVAK a.s.
All manuals and user guides at all-guides.com

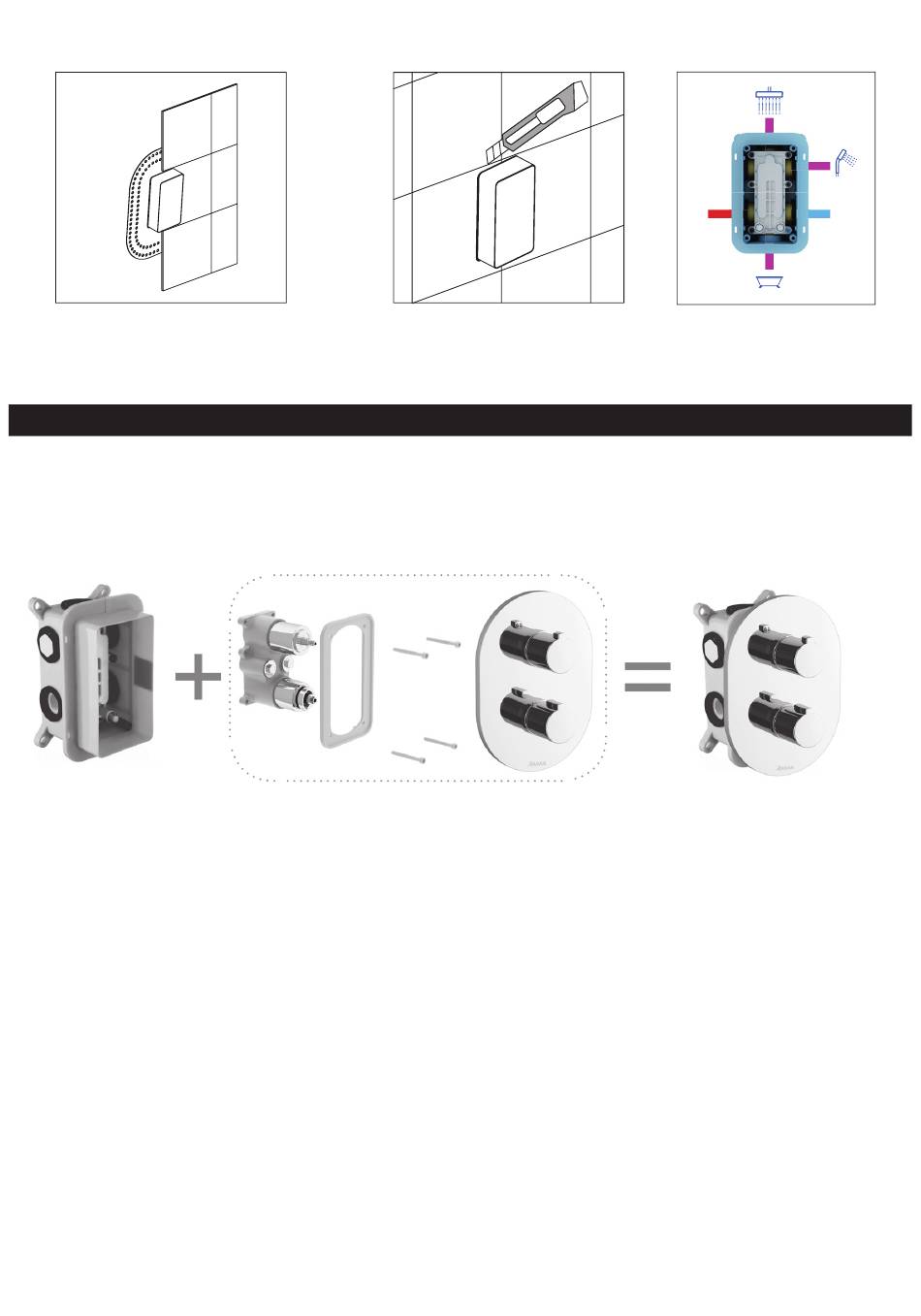

After tiling, cut the protruding part of the R-box. Then we have
fi nished the installation of the R-box. We can continue the
installation of the control valve now.
CR 067.00
Off
