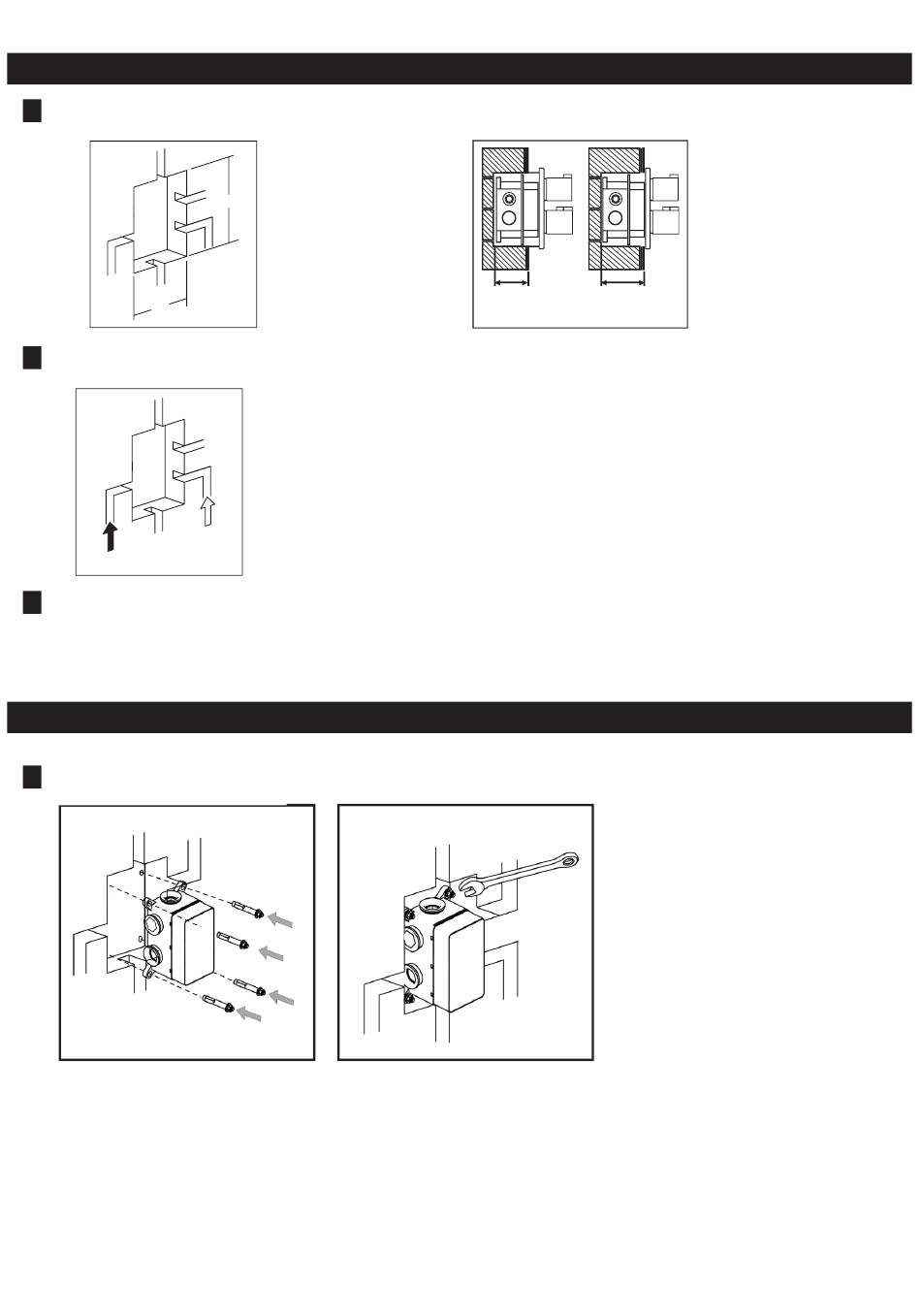

Preparation before installation
1
The size of the hole in the wall for installation complies with the dimension required below.
18 0
2
Requirement of water pipe: left side is for hot water, right side is for cold water
Cold
water
Warm water
Water pressure: 0.05Mpa- 1.0Mpa
3
Water temperature: Max - 65°C
Installation guide
1 Installation guide
Drill the installation hole
referring to the drawing of the
hole provided. The, drill holes
for 4 anchoring screws at the
marked points.
All manuals and user guides at all-guides.com
The required
size of the hole
in the wall is :
240
Length≥180mm;
Height≥240mm.
Put the R-box into the hole
drilled and fi x the R-box with
4pcs of expansion screws.
Before tightly fi x with wrench,
please adjust the R-box
to make sure that it levels with
the ground.
Max - 105 mm
Min - 85 mm
Minimum depth of the
mounting hole for
R-BOX is 85 mm,
maximum depth
is 105 mm.
