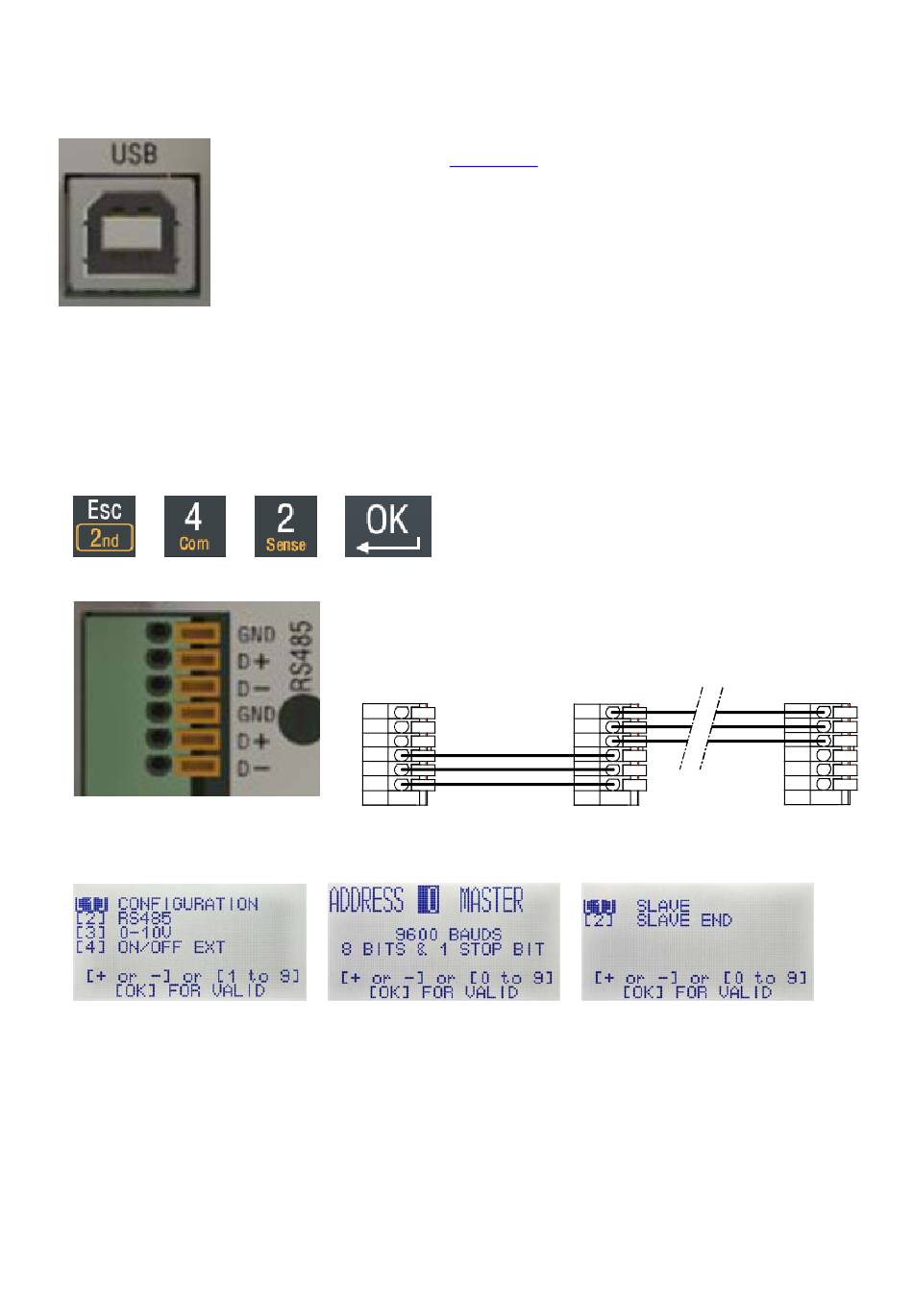

7 USB CONNECTION

Preparation of communication :
Download on our website
Connect the power supply to the USB2.0 PC port with a USB cable
as A / B type USB (its length shouldn't exceed 3 meters).
Install the file.
Your PC is ready to communicate with the ALR3206T.
Use "Hyper Terminal ®" simple utility to communicate via the serial
port, present on all PCs with Windows 95®, 98®, XP®, Seven®.
You will find on the website www.elc.fr, LabVIEW ® drivers and user manual.
The USB connection allows to upgrade the Firmware (see download procedure).

8 RS485 CONNECTION

Configure addresses of the power supplies.
4000 4 361_09/22
www.elc.fr
Follow the instructions for configuration.
adresse = 0
MASTER
GND
D+
D-
26
the file : ALR32xx.inf
adresse = 1
SLAVE
adresse = 31
SLAVE END
GND
D+
D-
