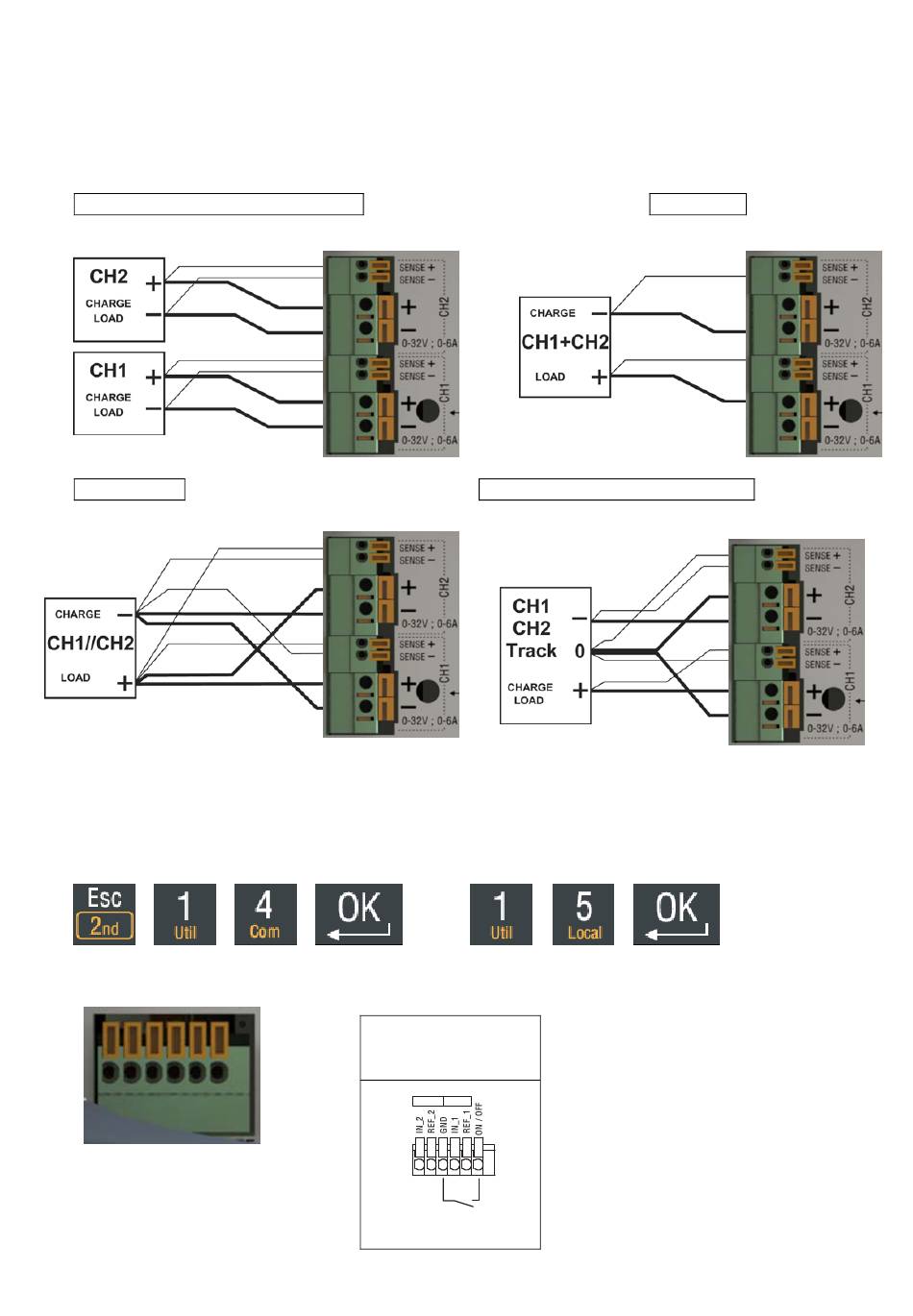

9 SENSE CONNECTION

Configuration "sense" 4 wires for output to terminals on the rear panel of the power supply.
Recommended conductors for the power are of 1 to 2 mm² ; those of the "sense" are minimum
0,22mm².
Separated mode or tracking isolated
Parallel mode

10 EXTERNAL REMOTE ON/OFF

Connect GND and ON/OFF (relay contact, switch, sensor, ..) allow control isolated outputs
with external signal.
Follow step for modifying configuration :
→ →
open switch => ON output(s) ; connect switch => OFF output (s)
4000 4 361_09/22
→ →select
Connection of
switch
A N A L O G R E M O T E
I N 2 I N 1
C o m m a n d e
O N / O F F
27
Serial mode
Tracking mode coupling (symetric)
à →
ENGLISH
