Installation instructions
US
6
CA
Door and hinge removal
Some installations require door removal to get the refrigerator to its final location.
Tools needed:
Phillips screwdriver
3⁄8" (9.5 mm) hex head driver
Electric Shock Hazard
Disconnect power to refrigerator before removing doors. Connect power
only after replacing doors.
Green ground wire must be attached to top hinge while performing door
removal and replacement.
Failure to do so may result in death, electric shock, fire, or injury to persons.
Caution!
To avoid property damage, observe the following:
Protect vinyl or other flooring with cardboard, rugs or other protective material, prior to moving
the refrigerator.
Tape decorative panels (select models) securely in place before removing door handles.
Do not adjust the refrigerator to be any shorter than 68½" (1740 mm) tall (minus hinge and cap).
Doing so may damage underside components.
Unplug power cord from power source.
1
Remove toe grille (see page 7).
2
Unscrew screws from top hinges.
3
Remove top hinges along with doors.
4
Remove bottom hinges with a 3⁄8" (9.5 mm) hex head driver.
5

Replacing the doors

To replace the doors, follow the steps in door and hinge
removal in reverse order.
4293_USA_DCS_EN_FR_SidebySide_Ref_UG6.indd 6
WARNING!
Steps 3 and 4
Step 5

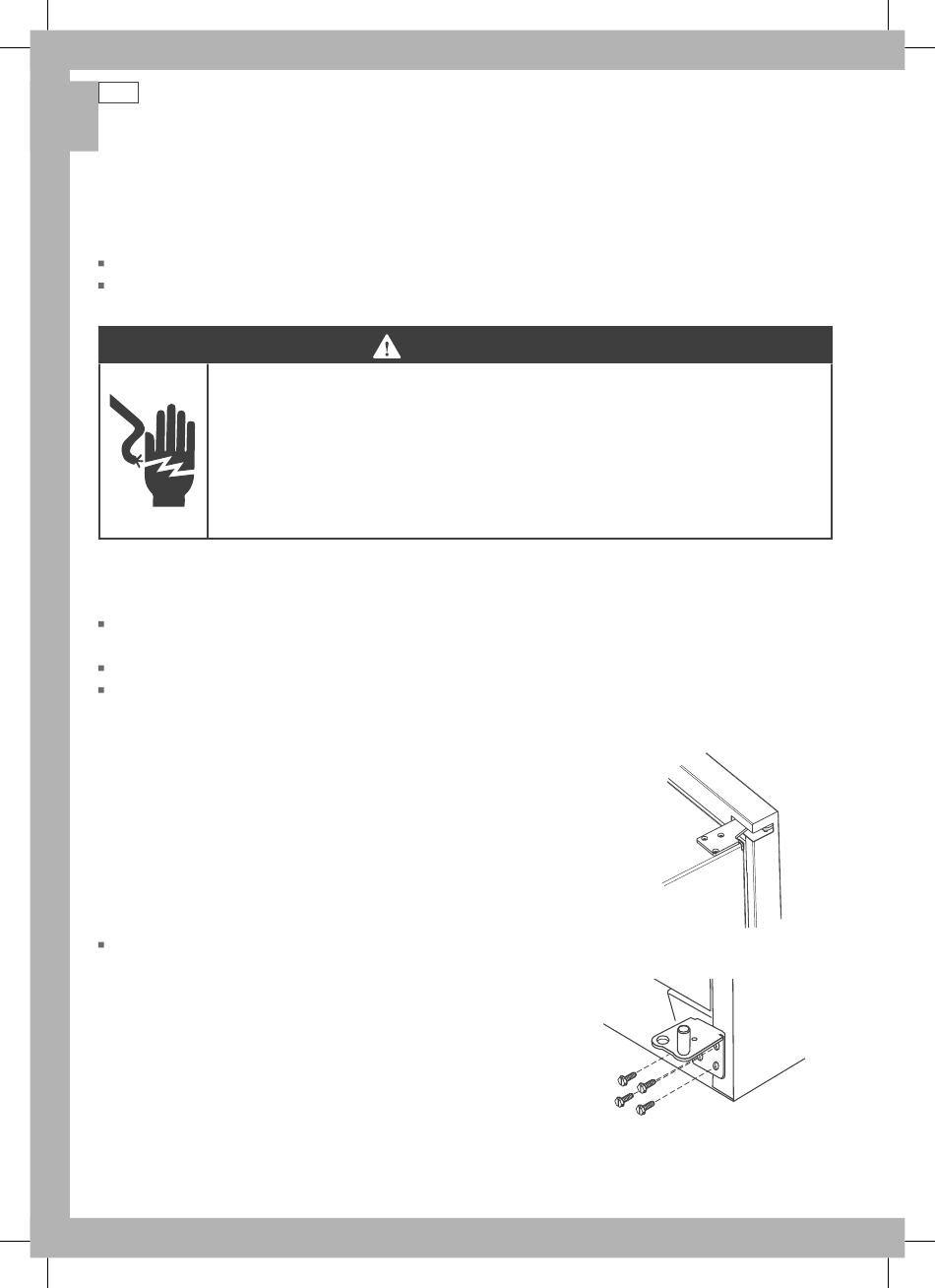

Fig.2 Door and hinge removal
