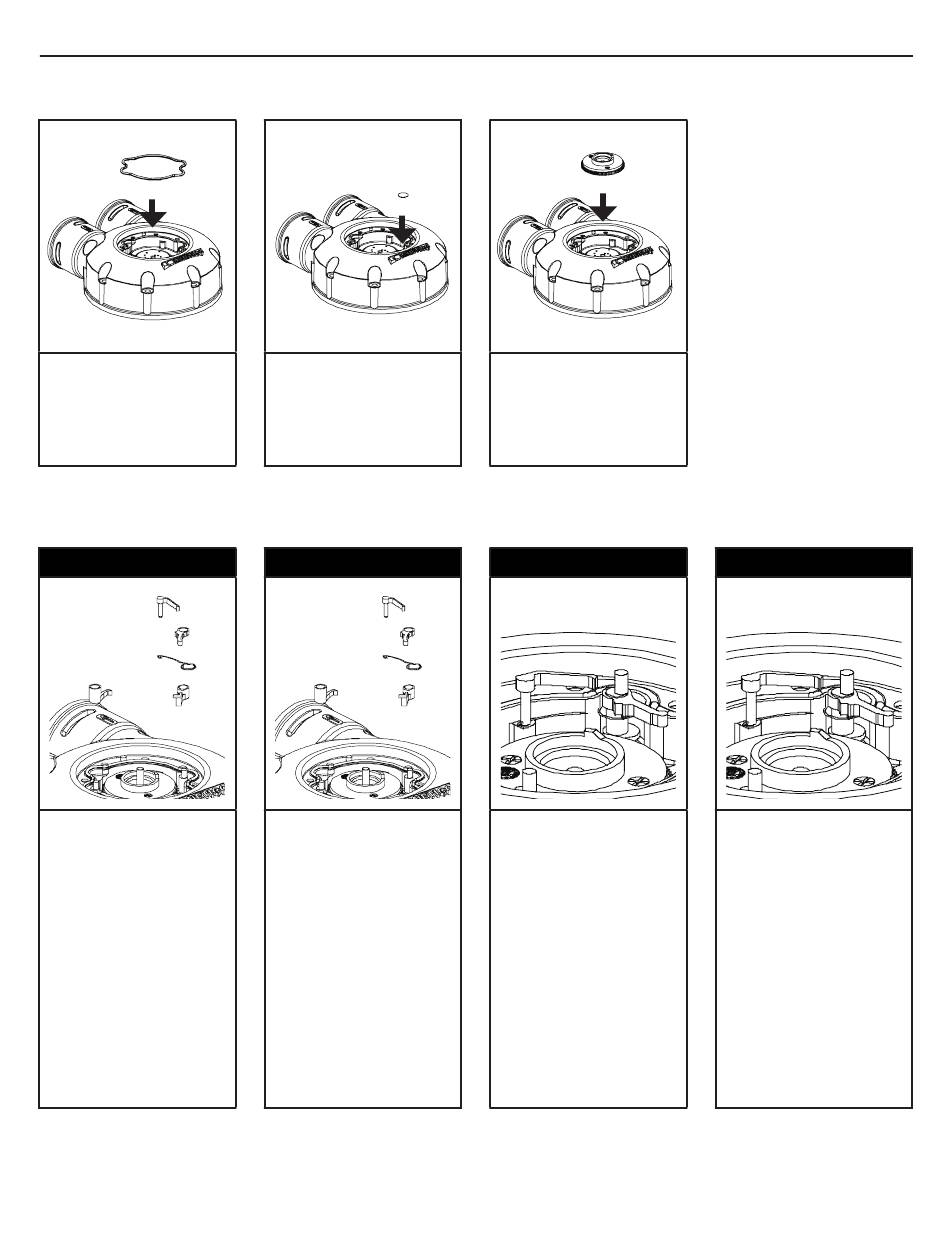

Control Disc, Screen and Seal

Place Cap Seal in groove.

Pawls

Step 1
Place the Regeneration
Drive Pawl onto the
Eccentric Pin in the 10
o'clock position with the
spring wire against the
wall.
Insert Level One Screen
into the hole at 5 o'clock
position.
Step 2
Place the Regeneration
Start Pawl onto the
Eccentric Pin in the 4
o'clock position with the
spring wire against the
wall.
Set the Control Disc onto
the ceramic disc, flat side
down. The Support Pin
goes through the hole in
the center of the Control
Disc.
Step 3
Drop the No-back
Pawl leg into the small
loop at one end of the
Meter Drive Pawl Spring
making sure that the
vertical arm of the Meter
Drive Spring is sticking
up. Place the No-back
Pawl leg into the small
hole at the 2 o'clock
position. Drop the large
loop of the Meter Drive
Spring over the eccentric
pin at the 4 o'clock
position.
13
Step 4
Place the Meter Drive
Pawl on top of the
Regeneration Start
Pawl, making sure that
the Meter Drive Spring
vertical arm is placed in
the notch on the Meter
Drive Pawl as shown in
the detail above.
