As for the sides and above, a minimum distance of between 10-12 cm must be left from any
wall or brickwork in order for it to function correctly (Figure 2).

2.2. Fixing the supports

Inside the packaging you will find a fixing kit and in the base of the radiator you will find a
security support.
• Choose the right part of the wall.
• Place the mounting stencil on the wall, marking the places for the holes.
• Remove the stencil and make the holes in the wall.
• Fix the top supports using the plugs and screws provided, or others suitable for the
wall type.
• Check the correct positioning of the lower support.
• Place the radiator in the top supports.
• Screw the lower support to the wall.

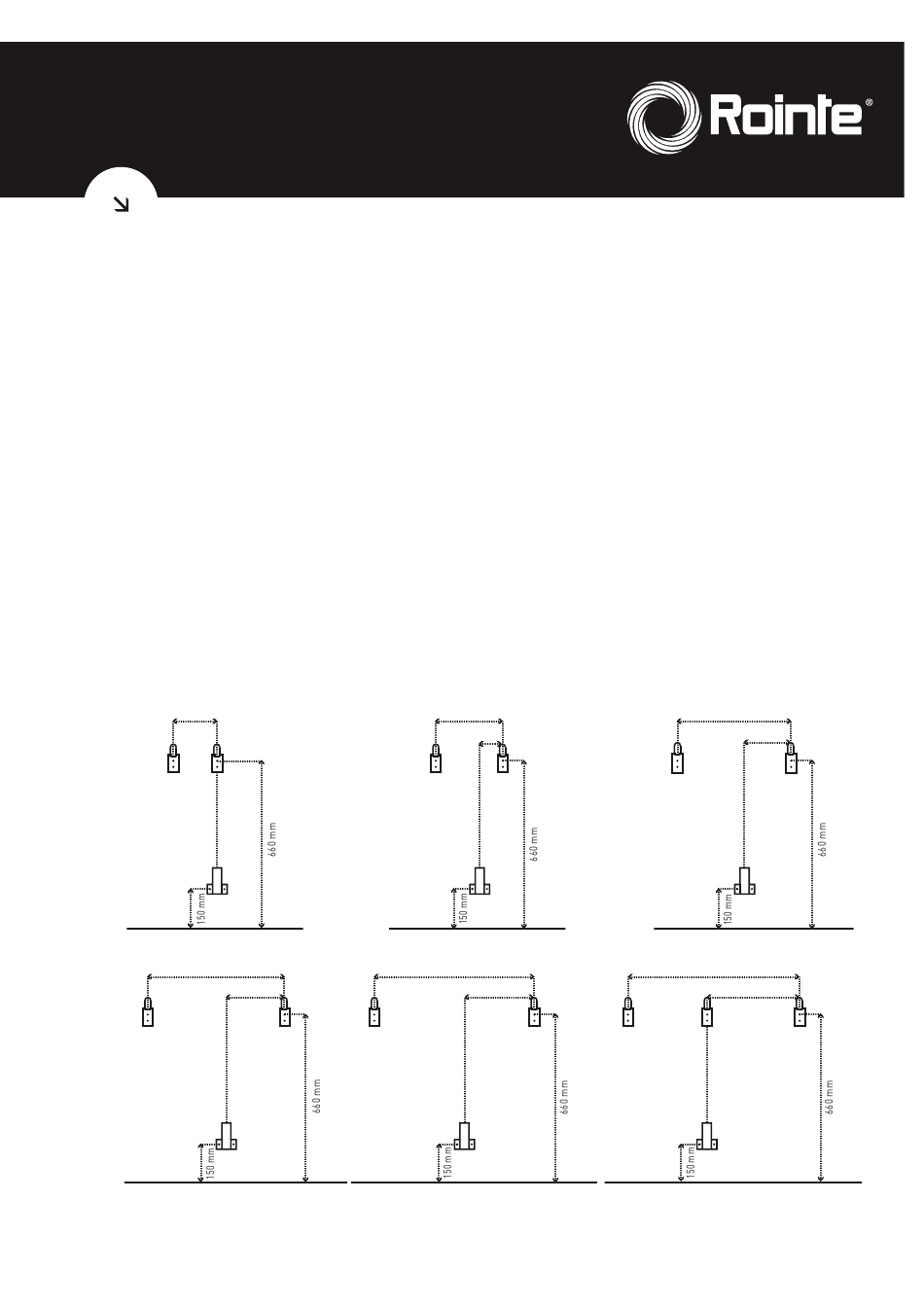

Installing template measures depending on the model:
81 mm 243 mm 406 mm
162 mm
81 mm
Floor Floor Floor
KI0330RAD KI0550RAD KI0770RAD
568 mm 893 mm
730 mm
243 mm
324 mm 406 mm
Floor Floor
Floor
KI1430RAD / KI1600RAD
KI0990RAD KI1210RAD
