Unpacking Instructions - Fanimation XENO FP6729B Serie Manuel D'instructions

This manual is designed to make it as easy as possible for you
to assemble, install, operate, and maintain your ceiling fan
Tools Needed for Assembly
(Not Included)
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 8). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in finding your place should you be interrupted.
Do not install or use fan if any part is damaged or missing. This product is designed to use only those parts supplied with
this product and/or any accessories designated specifically for use with this product by Fanimation. Substitution of parts
or accessories not designated for use with this product by Fanimation could result in personal injury or property damage.
Contact your retail store for missing or damaged parts.

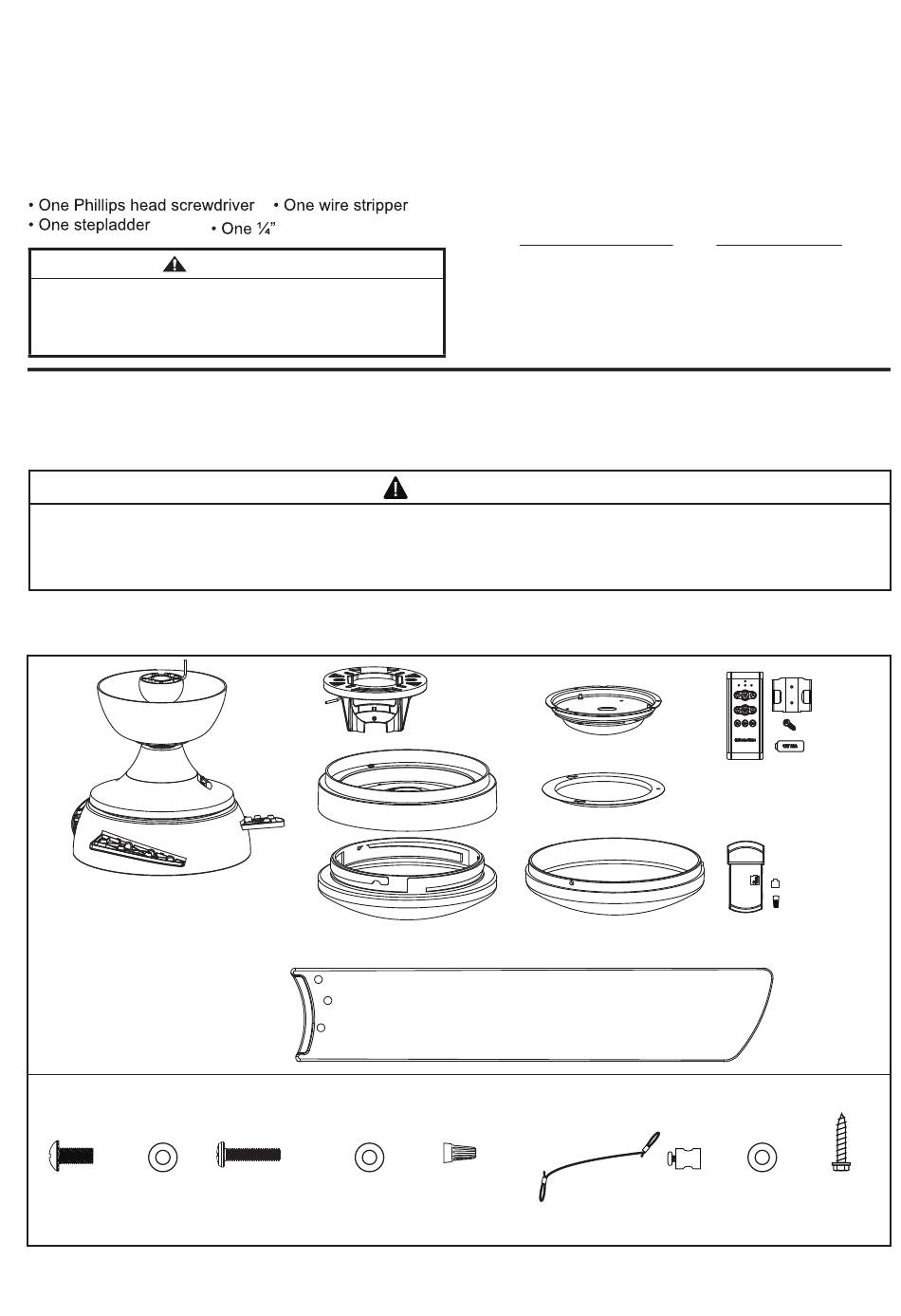

1. Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to exploded view illustration.
Motor Assembly (1)
Downrod/Hanger Ball Assembly (1)
– Downrod (1)
– Hanger Ball (1)
– Set Screw (1)
– Hairpin Clip (1)
– Clevis Pin (1)
– Pin (1)
Ceiling Canopy (1)
Canopy Screw Cover Assembly (1)
Motor Coupling Cover Assembly (1)
Motor Housing Assembly (1)
Hardware bags
3/16˝ -24 Flat Washer,
Serrated Head
(10)
Screws (10)
blade screwdriver

Unpacking Instructions

Light Kit/Glass Assembly (1)
#8-32 Junction Box Flat Washer,
Screws, Stainless Steel Stainless Steel (2)
(2)
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3-
conductor (2-wire with ground) of the following size:
Installed Wire Length
Up to 50 ft.
50 - 100 ft.
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are
missing, contact your local retailer.
WARNING
Hanger Bracket
Assembly (1)
LED Assembly (1)
Light Cap (1)
Plastic Cap (1)
Safety Cable Kit
Wire
Safety Cable
Connectors (4)
(1)
3
Materials
Wire Size A.W.G.
14
12
Hand-held Remote (1)
Wall Holder (1)
Screws (2)
Battery (1)
Receiver (1)
Wire Connectors (6)
Rubber Cover (1)
Blade Set
Cable Clamp Flat Washer,
Stainless Steel
(1)
(1)
12V 23A
(1)
Lag Bolt
(1)
