Fanimation XENO FP6729B Serie Manuel D'instructions page 9

NOTE: If you feel that you do not have enough electrical wiring knowledge or experience,
have your fan installed by a licensed electrician.
GROUND
L
N
AC POWER
L1

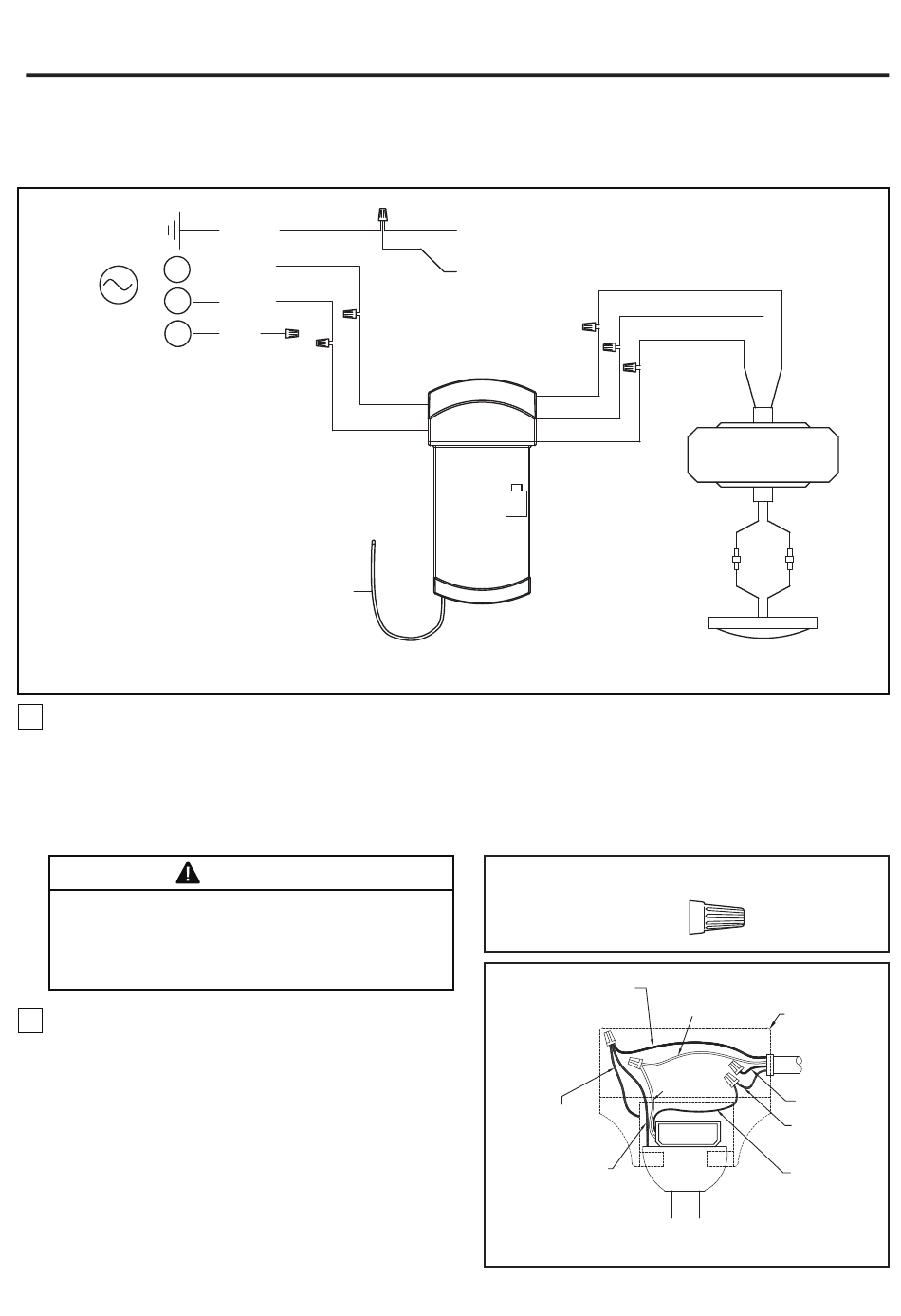

3. Connect green wires from hanger bracket, hanger ball and ground from supply using wire connector. Connect
black wire from receiver unit marked "AC IN L" to black supply wire using wire connector. Connect white wire
from receiver unit marked "AC IN N" to white supply wire using wire connector. Connect white wire from receiver
unit marked "TO MOTOR N" to white wire from fan using wire connector supplied with receiver unit. Connect
black wire from receiver unit marked "TO MOTOR L" to black wire from fan using wire connector supplied with
receiver unit. Lastly, connect blue wire from receiver unit to the blue fan light wire using wire connector supplied
with receiver unit. (Figure 4)
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors except for the ground wire. Do not operate
fan until the blades are in place. Noise and motor
damage could result.
4.
After connections have been made, the wires
should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side
of the outlet box and the ungrounded conductor on the
other side of the outlet box, then turn leads upward
and carefully push leads into the outlet box, with the
white and green leads to one side of the box and the
black leads to the other side. (Figure 5)
How to Wire Your Ceiling Fan (continued)
GREEN
BLACK
WHITE
RED
BLACK
ANTENNA
WARNING
HANGER
BRACKET
HANGER
BALL
BLACK
WHITE
Figure 4
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
9
BLUE
BLACK
WHITE
BLUE
BLACK
WHITE
WHITE
HARDWARE USED:
Wire
Connectors
Green Wire
White Wire
from Supply
from Supply
(Ground)
White Wire
from Receiver
Receiver
Figure 5
AC MOTOR
BLUE
LIGHT KIT
x 7
Listed
Outlet Box
Household
Supply
Red Wire
from Supply
Black Wire
from Supply
Black Wire
from Receiver
