INSTALLATION
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable
local codes. Proper grounding is required for safety. THIS PRODUCT MUST BE INSTALLED
IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user
serviceable parts inside.

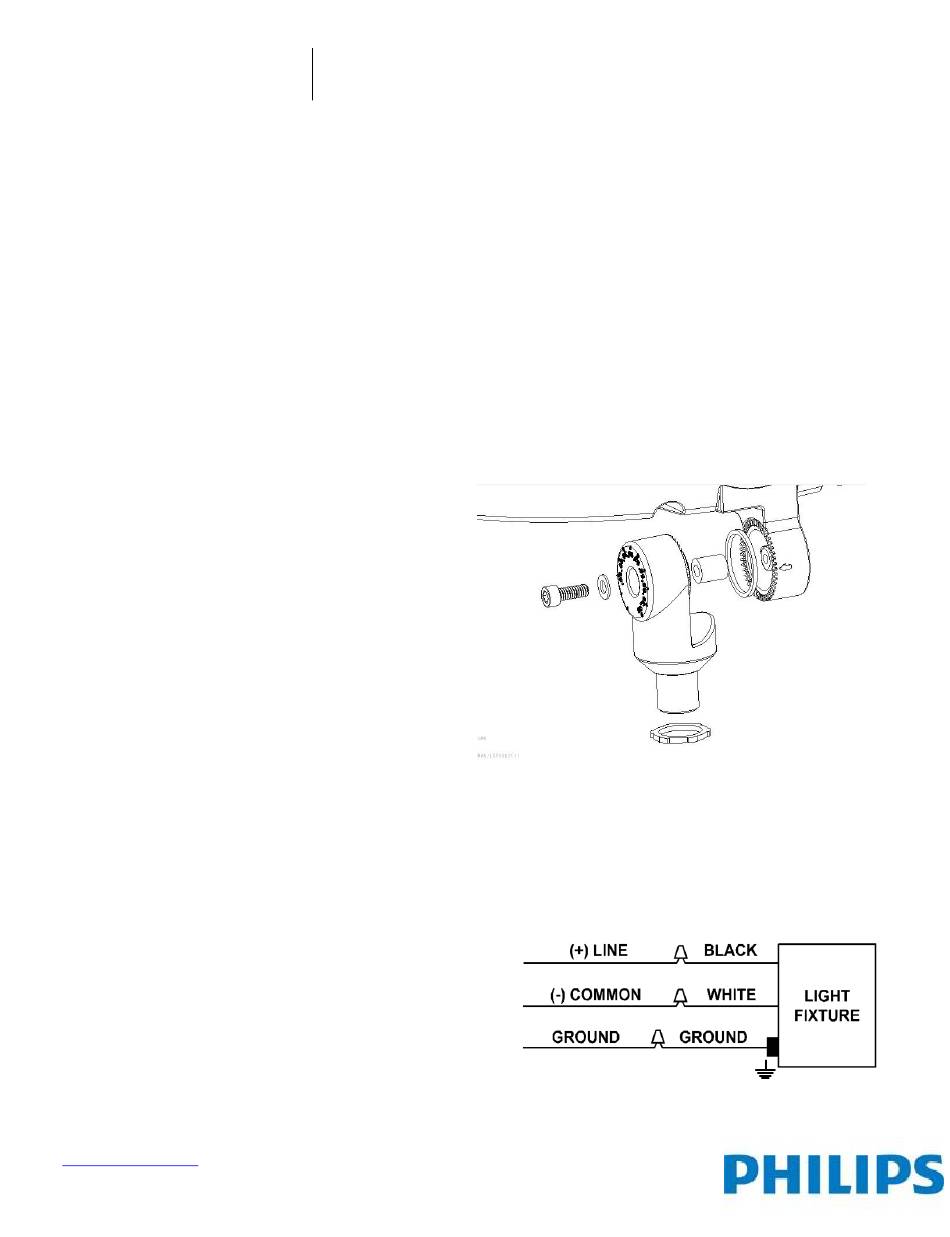

LOCATION
1. Seal arm thread using Teflon tape or silicone
sealant.
2. Secure the LED Flood to a 1/2" NPS hole
in a junction box or landscape post.
3. Plug all unused holes and seal threads with
silicone.
4. The swivel arm on the LED Flood allows 140º -
150º of vertical aiming adjustment depending on
mounting location.
TROUBLESHOOTING
1. Check that the line voltage at the fixture is correct.
Refer to wiring directions.
2. Is the fixture grounded properly?
3. Is the photocell, if used, functioning properly?
© 2016 Philips Lighting Holding B.V. All rights reserved.
a
www.philips.com/luminaires
Part Number 443561205830 Rev. C
Page 1 of 2
LPF2
WIRING
Universal voltage drivers permits operation at 120V to
277VAC, 50/60 Hz or 347V, 60Hz.
1. Connect the BLACK fixture lead to the (+) LINE supply
lead.
2. Connect the WHITE fixture lead to the (-) COMMON
supply lead.
