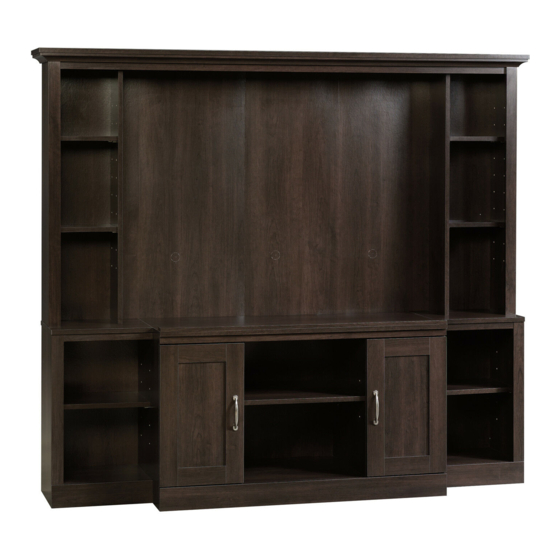

Entertainment/Wall System
Model 403932
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Your center of
attention.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-28
Français pg 29-33
Lot # 367350
12/15/14
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Publicité

Table des Matières
loading

Manuels Connexes pour Sauder 403932

Sommaire des Matières pour Sauder 403932

  • Page 1 Model 403932 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987. English pg 1-28 Français pg 29-33...
  • Page 2 • Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly! • This Sauder unit is designed for use with televisions weighing less than 95 pounds. Never use with a TV that weighs more.

  • Page 3: Part Identifi Cation

    CENTER UPRIGHT (2) LARGE ADJUSTABLE SHELF (1) EE LARGE END MOLDING (2) TOP (1) LOWER ADJUSTABLE SHELF (2) FF SMALL END MOLDING (2) RIGHT TOP (1) SMALL ADJUSTABLE SHELF (4) LEFT TOP (1) W FRONT SKIRT (1) www.sauder.com/services 403932 Page 3...

  • Page 4: Table Des Matières

    SILVER 1-1/4" PAN HEAD SCREW - 9 XX BROWN 1" FLAT HEAD SCREW - 3 SILVER 5/8" MACHINE SCREW - 4 BLACK 9/16" LARGE HEAD SCREW - 67 BLACK 1/2" FLAT HEAD SCREW - 8 NAIL - 126 Page 4 403932 www.sauder.com/services...
  • Page 5 BOTTOMS (M and N). Then, insert a CAM DOWEL (HH2) into each HIDDEN CAM. Do not tighten the HIDDEN CAMS in this step. Arrow (36 used) (36 used) Arrow Arrow Insert the metal end of the CAM DOWEL into the HIDDEN CAM. www.sauder.com/services 403932 Page 5...
  • Page 6 MOLDINGS (Y, Z, and AA). Just think. The sooner you do this, the sooner you do something else. Use your hammer to tap the MOLDING CONNECTORS (NN) into the notches in the MOLDINGS. Flat end Flat end Page 6 403932 www.sauder.com/services...
  • Page 7 Fasten fi ve TIE PLATES (MM) to the FRONT MOLDING (Y). å Use fi ve BLACK 9/16" LARGE HEAD SCREWS (ZZ). BLACK 9/16" LARGE HEAD SCREW (5 used for the TIE PLATES) SILVER 1-1/4" PAN HEAD SCREW (9 used in this step) www.sauder.com/services 403932 Page 7...
  • Page 8 HUTCH ENDS (C and D). Use six BLACK 9/16" LARGE HEADSCREWS (ZZ). NOTE: There are no pre-drilled holes in the LARGE END å MOLDINGS. The SCREWS will tighten into the grooves. (6 used) BLACK 9/16" LARGE HEAD SCREW (12 used for the ANGLE BRACKETS) Page 8 403932 www.sauder.com/services...
  • Page 9 Tighten Risk of damage or Arrow injury. HIDDEN CAMS must be completely Arrow Maximum tightened. HIDDEN 210 degrees CAMS that are not completely tightened may loosen, and parts may separate. To Minimum completely tighten: 190 degrees www.sauder.com/services 403932 Page 9...
  • Page 10 HIDDEN CAMS. o l e u t h i t h o f a c S u r h o l i t h f a c S u r Maximum Arrow 210 degrees Minimum 190 degrees Page 10 403932 www.sauder.com/services...
  • Page 11 Fasten the UPPER MOLDING (BB) to the TOP (I). Use fi ve å BLACK 9/16" LARGE HEAD SCREWS (ZZ). NOTE: There are no pre-drilled holes in the UPPER å MOLDING. The SCREWS will tighten into the groove. BLACK 9/16" LARGE HEAD SCREW (5 used in this step) www.sauder.com/services 403932 Page 11...
  • Page 12 Step 8 Fasten the TOPS (J and K) to the SHELF (L). Tighten six å HIDDEN CAMS. Unfi nished edge Maximum Arrow 210 degrees Minimum 190 degrees Page 12 403932 www.sauder.com/services...

  • Page 13: Vv Black 1-7/8" Flat Head Screw

    Fasten the STOP MOLDING (Q) to the SHELF (L). Use å three BROWN 1" FLAT HEAD SCREWS (XX). Unfi nished edge BROWN 1" FLAT HEAD SCREW (3 used in this step) BLACK 1-7/8" FLAT HEAD SCREW (8 used in this step) www.sauder.com/services 403932 Page 13...
  • Page 14 S u r D E N H I D i t h f a c S u r D E N H I D Maximum Arrow 210 degrees Minimum 190 degrees Page 14 403932 www.sauder.com/services...
  • Page 15 Fasten the BOTTOM (M) to the CENTER UPRIGHTS (H). å Use four BLACK 1-7/8" FLAT HEAD SCREWS (VV). These holes must be here. fi n i s h r f a BLACK 1-7/8" FLAT HEAD SCREW (4 used in this step) www.sauder.com/services 403932 Page 15...
  • Page 16 S u r D E N H I D i t h o f a c S u r D E N H I D Maximum Arrow 210 degrees Minimum 190 degrees Page 16 403932 www.sauder.com/services...
  • Page 17 Tighten four HIDDEN CAMS. These holes must be here. fi n i s h r f a fi n i s h These holes must be here. r f a Maximum Arrow 210 degrees Minimum 190 degrees www.sauder.com/services 403932 Page 17...
  • Page 18 ENDS (A and B). * U.S. Patent No. 5,499,886 å Slide the END MOLDING (FF) onto the notched edge. Notched edge Slide the END MOLDING (FF) onto the notched edge. Maximum Arrow 210 degrees Minimum 190 degrees Page 18 403932 www.sauder.com/services...

  • Page 19: Zz Black 9/16" Large Head Screw

    9/16" LARGE HEAD SCREWS (ZZ). NOTE: Be sure the edges of the ANGLE BRACKETS å are even with the edges of the ENDS, UPRIGHTS, and BOTTOMS. (20 used) BLACK 9/16" LARGE HEAD SCREW (20 used in this step) www.sauder.com/services 403932 Page 19...
  • Page 20 TOPS (J and K). Use four BLACK 9/16" LARGE HEAD SCREWS (ZZ). NOTE: There are no pre-drilled holes in the SMALL å LOWER MOLDINGS (DD). The SCREWS will tighten into the grooves. BLACK 9/16" LARGE HEAD SCREW (8 used in this step) Page 20 403932 www.sauder.com/services...
  • Page 21 Fasten the FRONT SKIRT (W) to the UPRIGHTS (F and G) å and BOTTOM (M). Use six BLACK 9/16” LARGE HEAD SCREWS (ZZ). Long fi nished edge BLACK 9/16" LARGE HEAD SCREW (6 used in this step) www.sauder.com/services 403932 Page 21...

  • Page 22: Angle Bracket

    UPRIGHTS (F and G) and SMALL BOTTOMS (N). Use eight BLACK 9/16" LARGE HEAD SCREWS (ZZ). Short fi nished edge Short fi nished edge BLACK 9/16" LARGE HEAD SCREW (10 used in this step) Unfi nished edge Page 22 403932 www.sauder.com/services...
  • Page 23 These holes must line up over the UPRIGHTS, TOPS and SHELF. The BACKS (O2) will overlap the CENTER BACK (P2). The BACKS (O2) will overlap the CENTER BACK (P2). For support, place packing foam and magazines here. www.sauder.com/services 403932 Page 23...

  • Page 24: Aaa

    Step 20 Fasten two HINGES (LL) to each DOOR (S). Use eight å BLACK 1/2” FLAT HEAD SCREWS (AAA). BLACK 1/2” FLAT HEAD SCREW (8 used in this step) Page 24 403932 www.sauder.com/services...

  • Page 25: Silver 5/8" Machine Screw

    Fasten a PULL (OO) to the DOOR (S). Use two SILVER 5/8" MACHINE SCREWS (YY). å Repeat this step for the other DOOR (S). å Stop Mounting screw Hinge SILVER 5/8" MACHINE SCREW (4 used for the PULLS) www.sauder.com/services 403932 Page 25...
  • Page 26 To adjust the DOORS in or out (depth), loosen the mounting screw one turn and move the DOORS in or out, as needed. å Tighten the mounting screw after making adjustments. Adjusting screw (horizontal) Mounting screw (depth) (vertical adjustment) Page 26 403932 www.sauder.com/services...
  • Page 27 Once applied, do not try to remove it. - The TV must weigh less than 95 lbs. - The base of the TV must be able to sit completely on this shelf. To cover HIDDEN CAMS (6 used) (28 used) www.sauder.com/services 403932 Page 27...
  • Page 28 No load 7 lbs. (1 used into the top of your unit) 7 lbs. 30 lbs. 20 lbs. 7 lbs. 10 lbs. 7 lbs. 95 lbs. 25 lbs. 20 lbs. 50 lbs. total 10 lbs. 30 lbs. Page 28 403932 www.sauder.com/services...

  • Page 29: Meuble Télévision/Vidéo/Stéréo

    Modèle 403932 Meuble Télévision/Vidéo/Stéréo Utilisez les instructions d’ a ssemblage en français avec les NOUS SOMMES LA POUR VOUS AIDER! schémas étape par étape du manuel d’instruction en anglais. Nous faisons de notre mieux pour nous assurer que votre meuble Chaque étape en français correspond à...
  • Page 30 ÉTAPE 1 ÉTAPE 5 Assembler l’élément sur un sol à moquette ou sur le carton vide Fixer les EXTRÉMITÉS DE SURMEUBLE (C et D) au DESSUS (I). Serrer pour éviter d’endommager l’élément ou le sol. Risque des dégâts ou blessures. Les Enfoncer trente-six EXCENTRIQUES ESCAMOTABLES (GG2) Excentriques Escamotables doivent dans les EXTRÉMITÉS (A et B), les EXTRÉMITÉS DE...
  • Page 31 ÉTAPE 12 ÉTAPE 8 Maintenant, fi xer les MONTANTS (F et G) à la TABLETTE (L) et au Fixer les DESSUS (J et K) à la TABLETTE (L). Serrer six DESSOUS (M). Serrer huit EXCENTRIQUES ESCAMOTABLES. EXCENTRIQUES ESCAMOTABLES. ÉTAPE 13 ÉTAPE 9 Fixer les PETITS DESSOUS (N) aux MONTANTS (F et G).
  • Page 32 ÉTAPE 16 ÉTAPE 19 Fixer la MOULURE INFÉRIEURE (CC) à la TABLETTE (L). Utiliser À l’ a ide d’une autre personne, avec précaution, retourner l’élément sur ses quatre VIS NOIRES TÊTE LARGE 14 mm (ZZ). chants avant. Déplier l’ARRIÈRE (P2) et le placer sur centre l’élément. Fixer les PETITES MOULURES INFÉRIEURES (DD) aux DESSUS (J et K).
  • Page 33 ÉTAPE 21 ÉTAPE 23 À l’ a ide de une autre personne, avec précaution, placer l’élément Enfoncer les MANCHONS EN CAOUTCHOUC (TT) sur les dans sa position verticale. GOUPILLES EN MÉTAL (SS). Insérer les GOUPILLES EN MÉTAL dans les trous choisis dans les EXTRÉMITÉS (A, B, C et D) et les Avant de fi...
  • Page 34 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child.

  • Page 35: Garantie Limitée De 5 Ans

    à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Page 36 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
