6"
Type A
screws
Side channels are
adjustable from 13 ¾"
to 2 ¾" in length by
of side channels.
*all versions
OUTSIDE
Finished
interior
wall
Recommend 2" minimum
clearance to interior
adjacent wall both
sides.
Interior adjacent
wall
NOTE: Remove knockouts from inside out. Knockouts (enclosure) 4 rear, 4 bottom.
Use as required for branch circuit wire entrance.

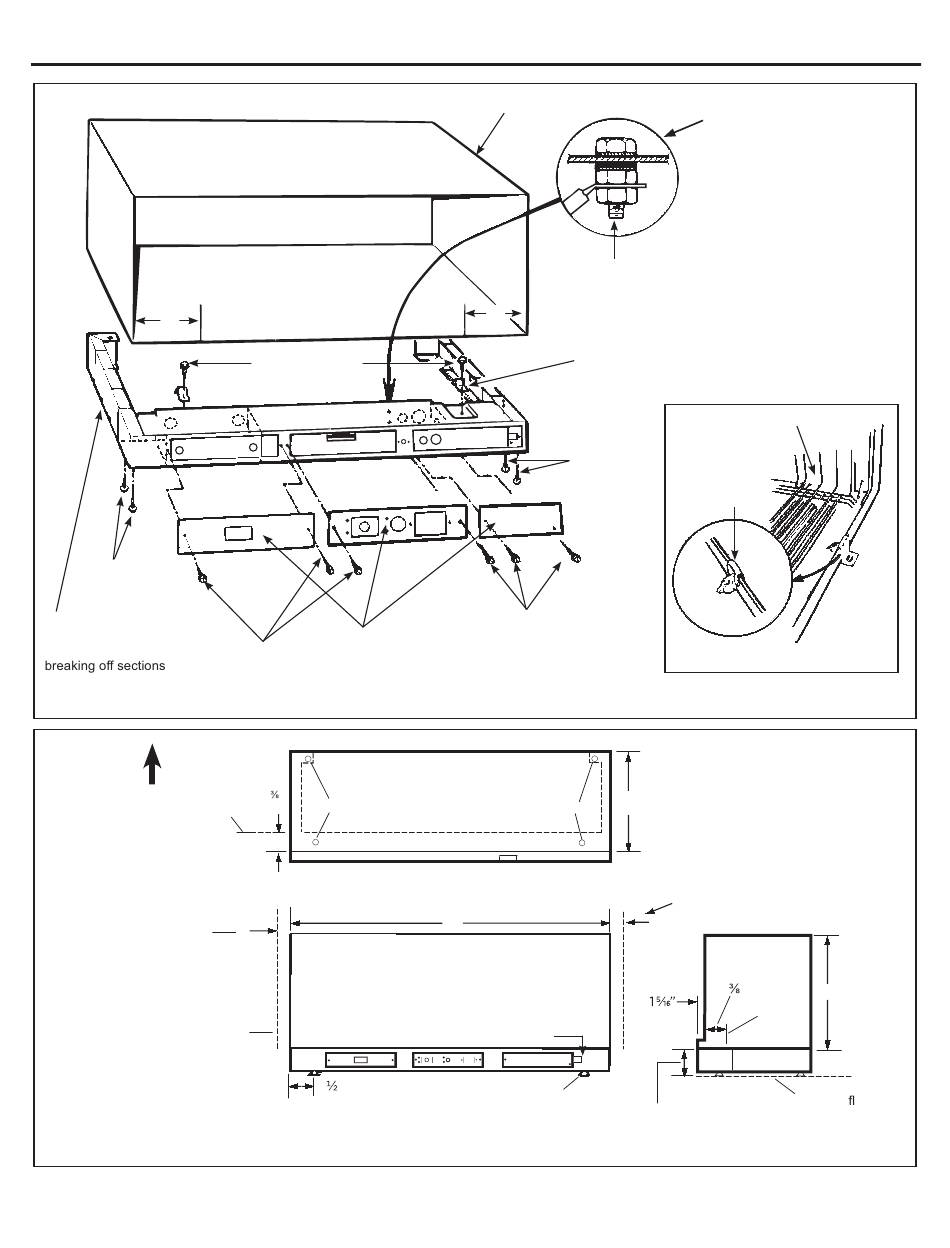

Installation Instructions
Type B screws
Access
Type C
Plates
screws
2 "
Leveling screw
min.
2"
3 "
Metal Sleeve (RAB71*)
Green ground
screw
Type C
6"
Mounting
clip for metal
sleeve
Type D
Type A
screws
Type C
screws
Top view
Leveling screw
42"
Front view
Chaseway knockout
Leveling screw
2
INSTALL GROUND SCREW
Install from the rear and secure
from the inside of the sub-base
using a nut. Secure branch
circuit (or other) ground wire
using a second nut.
INSTALL MOUNTING CLIP
It is important to select the correct
mounting clip for the type of wall
sleeve being installed.
• Painted Steel: Use Type D
•Molded Polymer: Use Type E
•Snap Together: Use Type F
Molded sleeve (RAB77*)
Mounting clip
for molded
sleeve
Type E
13¾"
See note
left side
2"
Side view
2 "
Interior
wall
Finished oor
3" min.,
adjustable
to 5"
16"
