GE RAB24 Instructions D'installation

Before you begin - Read these instructions completely
and carefully. IMPORTANT – OBSERVE ALL
GOVERNING CODES AND ORDINANCES. Note to
Installer – Be sure to leave these instructions with the
Consumer. Note to Consumer – Keep these instructions
with your Owner's Manual for future reference.
NOTE: Handle the case carefully.

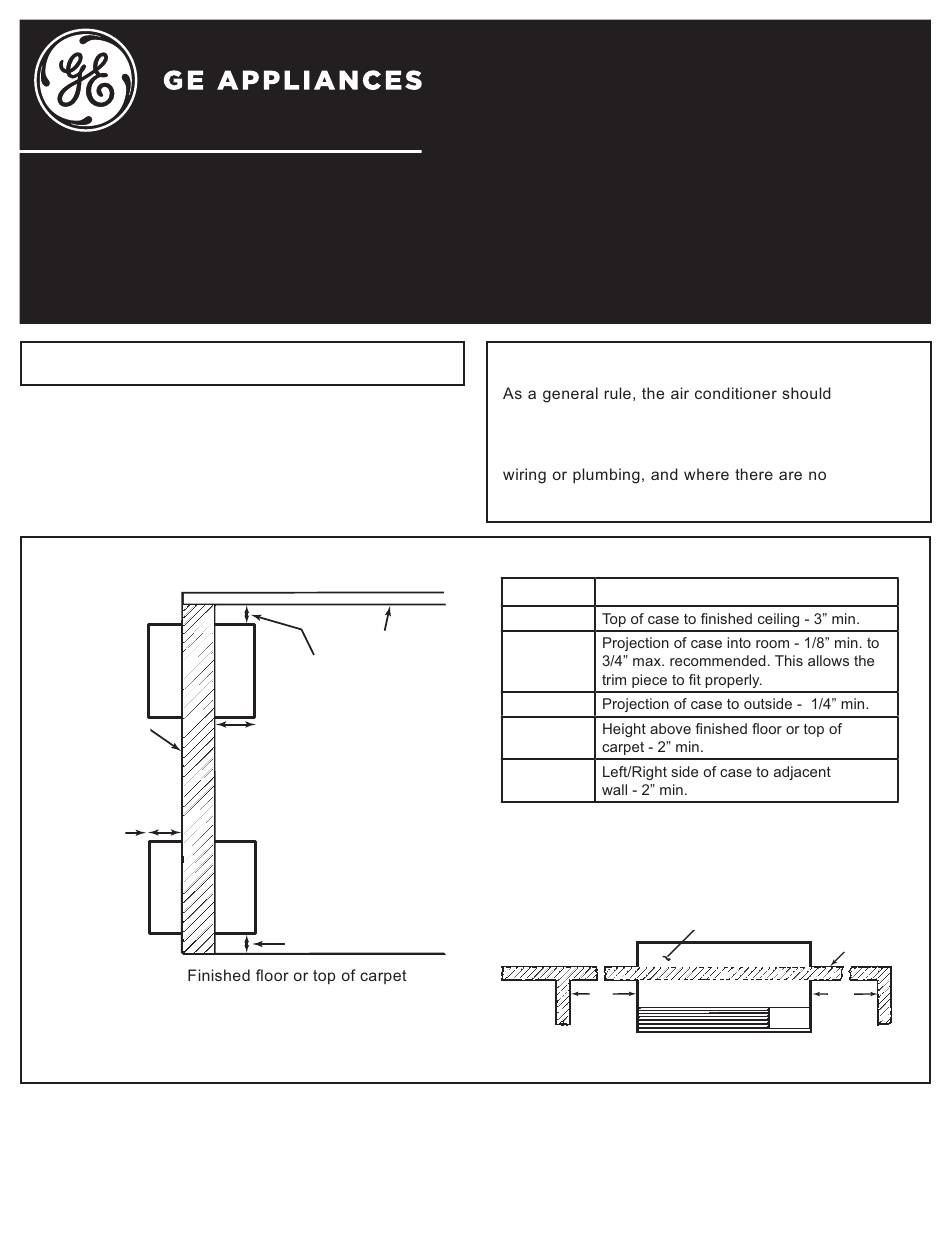

CRITICAL DIMENSIONS
Outside wall
"C"
NOTE: Care should be taken in location of electrical
supply entry in relationship to wall sleeve to ensure
access to power once the unit is installed.
Ceiling
"A"
"B"
Roomside
"D"
Installation Instructions
for your new
RAB24
Standard Steel all Case for 24"
Thru-The-Wall Air Conditioners
CASE LOCATION
be located in an outside wall to ensure proper
distribution of conditioned air. It should be located
in a portion of the wall where there is no electrical
obstructions immediately inside or outside.
Dimensions Recommended Installation Clearance
A
B
C
D
E
INSTALL CASE LEVEL FROM SIDE TO SIDE AND
WITH A SLIGHT TILT FROM FRONT TO REAR
Top of case
"E"
31-5000413 Rev. 0 05-19 GEA
Outside wall
"E"
