f) Connecting the vehicle battery to the speed controller
Place the vehicle on a suitable support (or a
start box) so that the wheels can move freely.
This ensures that you will not lose control of the
vehicle if the wheels move suddenly (e.g. if the
throttle trim is not set correctly).
Do not reach into the engine or hold the wheels
in place.

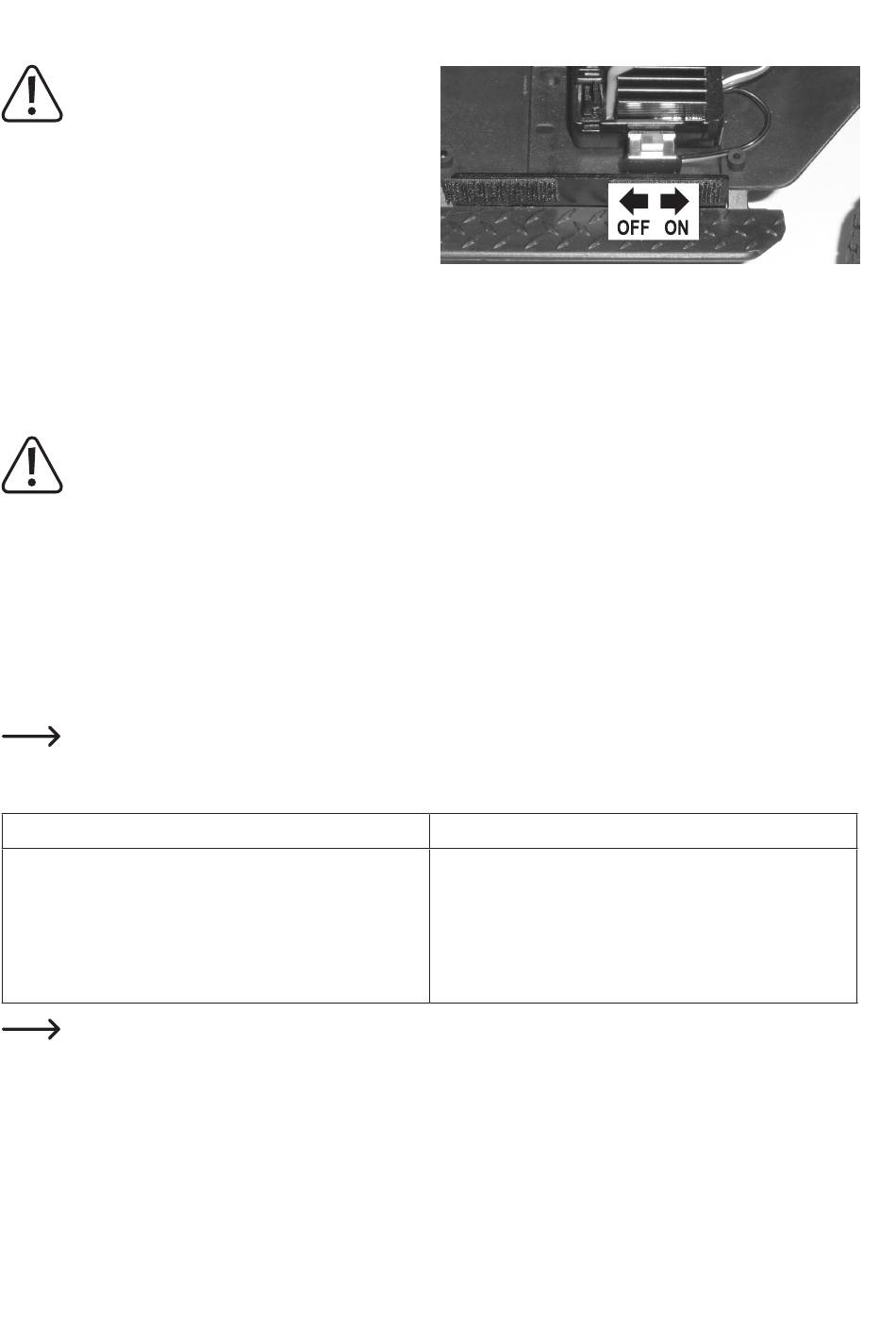

Switch off the speed controller (move the switch to the
"OFF" position).
The on/off switch can be found directly next to the speed controller (refer to the labels on the switch). If you have not
already done so, switch on the remote control (see sections 9. c) and 9. d).
Connect the vehicle battery to the speed controller. Ensure that the battery is inserted in the correct polarity (red
cable = positive/+, black cable = negative/-). Do not use force when connect the battery plug to the speed controller.
Important!
This vehicle is only suitable for use with a 6-cell NiMH battery (nominal voltage 7.2 V) or a 2-cell LiPo bat-
tery (nominal voltage 7.4 V).
Make sure that the cable cannot get into the vehicle's drive components or the steering mechanism. If necessary, use
cable ties to fix the cables in place.
g) Switching on the speed controller
Switch on the speed controller by moving the sliding switch (see image in section 9. f) to the "ON" position. Wait for
a few seconds (leave the throttle/brake lever in the neutral position) until the speed controller has completed a test.
If the speed controller does not detect a signal from the remote control or does not detect that the throttle
lever is in the neutral position, the red LED indicator will continue to flash and you will not be able to use
the speed controller.
Meaning of acoustic signals
• 1x short tone: NiMH vehicle battery detected
• 2x short tones: 2-cell LiPo battery detected
• 1x long tone: Test was successfully completed; the
throttle/brake lever is in the neutral position and the
speed controller is ready for use.
The acoustic signals are generated by the motor.
Check that the throttle and steering functions are working correctly.
h) Attaching and securing the chassis
Place the chassis onto the fixtures and fix it in place it with the clips.
LED status
• LED off: Throttle/brake lever on the remote control is
in the neutral position
• LED flashes: Throttle/brake lever on the remote con-
trol is in the forwards/backwards position
• LED on: Maximum throttle
37
