ELECTRICAL DEVICES

BATTERY

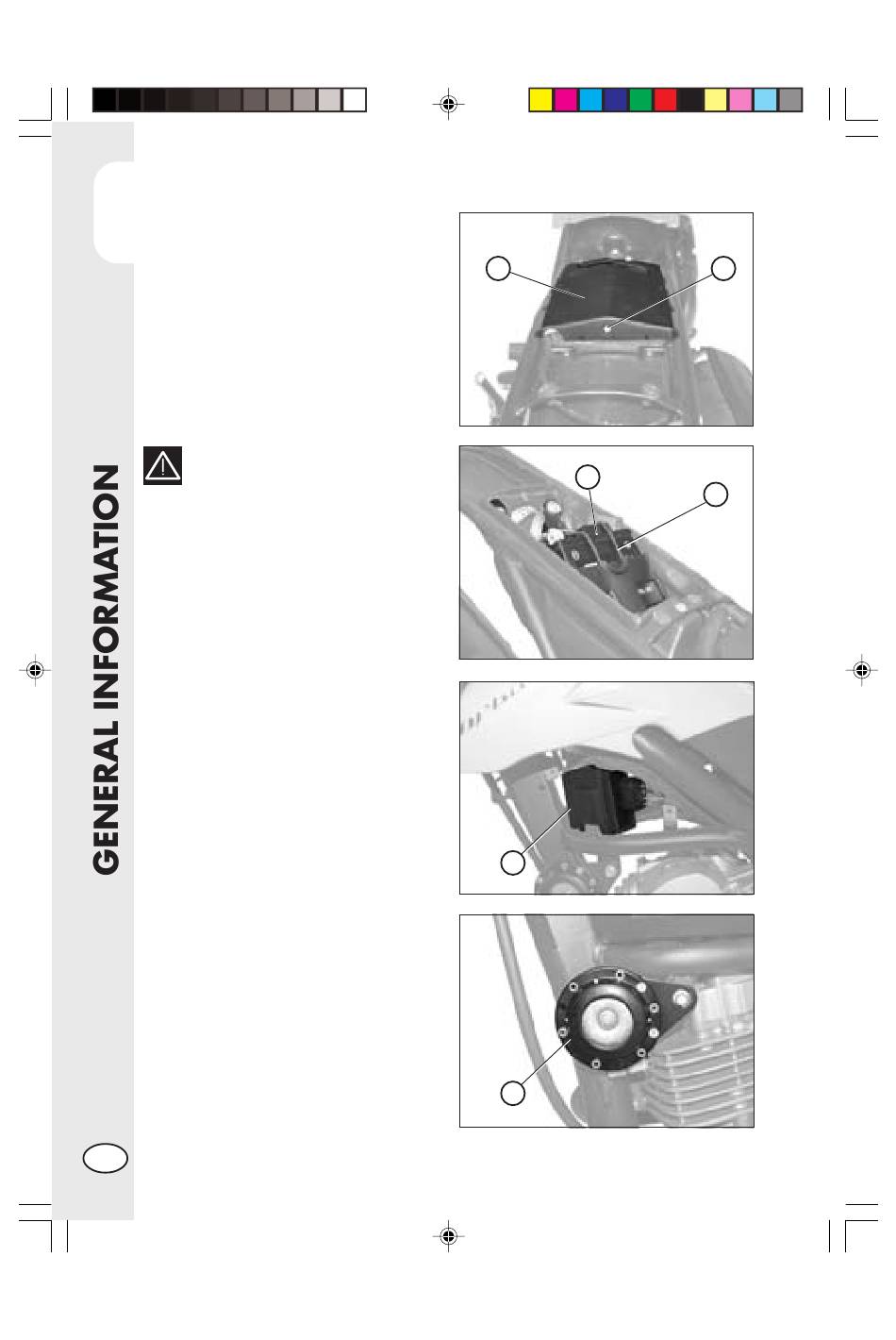

To have access to the battery A, remove
the saddle, as described in " Removal
of body parts " on page 52.
Remove the cover B by loosening the
screw C, release the strap D, disconnect
the cables and remove the battery.
WARNING
To prevent damage to the electrical sys-
tem, never disconnect the cables while
the engine is running.
Reinsert battery (A) in the specially de-
signed recess under the saddle and fas-
ten it using rubber band (B).
Connect the terminal on the black ca-
bles to the battery negative (-) terminal
and the two red cables to the battery
positive (+) terminal, fitting the protec-
tive cap as shown in the figure.
CONTROL UNIT
The control unit E is on the left side of
the motorbike; to have access to the
control unit, remove the left side
underneath the tank, as described on
page 53.
KLAXON
The Klaxon F is at the front, on the left
side of the motorbike.
