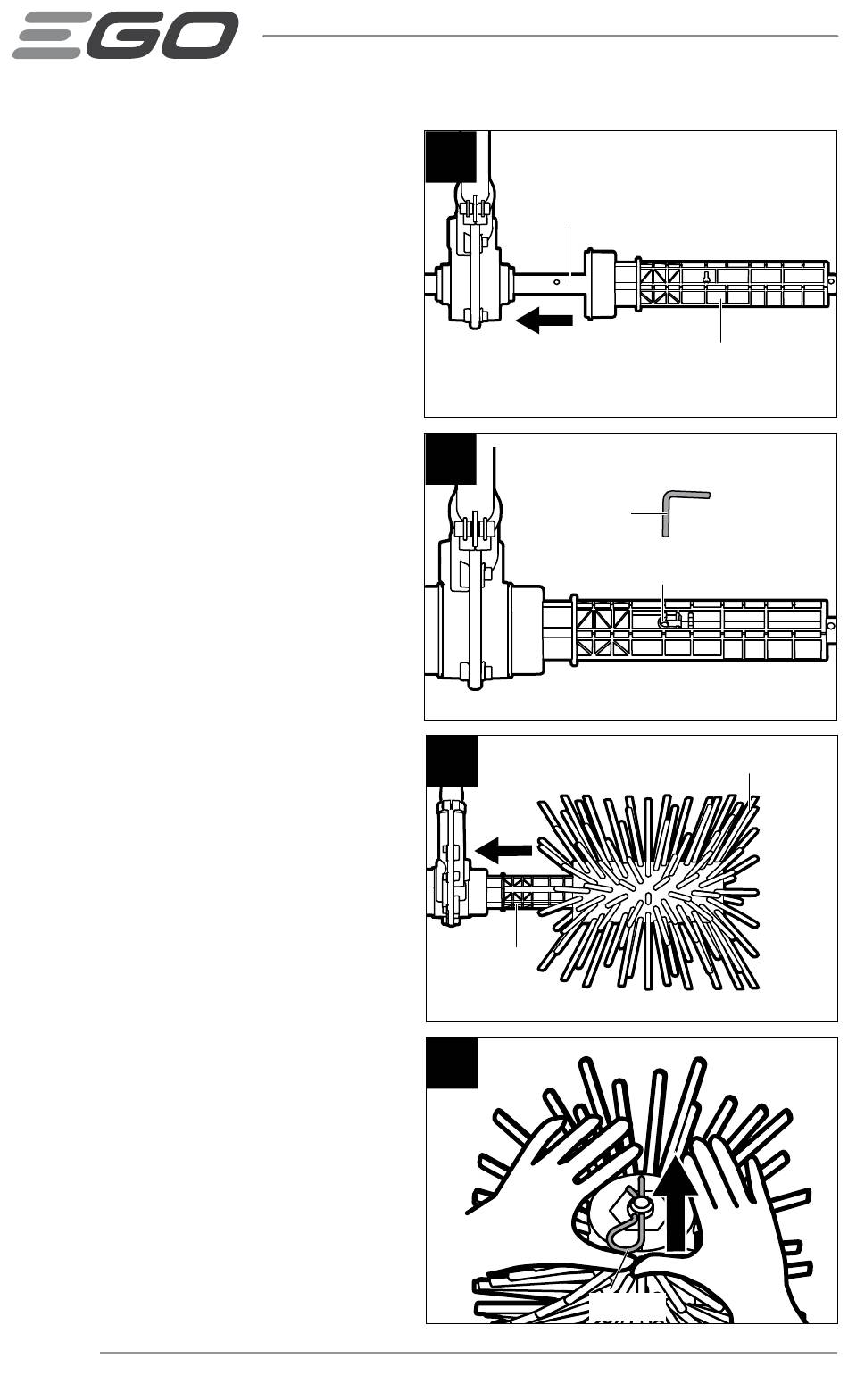

MOUNTING THE BRUSH ROLLERS
1. Push the drive axle onto the driven
shaft (Fig. 5).
2. To secure the drive axle to the
driven shaft, insert the lock pin into
the locking hole.
NOTE:
The lock pin needs to be installed
into place (Fig. 6).
3. Follow the same steps to mount the
other drive axle.
4. Push the brush roller onto the drive
axle (Fig. 7).
5. Insert the hitch pin into the hole at
the end to secure the brush roller to
the drive axle (Fig .8).
6. Follow the same steps to mount the
other brush roller.
16
BRISTLE BRUSH ATTACHMENT — BBA2100/BBA2100-FC
5
Driven Shaft
6
Lock Pin
7
Drive Axle
8
Hitch Pin
Drive Axle
Locking hole
Brush Roller
