HRV installation

• Install the unit close to the
outside wall on which the
supply and exhaust hoods
will be mounted.
• Have a nearby power supply
120 Volts, 60Hz. (power
cord is 3 feet long)
• Mount the unit as level as
possible in order to allow
proper condensate drainage.
• Have access to a water
drain for the condensate of
the unit during defrost.
• Have a certain amount
of heat around the unit
(attic installation is not
recommended).
• Installations close to the
living space, such as closets,
should be design and to
minimize noise or vibration
transfers.
• • Have access for future
maintenance. (10" is
recommended for removal
of core)

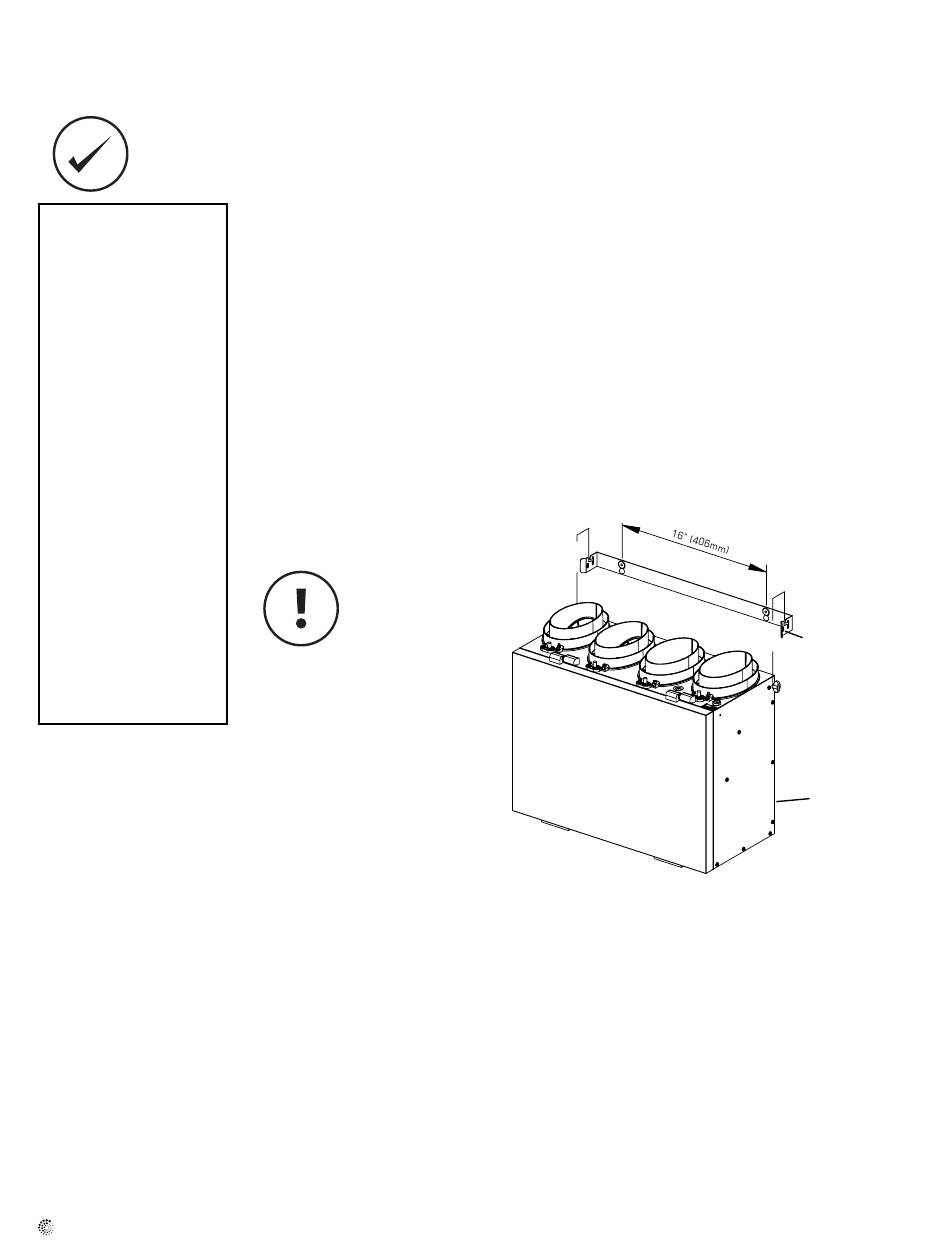

Mounting – wall Mount
1. Attach bracket to wall
2. Lift unit & slide nuts into slots on bracket
3. Tighten screws to secure unit to bracket
4. Ensert the safety screws & place wall bumpers to level off the unit.
* Optional chain hanging kit available.
fantech
Location
The HRV must be located in a conditioned space where it will be possible to conveniently service the unit. Typically
the HRV would be located in the mechanical room or an area close to the outside wall where the weatherhoods will
be mounted. If a basement area is not convenient or does not exist, a utility room may be used.
Attic installations are not normally recommended due to:
• The complexity of the installation
• Freezing conditions in the attic
• Difficulty of access for service and cleaning
• No drain access
Connecting appliances to the HRV is not recommended. These include:
• Clothes dryer
• Range top
• Stovetop fan
• Central vacuum system
• Bathroom exhaust fans unless they are specifically designed for this purpose
These appliances may cause lint, dust or grease to collect in the HRV, damaging the unit.
Connecting any of
these types of
appliances to the
HRV will void your
warranty.
Safety screws (included)
Place bumpers on back
of unit (included)
