Body
Single Blower
MOTOR-2
Dual Blower
Roma Pro Use, Care, and Installation Guide

Wiring Diagram

Black
White
LED
LED
LED
48" models only
RED
MOTOR-1
BODY
Black
Body
ANT
LED
K
RED

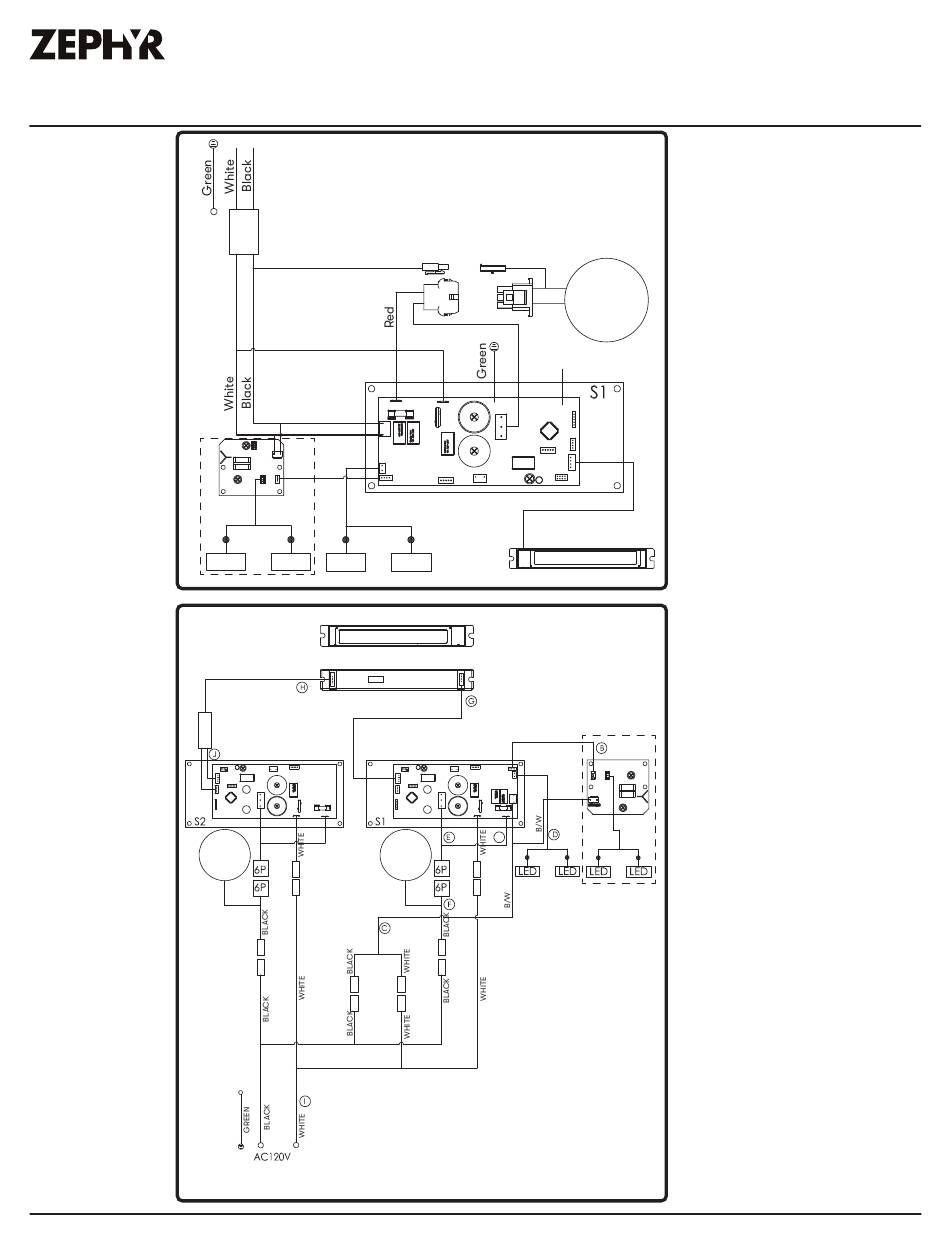

Wiring Diagram
Motor
48"
models only
B. LED PCB wire
C. Power wire for expansion PCB
D. Power wire for expansion PCB
E. Blower connection wire
F. Blower connection wire
G. Control connection wire
H. Dual blower PCB to switch wire
I. Power lead
J. Dual blower connection wire
K. Blower connection wire
