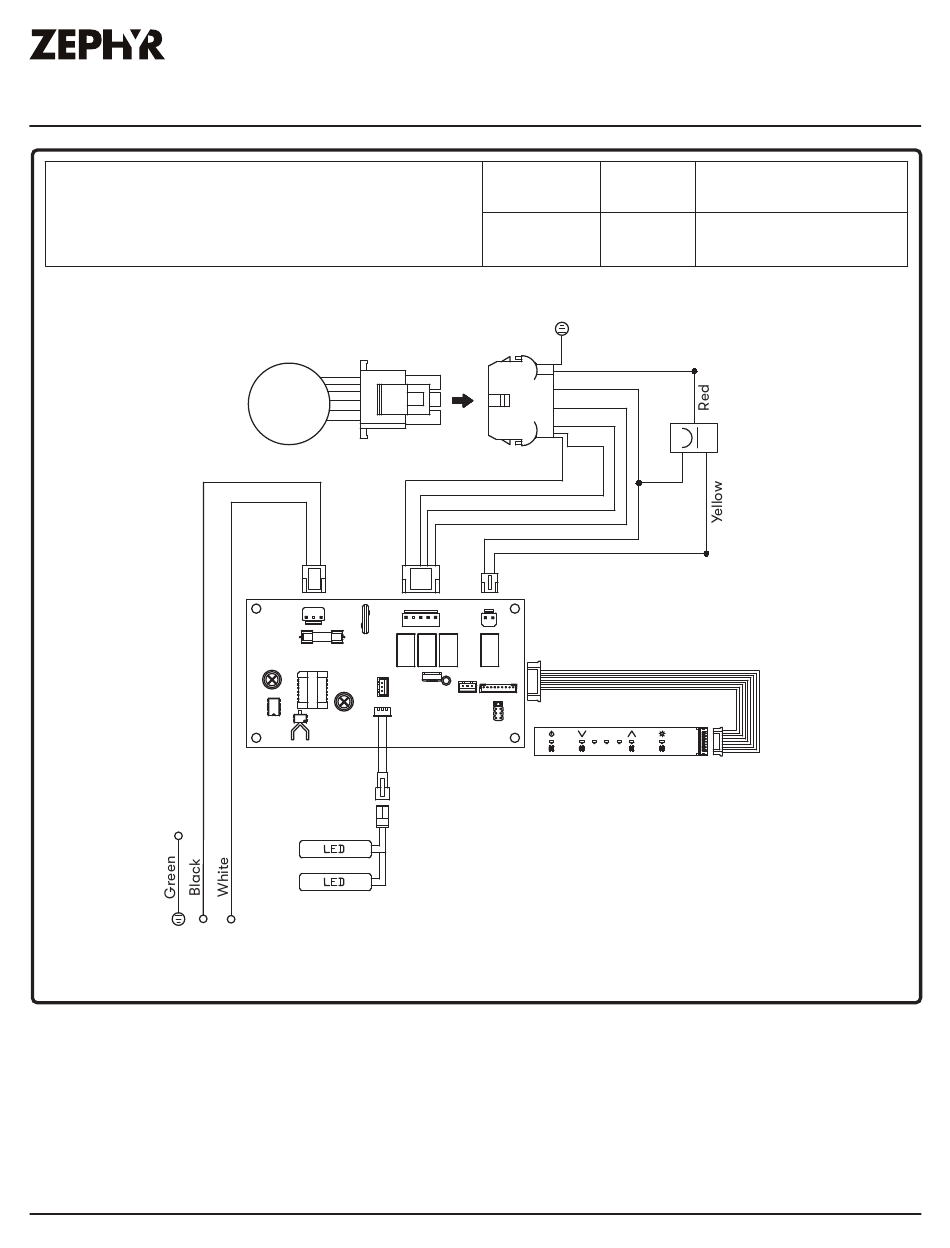

Wiring Diagram

Body
REMARKS: CONDENSER 11+11uF 250VAC FIT AC120V 60Hz
Power consumption shown for default CFM blower configuration
ACT 390 CFM - Fan Max. 292W @2.5A
ACT 290 CFM - Fan Max. 258W @2.1A
Siena Use, Care, and Installation Guide
Motor
Wiring Diagram
Volts Hz
120 60
Green
Body
Red
Yellow
Blue
Brown
Grey
White
Yellow
Yellow
Yellow
Control
Max Amps
4
27
